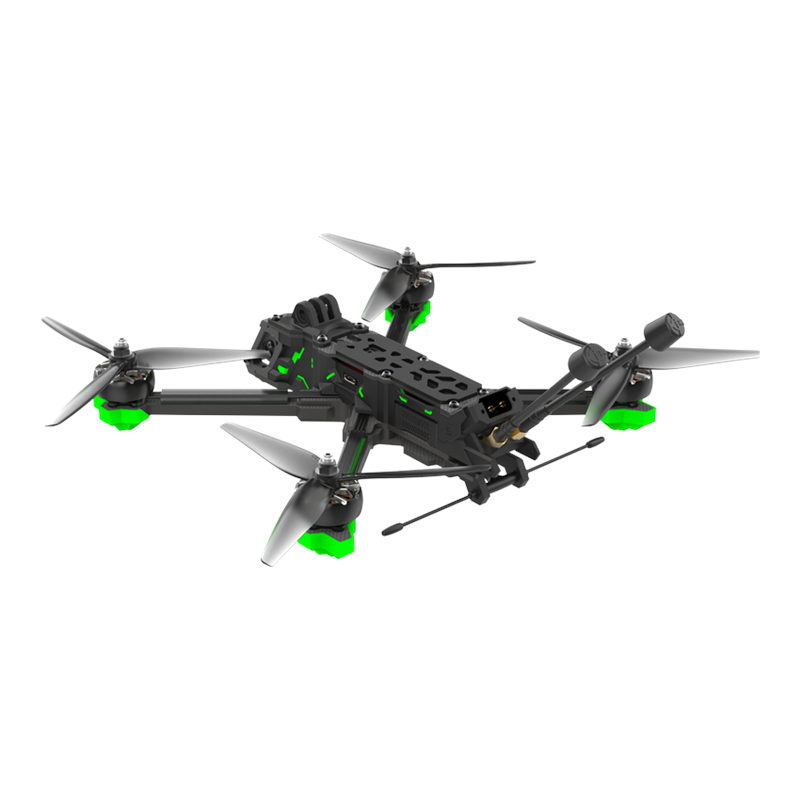

iFlight Nazgul Evoque F6X V2 HD 6S 225mm F7 55A ESC 6 Inch Freestyle FPV Racing Drone with GPS DJI O3 Air Unit Digital HD System
Introduction:
Another breakthrough in FPV visuals from DJI with upgraded frame and electronics. A new standard of Bind-And-Fly drones that are simple to get started with but the durability and performance for enthusiasts. Welcome to the iFlight experience!
A 6 inch drone features longer flight time with bigger battery and more efficiency with the lower KV motors.
Hight Lights:
Smooth and Powerful XING2 Motors
The latest upgrade of our bestseller XING motors, no compromises taken! Durable unibell (one-piece bell) technology, strong titanium alloy shaft with reinforced bell joint, crash resistant 7075 aluminum bell, smooth and long-lasting Japanese NSK bearings, center slotted N52H curved arc magnets and our XING O-ring bushing gap protection.
Latest Nazgul Frame for Maximum Protection
The old days are over, getting your electronics full of dirt and wet grass every time you crash. Our latest frame reduces contamination that could build up on your flight controller or ESCs, preventing failure or short circuits. Strategic airflow to keep your components cool and clean without taking any shortduts in weight or performance. Illuminated side panels and 360-degree TPU protective parts.
DJI O3 HD Air Unit Low-Latency digital transmission
Up to 10 km video transmission range, enjoy a crisp and smooth real-time view in your goggles, even in environments with interference. (Source DJI)
4K Stabilized Video with 155?? Ultra-Wide Angle
Together with high-grade imaging performance, it delivers exceptional visuals that will keep your audience on the edge of their seats. (Source DJI)
Secured Battery Plug with Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We??ve added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Specially Designed Heatsink for DJI O3 HD Air Unit
Improved cooling performance for the high power draw of the DJI O3 video transmitter. We??ve added a custom CNC heatsink for excellent heat dissipation without overheating, even on high power levels.
Specification:
Brand:iFlight
Model:Nazgul Evoque F6X V2 ( HD )
Frame wheelbase:255mm (Squashed X)
FC:BLITZ Mini F722 Flight Controller
ESC:BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video Transmission:DJI O3 Air Unit
Motor:XING2 2506 motors
Prop:6 inch propellers
Weight??475grams
Takeoff Weight??Approx. 680 g
Dimensions (L?GW?GH)??180?G180?G80 mm
Diagonal Distance??120 mm
Max Speed??135 Km/H (Manual Mode)
Maximum Takeoff Altitude??5000 m
Max. Hover Time??Approx. 8 mins
Maximum Flight Distance??5 km
Max Wind Speed Resistance??10.7 m/s (Level 5)
Operating Temperature Range??-10?? to 40?? C (14?? to 104?? F)
Antennas??Dual Antennas
GNSS:GPS + Galileo
| Vidieo Transmission | Product Name??DJI O3 Air Unit Weight??Approx. 290 grams??headband included?? Dimensions (L?GW?GH)??L167 * W1039 * H 813mm Screen Size (single screen)??0.49-inch Resolution (single screen)?? 1920?G1080 Refresh Rate?? Up to 100 Hz Interpupillary Distance Range??56-72 mm Diopter Adjustment Range??-8.0 D to +2.0 D FOV (single screen)??51?? Communication Frequency??2.400-2.4835 GHz?B5.725-5.850 GHz Transmission Power (EIRP)?? 2.4 GHz:< 30 dBm (FCC), < 20 dBm (CE/SRRC/KC) 5.8 GHz [4]:< 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC) Max Video Transmission Bitrate ??50 Mbps Operating Temperature Range??0?? to 40?? C (32?? to 104?? F) Power Input??7-9 V (1.5 A) |
Package Included:
1 x Evoque F6 6S HD Drone
2 x Antennas
1 x Battery pad
2 x Battery strap
Additional information
| Weight | 0.895 kg |
|---|---|
| Receiver: No selection | BNF-DJI, ELRS 2.4GHz, TBS Crossfire Nano RX |
