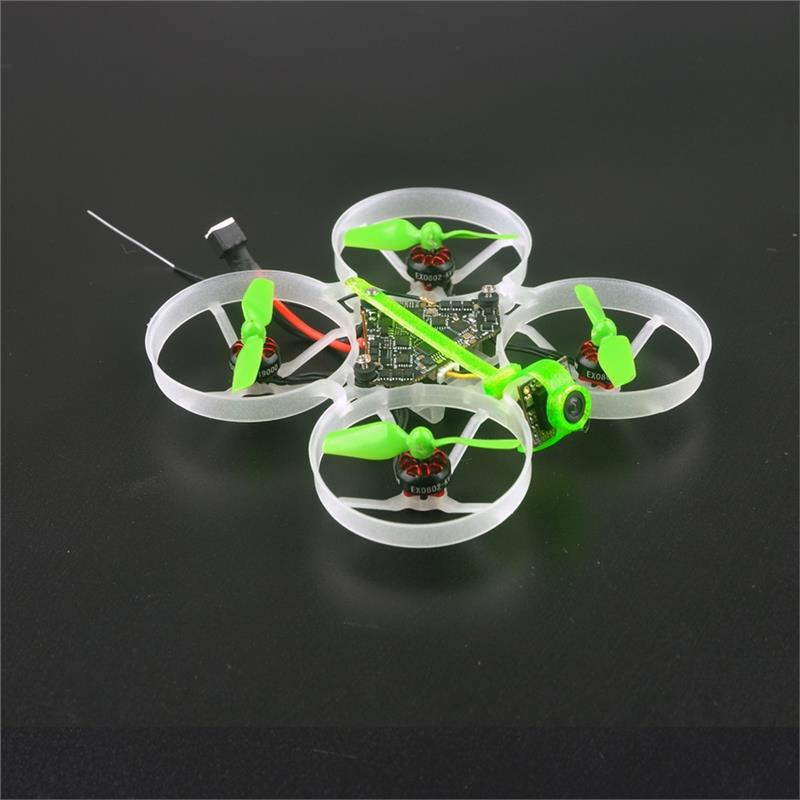

19.5g Happymodel Moblite7 75mm 1S Diamond F4 AIO 5A BB2 ESC Reciver 25/200mW VTX Whoop FPV Racing Drone BNF w/ EX0802 19000KV Unibell Motor Runcam Nano 3 800TVL Camera
Notice:Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.
Notice:
Because the previous materials of the bag are seriously out of stock, happymodel change it in soft fabric material .
At present, our stock are mix, will send randomly.
July 18th, 2021.
Specification:
Brand:Happymodel
Item Name:Moblite7 1S 75mm ultra light brushless whoop
Wheelbase:75mm
Size:97x97x25mm
Weight:19.5g (without battery)
Weight:36g (with Original 1s 650mah Lipo battery )
| Motor | Model:EX 0802 19000KV ( New Unibell Version) Configuration:9N12P Stator Diameter:8mm Stator Length:2mm Shaft Diameter:??1mm Motor Dimension(Dia.*Len):??10.5mm*14.9mm Weight(g):1.7g No.of Cells(Lipo):1S only |
| Flight Controller | (Frsky SPI RX Version) DiamondF4 FR FC Firmware Target:CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:MPU6000 Or ICM20689 or BMI270. (SPI connection) Original whoop size compatible Power supply:1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC |
| Onboard 4in1 ESC | MCU Upgraded to EFM8BB21 Power Supply:1S LiPo/LiPo HV Current:5A continuous, peak 6A (3 seconds) Support BLHeliSuite programmable Factory Firmware:O_H_50_REV16_8.HEX Default Protocol:DSHOT600 |
| Onboard Frsky SPI D8 receiver Version | SPI BUS Receiver Frsky D8 Compatible Compatible Non EU transmitter D8 model Channels:8CH Failsafe Support No ground interference ( Transmitter and receiver 1 m from the ground):200m~300m |
| Onboard Flysky Receiver Version | SPI BUS Receiver Protocol:AFHDS and AFHDS-2A Switchable Channels:8CH (AFHDS) or 14CH (AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground):100~200m Failsafe Support |
| Onboard 5.8G 40CH 25-200mW VTX | Output Power:25mw~200mw switchable Frequency:40CH Input Voltage:3.3V 5.5V Current Consumption:300mA (type) Frequency:5.8GHz 5bands 40 channels (include Race band) Smartaudio Ready |
| Runcam Nano 3 FPV Camera | Model:RunCam Nano 3 Image Sensor:1/3′ CMOS Horizontal Resolution:800TVL Lens:2.1mm(M8) FOV 160?? Signal System:PAL/NTSC Non Switchable S/N Ratio:>50dB Electronic Shutter Speed:Auto Auto Gain Control (AGC):Auto Min. Illumination:0.01Lux@1.2F D-WDR:Auto Day/Night:Color Power:DC 3-5.5V Current:110mA@5V 120mA@3.3V Housing Material:ABS Net Weight:1.2g Dimensions:L14mm*W14mm*H9mm |
| Lipo Battery | Capacity:650mAh Voltage:3.8V Continuous Discharge Rate:30C Instantaneous Discharge Rate:60C Size:60mmx18mmx8mm Weight:16g Connector:PH2.0 Quantity:2 PCS |
Features:
– The lightest 1s 75mm brushless whoop
– Powerful and efficiency
– The lightest 1s AIO 5IN1 F4 flight controller
– New Unibell EX0802 brushless motors
– Low profile Canopy design
– VTX power switchable 25mw~200mw
Package Included:
1 x Happymodel Moblite7 75mm Whoop RC FPV Racing Drone
Option1:1 x DiamondF4 FR built-in SPI Frsky Receiver
Option2:1 x DiamondF4 FS built-in SPI Flysky Receiver
4 x EX0802 KV19000 Unibell Brushless Motor
1 x HQPROP 40MMX2 Propeller(4cw+4ccw)
1 x Runcam Nano 3 FPV Camera
1 x Built-in 5.8G 40ch 25mw-200mw VTX
2 x 1S 650mah Lipo Battery
1 x Propeller Disassemble Tool
1 x Screwdriver

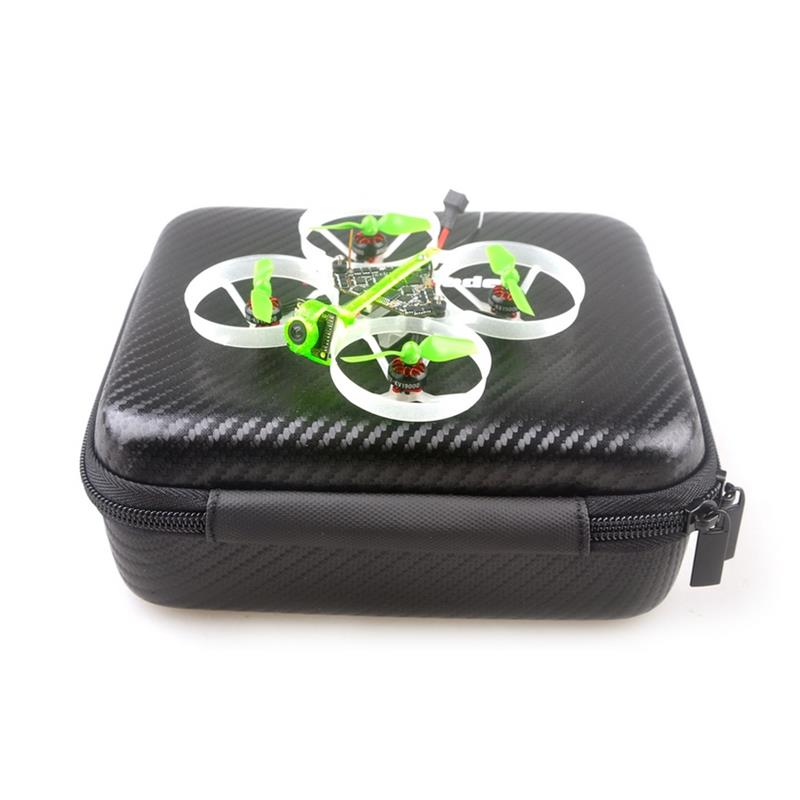

1 x Happymodel Carry Case
Additional information
| Weight | 0.0195 kg |
|---|---|
| Receiver: No selection | Compatible Frsky Receiver |
