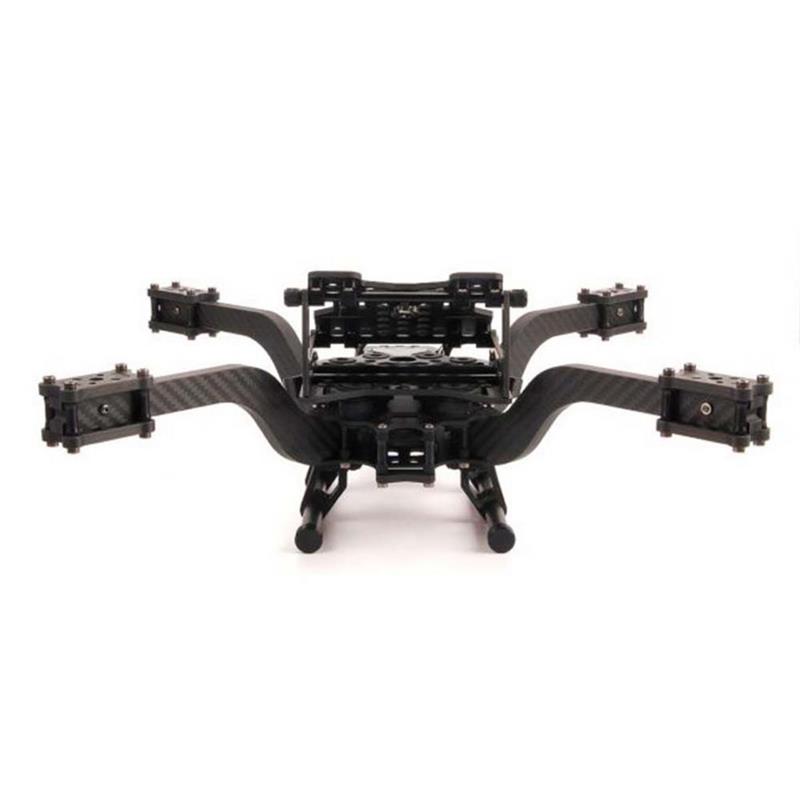

Holybro Kopis Cinematic X8 396mm Wheelbase Frame Kit ARF with T-Motor F90 KV1300 Motors & Gemfan 7040 7 Inch 3-Blade Propellers Payload 1.5KG Compatible DJI Air Unit & Caddx Vista HD Digital System
Description:
Holybro kopis cinematic X8 is a powerful and heavy-duty model designed for professionals. With a full carbon fiber frame which provides a good shock absorption performance, Kopis Cinematic X8 offers a perfect platform with adjustable installation angle available from 0 to 25 ??. for both SLR and HD cameras such as Comodo; zcam-e2; Sony a7s3 and Panasonic S5, etc. With redundant configurations of ESC and motor supported, best performance and security are both ensured. DJI FPV air unit digital VTx system installation seat has been reserved.
Two pieces of 5mm carbon fiber arms provide reliable structural support for this powerful quad. We also have new vesion Holybro KAKUTE F7 V1.5, KAKUTE F7 HDV,KAKUTE F7 Mini V3 which are compatible with X8.
Specification:
Brand:Holybro
Item Name:Kopis Cinematic X8 Frame Kit +Motor +Propellers
Wheelbase:396mm
Arm:16mm wide x 10mm thick (with 5mm thick carbon fiber boards overlaid)
Landing gear:TPU bracket combined with 10 mm carbon fiber tube
Compatible with DJI Air Unit & Caddx Vista HD Digital System
Compatible with multiple mounting holes:30.5?G30.5mm & 20x20mm
Professional camera installation supported:Komodo, ZCAM, BMPCC, etc
Camera platform shock absorption structure with 10 silicone damping balls
Spacing between top and bottom plates:22mm
Camera platform elevation:0 ~ 25 ?? Adjustable
Weight:1124g
Frame weight:640g
Gemfan 7040 7 Inch 3-Blade Propellers
Material:PC
Weight:7.9G
Center Hole Inner Diameter:5mm
Paddle Disk Diameter:178.43mm
Center Thickness:7.5mm
Maximum Blade Width:18.24mm
Adaptation Motor:2206-1500KV (tested motor)
T-Motor F90 KV1300 Motors
Size:??33.4*34.7mm
Weight:46.6g
Wire Specifications:20#AWG 230mm
Axle Diameter:4mm
Non-load Current(10V):0.95A
Internal Resistance:76m??
Slot:12N14P
Rated Working Voltage(Lipo):5-6S
Maximum Current (60s):45.1A
Maximum Power(60s):1059W
Recommended(Not included)??
FC??KAKUTE H7
ESC??Tekko32 F4 4in1 45A ESC / Tekko32 F4 Metal 4in1 65A ESC
VTx??DJI FPV Air Unit / CADDX Vista Kit
Battery Recommendation:6s 5000mAh
Payload Capacity:1.5kg
Flight Time:5 minutes (with 1.5kg payload)
11 minutes (without payload)
Package Included:
1x Kopis Cinematic x8 Frame Kit
8x T-motor F90 KV1300 Motors
12x Gemfan 7040 7 Inch 3-Blade Propeller
Note:
Flight time was tested using 6s 5000mAh battery with 2806.5 1300kv motor & 7040 props. Flight time may vary depending on payload and battery size.
Additional information
| Weight | 1.539 kg |
|---|
