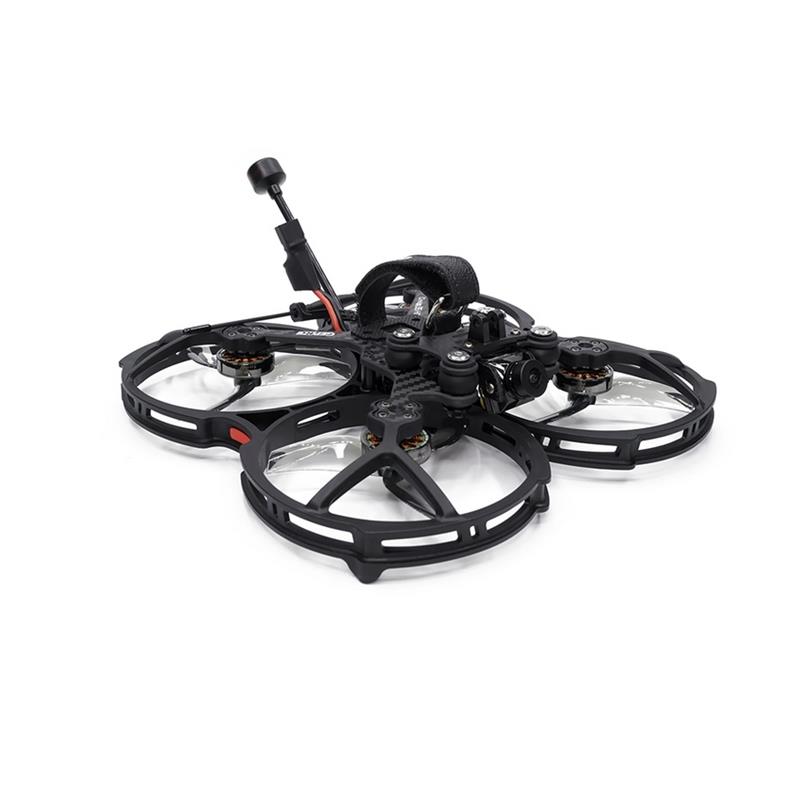

Geprc Cinelog35 Analog 142mm F722 AIO 35A ESC 4S / 6S 3.5 Inch FPV Racing Drone PNP BNF w/ 600mW VTX Caddx Ratel 2 1200TVL Camera

Geprc Cinelog35 Analog 142mm F722 AIO 35A ESC 4S / 6S 3.5 Inch FPV Racing Drone PNP BNF w/ 600mW VTX Caddx Ratel 2 1200TVL Camera
Will update photos asap.
Introduction:
The CineLog35 HD developed by GEPRC specifically for GoPro HD camera mounting completely is now officially released, There are two versions currently available:HD VISTA Nebula Pro and Analog.
CineLog35 is improved and developed on the basis of CineLog30. Integrated protection guard design, the overall structure is firmer and durable. We adopts latest GEP F722-35A-AIO FC with higher calculation speed and high efficiency, the 5 UART Ports bring perfect performance and sufficient extended function. and the electronic system runs more stable.
CineLog35 equips with VISTA HD VTX and the Nebula Pro camera, and the picture quality is extreme clear and clean. Upgraded power system, 2004 motor with D90-3 propeller has stronger power output. It comes with a 3D Print mount for Gopro 9 & Gopro 10. and the Incidental base can carry Insta360 GO2 camera/ Naked Hero 8/Caddx Peanut camera.
Specification:
Brand Name:Geprc
Model:Cinelog35 Analog
Frame:GEP-CL35
Wheelbase:142mm
Top plate:2.5mm
Bottom plate:2.0mm
Arm plate:3.5mm
FC system:GEP-F722-35A AIO
MCU:STM32F722
IMU:MPU6000(SPI)
OSD:BetaFlight OSD w/AT7456E chip
ESC:BLheli_S 35A
VTX:600mW VTX
Camera:Caddx Ratel2
Propeller:D90-3
Antenna:Momoda MMCX RHCP 195mm Antenna
Motor:GR2004-1750KV (6S) / GR2004-2550KV (4S)
Weight:220.5g (CineLog35 Analog 4S PNP)
Recommend Lipo Battery ( NOT Included):4S 8501500mAh ; 6S 850-1100mAh Lipo
Package Included:
1 x CineLog35 Analog Quadcopter
2 x D90-3 propellers (pairs)
1 x Battery strap 15x200mm
2 x Battery Silicone Pads
2 x Landing Pads
4 x 15 degrees damping rings
1 x 3D print mountings combination
1 x Screw combination
1 x Screwdriver combinations
1 x OSD menu board
1 x Antenna fixed tube
