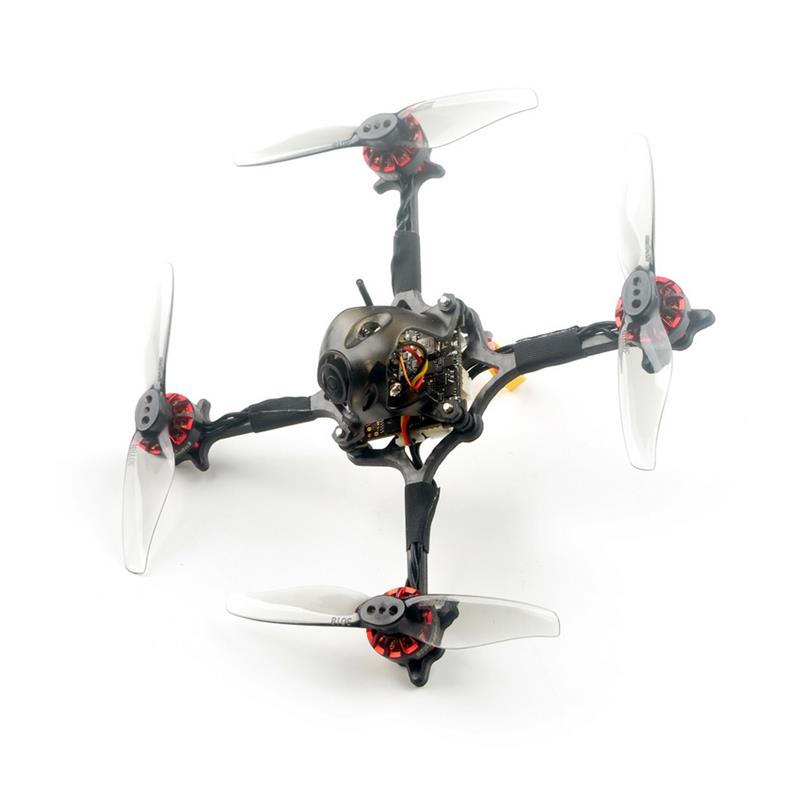

41g Happymodel Crux3 115mm CrazybeeX FR V2.2 F4 AIO ESC 25/200mW VTX 1-2S 3 Inch Toothpick FPV Racing Drone BNF w/ 1202.5 Motor Caddx ANT 1200TVL Camera Support Insta360 Go
Notice:Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.
Specification:
Brand Name:Happymodel
Model:Crux3
Item Name:115mm F4 OSD 1-2S 3 Inch Toothpick FPV Racing Drone
Wheelbase:115mm
Size:97x97x35mm (without propellers)
Optional Receiver Version:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Internal SPI DSM2/DSMX version(Compatible with Spektrum or Multiprotocol DSM2/X radio)
Weight:41g (without battery)
Recommend Lipo Battery:2s 350mah/400mah/450mah/520mah Battery ( NOT Included)
| EX1202.5 6400KV Motor | Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:??1.5mm Motor Dimension(Dia.*Len):??14*14.5mm Weight:4.4g No.of Cells(Lipo):1-2S |
| Gemfan 3018 2-Blade Propeller | Center Thickness:5.5mm Prop Diameter:76.5mm Center Hole diameter:1.5mm |
| CrazybeeX FR V2.2 F4 Flight Controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:MPU6000 or ICM20689 or BMI270 (SPI connection) Board Size:28.5×28.5mm Power Supply:1-2S battery input (DC 2.9V-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver or no receiver Built-in 5V 1A BEC (Frsky SPI RX Version) CRAZYBEEX FR V2.2 FC Firmware target:CrazybeeF4FR (Flysky SPI RX Version) CRAZYBEEX FS V2.2 FC Firmware target:CrazybeeF4FS (DSM2/X SPI RX Version)CRAZYBEEX DXS V1.0 FC firmware target:CrazybeeF4DXS (External Frsky RXSR Version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX (External TBS CRSF NANO Version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX |
| Onboard 5A BL_S 4in1 ESC | MCU upgraded to EFM8BB21 Power supply:1S LiPo/LiPo HV Current:5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware:S_H_50_REV16_7.HEX Default protocol:DSHOT600 |
| Onboard Frsky SPI D8 Receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels:8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground):200m~300m |
| Onboard Flysky SPI receiver Version | Protocol:AFHDS and AFHDS-2A Switchable Channels:8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground):200~300m Failsafe support |
| Onboard DSM2/X SPI receiver Version | SPI BUS receiver DSM2/DSMX compatible Channels:Max 12ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground):200m~300m RSSI enable (show on the goggles) |
| Onboard 5.8G 40CH 25/200mW VTX | Output power:25mw~200mw switchable Frequency:40CH Input voltage:3.3V 5.5V Current consumption:300mA(type) Frequency:5.8GHz 5bands 40 channels With Race band Smartaudio ready |
| Caddx ANT 1200TVL Camera | Image Sensor:1/3′ CMOS Sensor Horizontal Resolution:1200 TVL TV System:NTSC or PAL Switchable IMAGE:4:3 Synchronization:Internal Electronic Shutter:PAL:1/50~100,000; NTSC:1/60~100,000 S/N Ratio:>52dB (AGC OFF) Video Output:CVBS Lens:1.8mm Min. Illumination:0.001Lux@F1.2 Auto Gain Control:YES BLC:YES WDR:Global WDR DNR:3D DNR Dimensions:14*14mm(with bracket to 19*19mm) Wide Power Input:DC 3.7-18V Work Temperature:-20??~+60?? Weight:2g (N.W.) |
Features:
– 41gram 1-2s brushless Toothpick drone
– New AIO 4in1 CrazybeeX flight controller
– CADDX ANT 1200tvl Camera
– New 1202.5 brushless motor
– XT30 connector
– Compatible with Insta360 Go Camera ( this camera is NOT Included, you can add it by yourself.)
Pacakge Included:
1x Crux3 Frame and Canopy
1x Optional Receiver
1x F4 Flight Controller AIO 5A ESC Board
1x 5.8G 25-200mW VTX ( built-in Flight controller)
4x Happymodel EX1202.5 6400 KV Motor
4x Gemfan 3018 Propeller CW
4x Gemfan 3018 Propeller CCW
1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1x Screw Driver
1x Propeller Disassemble Tool
1x Happymodel Handbag
Additional information
| Weight | 0.042 kg |
|---|---|
| Receiver: No selection | Compatible DSM2/DSMX Receiver, Compatible Flysky Receiver, Compatible Frsky Receiver |
