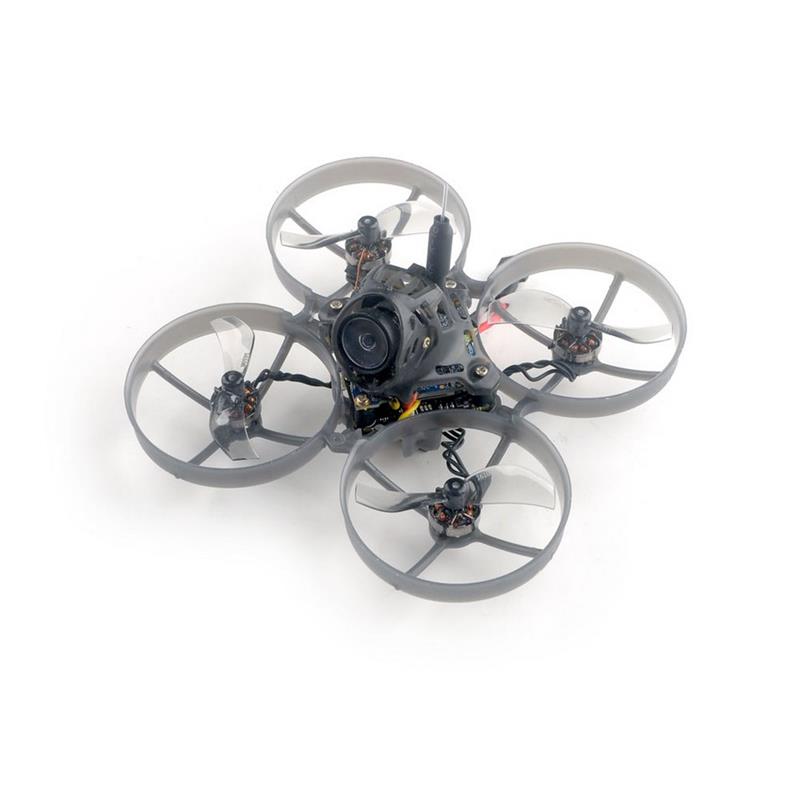

Happymodel Mobula7 1S HD 75mm Micro Whoop FPV Racing Drone ELRS BNF w/ 0802 20000KV Motor RunCam Split3-Lite 1080P Camera DVR
Introduction:
Mobula7 1S HD version is a light and efficiency 75mm brushless whoop which provide 1080P HD video record function. A highly integrated AIO Flight Controller, supports ESC with a maximum current output of 12A. We added blackbox for this 1s 75mm HD recorder whoop. Now it could support gyroflow. Although the external blackbox is not install perfectly and insert SD card is not friendly to most of the people, however we still think it’s really excited for this small whoop could record a video with gyroflow steady and keep safe flying .
Features:
X12 5-IN-1 AIO flight controller
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
1080P HD Video record
Blackbox Ready support GYROFLOW
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah batteries (Not include)
Specifications:
Brand Name:Happymodel
Item Name:Mobula7 1S HD 75mm Micro FPV whoop drone
Wheelbase:75mm
Size:99mm*99mm*45.5mm
Weight:33g
Receiver option:SPI 2.4GHz ELRS V2.0 / SPI Frsky D8/D16
| Motor | Mode:RS0802 KV20000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:??1.5mm Motor Dimension(Dia.*Len):??10.5mm*13.5mm Weight(g):2.0g No.of Cells(Lipo):1S only |
| Propeller | Weight:0.24g Material:PC Pitch:1 inch Props Dia:40mm Center Thickness:5mm Center Hole Dia:1.5mm |
| Flight Controller | X12 ELRS V2.0 flight controller built-in ELRS 2.4G receiver Target:CRAZYBEEF4SX1280 X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target:CRAZYBEEF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:ICM20689(SPI connection) Mount hole size:25.5mm*25.5mm Power supply:1S battery input (DC 2.9V-4.35V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in 5.8G OpenVTX 0mw~400mw Built-in ExpressLRS 2.4G,Frsky D8/D16 Built-in voltage detection Built-in current sensor |
| Onboard 4in1 ESC | Power supply:1S LiPo/LiPo HV Current:12A continuous peak 15A (3 seconds) Support BLHeliSuite programmable Factory firmware:Z_H_30_REV16_7.HEX Default protocol:DSHOT300 Support Bluejay firmware When use Blujay firmware with 48khz, should set startup power to 1100/1200 |
| Onboard SPI ExpressLRS 2.4GHz Receiver | Packet Rate option:50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version:V2.0 RF Frequency:2.4GHz Antenna:Enameled copper wire length 30mm Telemetry output Power:<12dBm Receiver protocol:SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn??t flash separately ExpressLRS firmware |
| Onboard Frsky SPI D8/D16 receiver Version | Packet Rate option:50Hz/150Hz/250Hz/500Hz ExpressLRS Firmware version:V2.0 RF Frequency:2.4GHz Antenna:Enameled copper wire length 30mm Telemetry output Power:<12dBm Receiver protocol:SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module Couldn??t flash separately ExpressLRS firmware |
| Onboard 5.8g OPENVTX | Firmware version:OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels:48ch Transmitting Power:0/RCE/25mw/100mw/400mw Power supply:DC 5V Current (5v):<650ma (400mw) |
| Runcam Split3-Lite | Model:RunCam Split3-Lite Field of View(FOV):Recording FOV 165??(FPV FOV:165 ?? @16:9, 130 ?? @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format:MOV Image Resolution:2 MP TV Mode:NTSC (720*480)/PAL (720*576) Switchable Interface:JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance of Installation:25.5*25.5mm PCB Size:29*29mm Lens Module Size:14*14mm Lens Specs:M9 Power Input:DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.) Working Current:450mA @5V |
| External Blackbox | Size:18*15.5*4.5 With Built-in Voltage booster module Weight:1.5gram SD Card support max to 32GB SD Card need to use FAT32 Format Notes:Need to careful to insert the TF SD Card , and don’t pull it out while install the battery. |
Package Included:
1x Mobula7 1S 75mm whoop Drone Frame (Mobula7 v4 frame)
1x Flight Controller AIO ESC Receiver vtx
4x RS0802 KV20000 brushless motor
2x Gemfan 1610-2 bi-blade propellers CW
2x Gemfan 1610-2 bi-blade propellers CCW
1x Runcam Split3-Lite Camera
1x External Blackbox Module support gyroflow
1x Propeller disassemble tool
1x 1S series balance charging board
Additional information
| Weight | 0.1 kg |
|---|---|
| Receiver: No selection | 2.4GHz ELRS SPI, Compatible Frsky Receiver |
