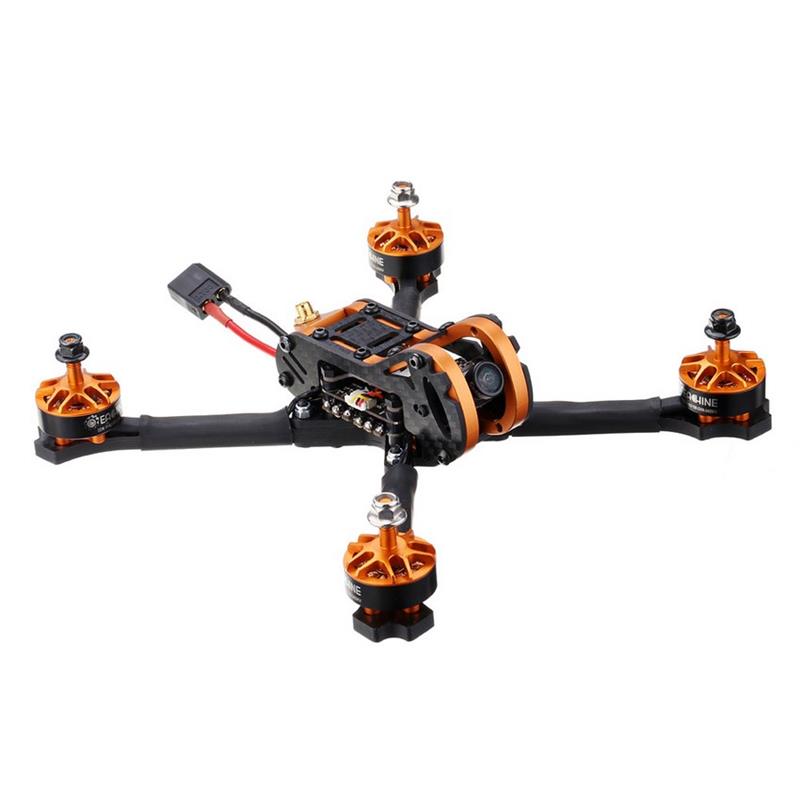

Eachine Tyro109 210mm DIY 5 Inch FPV Racing Drone PNP w/ F4 30A 600mW VTX Runcam Nano 2 FPV Camera
Notice:It is DIY Version that comes unassembled.
Upgrade Diffirence from Tyro99
1. Motor is upgraded from 2150KV to 2400KV. ( More details refer to motor’s specification)
2. FPV Transmitter is installed into the drone and in new design. Not exposed outside like tyro99.
3. FPV Camera is Caddx Turbo Eos2 1200TVL HD Camera
4. Upgrade the anti-vibration insulated column standoofs.
5. 5040 4-blade propellers
6. Antenna’s length was shorten in 50mm.
Specification:( Manual )
Brand Name:Eachine
Model:Tyro109
Version:PNP ( Without Receiver)
Naked Weight:311g
Take OFF Weight:400g approxi.
| Item | Specification |
| 210mm Frame Kit | Wheel base:210mm Frame arm thickness:5mm Bottom plate thickness:2mm Side plate thickness:2mm Frame kit material:3K carbon fiber & 6065 aluminium |
| 2206 2400KV Brushless Motor | KV:2400KV Idle current (Io/10V):1.35A Lipo cell:3-5S Weight:31g Max continuous current:35A Max continuous power:560W Max thrust:1180g (4S/5′) Configu-ration:12N/14P Motor resistance (RM):0.0536 ?? Stator diameter:22mm Stator thickness:6mm Motor diameter:27.7mm Motor body length:19.2mm Overall shaft length:34.2mm Prop adapter shaft:M5 Bolt holes spacing:16mm Bolt thread:M3 Propeller:5-6 inch |
| 4 IN 1 30A BLHeli_S ESC | Continuous current:30A Burst Current:40A(10S) Input voltage:2-5S BEC:5V 2A BEC Main control chip:48Mhz EFM8BB2 Firmware:BLHeli_S supports Dshot600 MOS:5*6 |
| New F4 Flight Controller ( More Details, Click here) | Main control chip:STM32F405 mpu6500 or BMI270. Barometer:NO Power supply:5V Integrated OSD Onboard LC filter PID cycle rate & gyroscope refresh rate up to 32Khz Supports BetaFlight / inav racing firmware |
| Runcam Nano 2 FPV Camera | Brand name:Runcam Model:Nano 2 Image Sensor:1/3′ CMOS Horizontal Resolution:700TVL Signal System:NTSC 4:3 Net Weight:3.2g Dimensions:L14mm*W14mm*H16mm |
| XF5804PRO VTX | Model:XF5804PRO Input voltage:7-26V Onboard BEC output:5V Number of launch channels:40 Transmit power:25/100/200/600mW Video format:PAL/NTSC Operating temperature: Control Protocol:TBS SmarAudio Antenna Connector:MMCX Wiring method:SH1.0-6P/pad Mounting hole:30.5*30.5mm Size:36*36mm |
| Pagoda Antenna | Gain:5dBi Max. Power:50w Connector:RP-SMA Color:Black Weight:8.6g Length:78?I3mm Max. Dia.:22.4?I1mm Min. Dia.:11.8?I1mm Frequency:5.8G Impedance:50?? VSWR:<1.5:1 Polarization:Circular Polarized Radiation:Omni |
| 5040 5 Inch 4-Blade Propeller | Material:PC Mounting hole:5mm Center thickness:8mm Quantity:2 CW + 2 CCW ( Same Color) Color:Green & Yellow & Red and Transparent White ( Delivery color randomly) |
| Battery | Not included Recommend 3-5S |
Package Included:
1 x 210mm frame kit
2 x 2206 2400KV brushless motor CW
2 x 2206 2400KV brushless motor CCW
1 x 4 IN 1 30A BLHeli_S ESC
1 x F4 flight controller
1 x Camera
1 x VTX
2 x Battery strap
1x Antenna
2x 5040 four-blade propeller CW
2 x 5040 four-blade propeller CCW
Additional information
| Weight | 0.554 kg |
|---|
