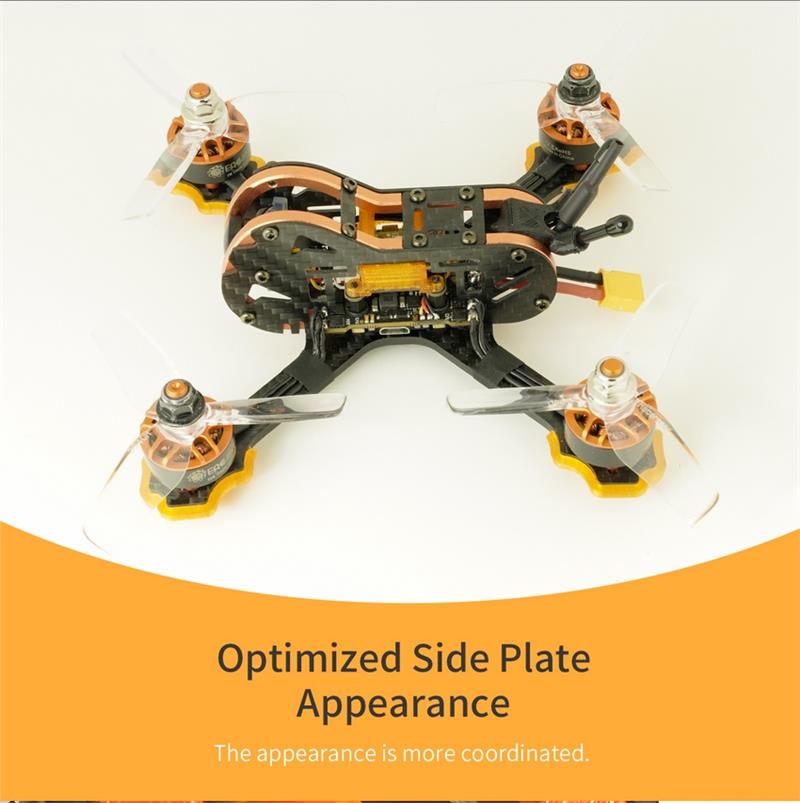

Eachine Tyro79 Pro DIY 140mm F4 AIO 35A ESC 4S 3 Inch FPV Racing Drone PNP w/ 5.8G 400mW VTX Runcam Nano 2 FPV Camera
Notice:
1. The Gyro is BMI270, which is not compatible very well with the latest firmare. So do not flash and keep the Default firmware out from factory.
2. There is RC and R2 pad on flight controller board. Pls do notice and solder carefully ( Click the Diagram Picture Link and refer to it)
Introduction:
Upgrade Tyro79 Into Tyro79 Pro version.
1. Equipped with New Mini F4 FC AIO 35A ESC
2. Adds 3D Printing Protective Covers for Motors
3. Adds Fixing Base for Installing Receiver
4. Equipped with Runcam Nano 2 FPV Camera
Specification:
Brand:Eachine
Model:Tyro79 Pro
Item Name:DIY 140mm F4 4S 3 Inch FPV Racing Drone
Version:PNP Without Receiver
Dimension:126x126x52mm
Weight:161.5g ( without Lipo battery)
| 140mm Frame | Wheel base:140mm Frame armthickness:3mm Upper plate thickness:1mm Side plate thickness:1mm Frame kit material:3K carbon fiber & CNC 6065 aluminium |
| 1607 2800KV Motor | KV:2800KV Lipo cell:2-4S Weight:17.8g (includes wires) Output shaft length:14mm Maximum pull:signal 630g (4S 3030 4-blade propeller) Maximum power:350W Configu-ration:9N/12P Mounting holes distance:12*12mm Mounting holes:??M2 Bearing:NSK N52 Strong NdFeB Magnet |
| MINI F4 AIO 35A ESC ( Diagram Picture) |
Flight Controller: MCU:STM32F411 OSD:AT7456E Gyro:BMI270 Blackbox:NO BEC Output:5V 2A, 9V 2A URATS:2 Firmware:Mini F411 AIO ESC: Con. Current:35A -BLHeli_S ESC Telemetry:NO Recommend Lipo:2-4S Mounting Hole:20.5X20.5mm, M3 Dimension:41x37mm Weight:around 11.6g |
| 3040 3-Blade Propeller | Quantity:4 CW + 4 CCW Color:Send Randomly |
| XF5805 5.8G 40CH 25/100/400mW VTX | 5.8G 40CH 25/100/400mW VTX |
| Runcam Nano 2 FPV Camera | Image Sensor:1/3′ CMOS Horizontal Resolution:700TVL Dimensions:L14xW14xH16mm |
Package Included:
1x Tyro79 Pro FPV Drone ( DIY, need assemble)
Additional information
| Weight | 0.408 kg |
|---|---|
| Receiver: No selection | Without Receiver |
