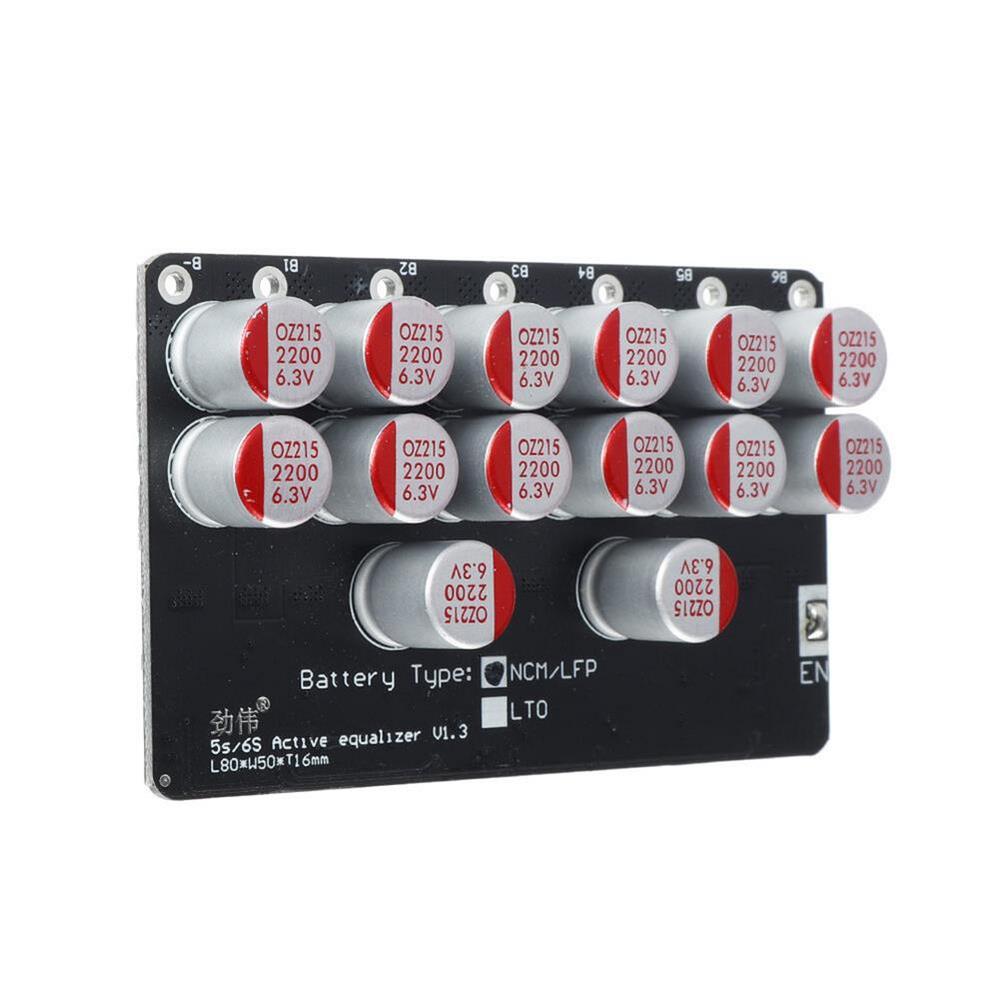

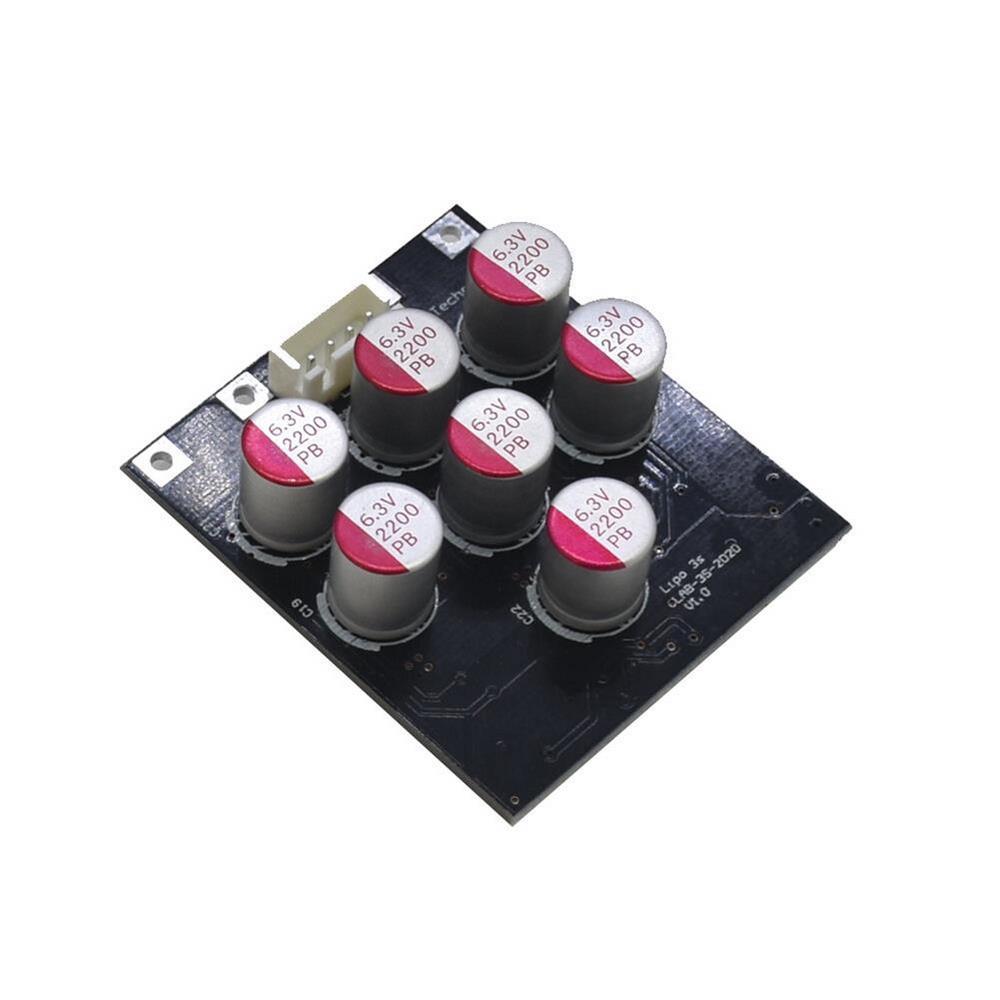

3-21S Lithium Battery 5A Balancer 4 LTO LiFePo4 Li-ion Battery Active Equalizer Balancer Board

3-21S Lithium Battery 5A Balancer 4 LTO LiFePo4 Li-ion Battery Active Equalizer Balancer Board
Parameters of lithium titanate equalization plate
Balanced starting voltage:2.0v-2.8v
Balanced termination voltage:1.9V (entering into undervoltage sleep state)
Balance accuracy:5mv
Maximum balance current:group error 0.1v1a; 0.5v3.5a; 1.0v5.5a (18awg 30cm cable test)
Sleep current:?? 1mA
5s-lto static current full state (2.8V * 5cell) 14V 12mA
6s-lto static current full state (2.8V * 6cell) 16.8v 15mA
7s-lto static current full state (2.8V * 7cell) 19.6v 12mA
8s-lto static current full state (2.8V * 8cell) 22.4v 12mA
No external power supply is needed, and the whole group is balanced by the internal energy transfer of the battery.
Working environment temperature:0??-60??
General parameters of ternary lithium / lithium iron phosphate
Balanced starting voltage:3.0v-4.2v
Balanced termination voltage:2.9v (entering undervoltage sleep state)
Balance accuracy:?? 5mv
Sleep current:?? 1mA
Maximum balance current:group error 0.1v1a; 0.5v3.5a; 1.0v5.5a (18awg 30cm cable test)
3S static current full state (4.2V * 3cell) 12.6V 12mA
4S static current full state (4.2V * 4cell) 16.5v 15mA
5S static current full state (4.2V * 5cell) 21v 15mA
6S static current full state (4.2V * 4cell) 25.2v 15mA
7S static current full state (4.2V * 7cell) 29.4V 15mA
8s static current full state (4.2V * 8cell) 33.6v 11ma
15 / 16 / 17s common board full power state (4.2V * 17cell * 2) 71.4v 10mA
17 / 18 / 19 / 21s common board full power state (4.2V * 21cell * 2) 88.2v 16mA
No external power supply is needed, and the whole group is balanced by the internal energy transfer of the battery.
Working environment temperature:0??-60??
Package included:
1 x Li-ion Battery Active Equalizer Balancer
