DALY BMS 4S 12V 30A 40A 50A 60A Smart Battery Protection Board 3.2V 18650 BMS LiFePO4 BMS with Bluetooth UART RS485 CAN NTC Function
Note:The first use of Smart BMS requires charging activation before it can be used. For the operation steps, please refer to ‘Connect and Activate Video’ in the following document.
>>>Manual:Click here to open<<<
Attention:
1. Customer need to identify the battery’s series, then choose the same series BMS. Such as your battery is 24S, you must choose 24S BMS, can not choose 20 or other one. The number of series of BMS is fixed ,not adjustable once the BMS is shipped out .
2. The first time the smart BMS is used, it needs to be charged and activated.
3. BMS touch control screen and Bluetooth module can not be used at the same time, choose one of the two, the same interface.
4. All accessories and BMS are the latest version, maybe the picture has not been updated, if you are concerned about the version, please consult the specific situation before purchasing.
Product Description:
Daly smart 3.2V 18650 BMS LiFePO4 BMS 4S 12V 30A 40A 50A 60A BMS with Bluetooth UART RS485 CAN NTC function
This link is for 4S 12V LiFepo4 Battery.

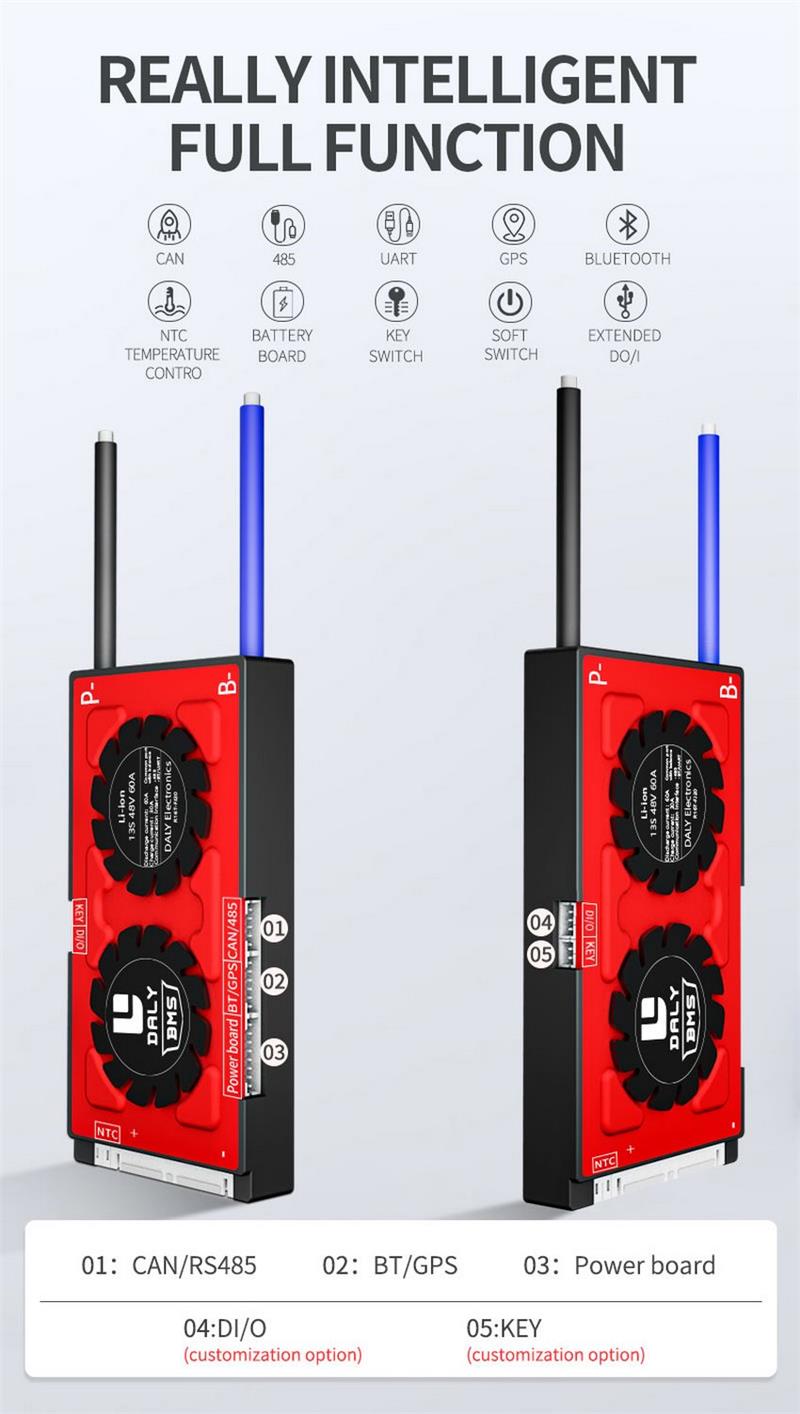

Features:
UART:It is Daly normal product. UART is Universal Asynchronous Receiver/Transmitter, It transforms the data to be transmitted between serial communication and parallel communication. As a chip to convert parallel input signals into serial output signals, UART is usually integrated into other communication interfaces.
RS485:Please choose the model RS485 of Daly. RS-485 adopts balanced transmission and differential reception, so it has the ability to suppress common mode interference.
DL4S 12V Smart BMS 30A 40A 60A bms can be used to 4S Li ion or LiFePO4 or LTO battery pack. Customer can adjust the paramter of overcharge or overdischarge the parameter sitting & other parameter if customer need to use which type battery for the same series battery.
Control instructions:remote control device monitoring.
Vehicle icon:data transmission send command
Statistical report:Collect the data information, the customer can monitor the battery capacity & other alarm infomation.
Electronic fence:fence setting limit range.
Device information:device parameter information, etc.
The information on your battery can be checked on your host computer, then you can monitor your battery status anytime. Which is easly control your device. Smart BMS make our life to become easy.
Packege Included:
(Choose different BMS specifications according to your needs:)
30A com 485/30A com UART BT/40A com 485/40A com UART BT/60A com 485/60A com UART BT:
1 x BMS Board
1 x Cable (Use to connect battery)
1 x NTC Module
Below accessary need you to buy separately:
1 x USB to UART Cable 3P (optional)
1 x USB to RS485 Cable (optional)
1 x Bluetooth module (optional)
If you need more BMS accessories information, you can click here to open >>>ID:1872195 <<<
Additional information
Weight | 0.1 kg |
---|---|
The Type: No selection | 30A com 485, 30A com UART BT, 40A com 485, 40A com UART BT, 60A com 485, 60A com UART BT, Bluetooth module, USB to RS485 Cable, USB to UART Cable 3P |
