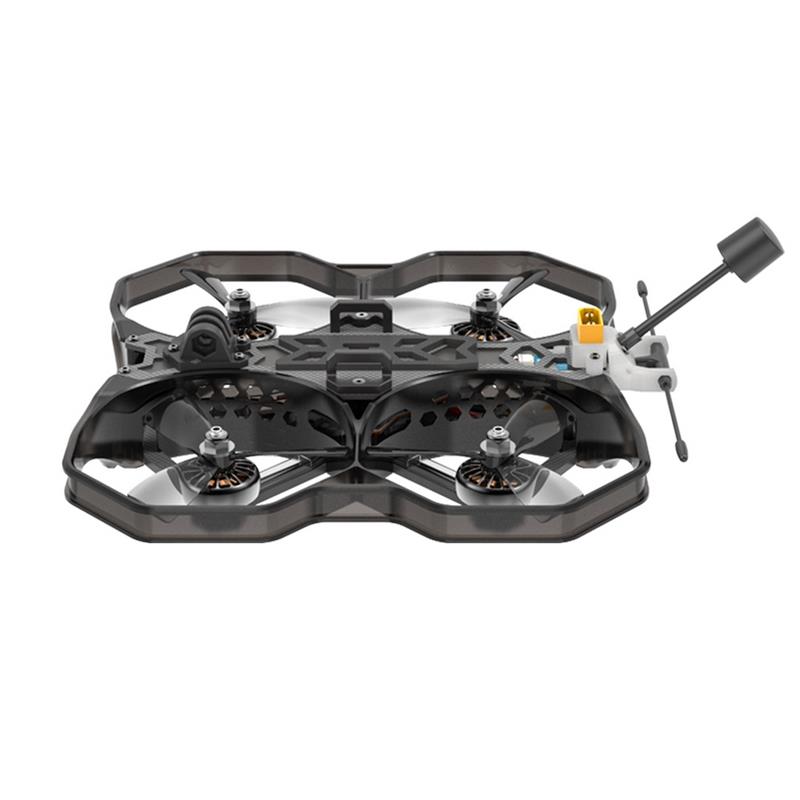

iFlight ProTek35 V1.4 Analog 3.5 Inch 6S Duct FPV Racing Drone PNP BNF with BLITZ Whoop F7 AIO FC XING 2205 Motor 600mW VTX
Specifications:
Brand:iFlight
Model:ProTek35 V1.4 ( Analog)
Product Name:151mm wheelbase F7 6S 3.5 Inch FPV Racing Drone
AIO:BLITZ Whoop F7 AIO
Video Transmission:BLITZ Mini 600mW VTX
Frame:151mm wheelbase
Motor:XING 2205 motors
Prop:Nazgul 3535 propellers
Takeoff Weight?Approx. 216g (Without Battery)
Dimensions (L?W?H)?217?194?32.5 mm
Max Speed?140 Km/h (Manual Mode)
Maximum Takeoff Altitude?5000 m
Max Hover Time?Approx. 6 mins (With 6S 1400 battery no load)
Max Wind Speed Resistance?70 Km/H (Level 4)
Operating Temperature Range?-10ɳ to 40ɳ C (14ɳ to 104ɳ F)
Antennas:Single Antenna
GNSS?N/A
Video Transmission:
Product Name:BLITZ Mini 600mW VTX
Output Power:0-25-200-400-600mW
Input Volts:5V
Working Current:?Lpit @80mA???L25mw@280mA???L100mw@405mA???L400mw@485mA???L600mw@575mA
Transmission fre:40CH(A-B-E-F-R)
Antenna Interface:MMCX
Mounting Hole:20?20/?3mm/ 25?25/?2mm
Weight:4 grams (Without antenna)
Dimensions:L29mm*W29mm
Features:
Unobstructed Field of View:The design of the drone ensures there are no obstructions from the props or frame, providing an ideal platform for aerial photography or videography.
Optimized Performance and Design:The drone features a high-performance BLITZ F7 AIO 55A board that saves weight and space, alongside a secured battery plug and CNC bracket for easy installation. This makes the drone compact yet powerful.
Superior Durability:The drone is constructed with T700 Quality Carbon, offering 40% more tensile strength compared to common 3K carbon, ensuring a high level of durability even under intense flight routines.
Stable and Smooth Footage:The drone٬s one-piece frame design increases rigidity and reduces resonance, resulting in less Jello effect and more cinematic, smooth footage.
User-friendly Features:The drone comes pre-tuned with smooth freestyle settings and is equipped with a high-quality RaceCam R1 Mini FPV Camera for real-time video transmission, making it ready to use and perfect for a wide range of users.
Packing List:
1 x ProTek35 V1.4 6S analog BNF
1 x 3.5 inch prop (2 pairs)
2 x Battery pad
2 x Battery strap
Additional information
Weight | 0.7 kg |
---|---|
Receiver: No selection | 915MHz ELRS, ELRS 2.4GHz, TBS Crossfire Nano RX, Without Receiver |
