Geprc Cinebot30 Analog 127mm F7 45A AIO V2 4S / 6S 3 Inch Cinematic FPV Racing Drone PNP BNF with 5.8G 1W VTX CADDX Ratel V2 Camera
Introduction:
Taking your drone photography to the new level, the new series Cinebot30, take you to the real world, shooting extreme footage.
Cinebot30 is a new generation of Cinematic FPV drone developed by GEPRC team. The high-strength 7075 aircraft-grade aluminum alloy bracket for FPV camera escort, the combination of classic engineering and aesthetics. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues.It is compatible for GoPro Black Bones and Geprc NakedHero 8, Insta 360 GO2 and other cameras. The image is stable and clear, and it??s easy to film.
Adopts high-strength one-piece injection-molded propeller guard and high-toughness and impact-resistant PC material for injection molding. A ring-shaped Cob light strip is embedded in the propeller guard, and the light effect is carefully tuned. High-strength grain-cut carbon fiber sheet, the overall strength of the fuselage is upgraded again!
Cinebot30 will be equipped with a powerful 1804 motor with optimized motor magnetic circuit and surging torque, which can easily cope with ultra-low altitude shooting. With HQ prop T76mm*3 propeller, it gets the lowest noise effect in its class. Using GEP-F722-45A AIO v2 flight controller, higher performance redundancy, and easy handling of unexpected situations. Finely polished frame design, only 6 screws need to be removed to separate the aircraft top plate and protection frame. Easy to cope with the urgent need to replace the accessories, at any time to restore the state.
Tuned by GEPRC professionals, the Cinebot30 is a Cinematic FPV that performs both indoor and outdoor flights equally well. The Cinebot30 explores endless possibilities for your drone shots!
Features:
1. Design that combines engineering and aesthetics.
2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
3. Selected high-toughness and impact-resistant PC material for injection molding.
4. Aviation 7075 aluminum alloy camera mounting bracket and fuselage aluminum column.
5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
6. The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
7. Powerful 1804 motor, surging torque to deal with ultra-low altitude flight at will.
8. With the new GEP-F722-45A AIO V2, stable performance, more secure flight
9. Four kinds of FPV system with the program, choose to belong to your first-person view
10. Tuned by GEPRC professionals, delicate and silky flying feel
Specification:
Brand:Geprc
Model:Cinebot30 ( Analog)
Item Name:127mm Wheelbase F7 FPV Racing Drone

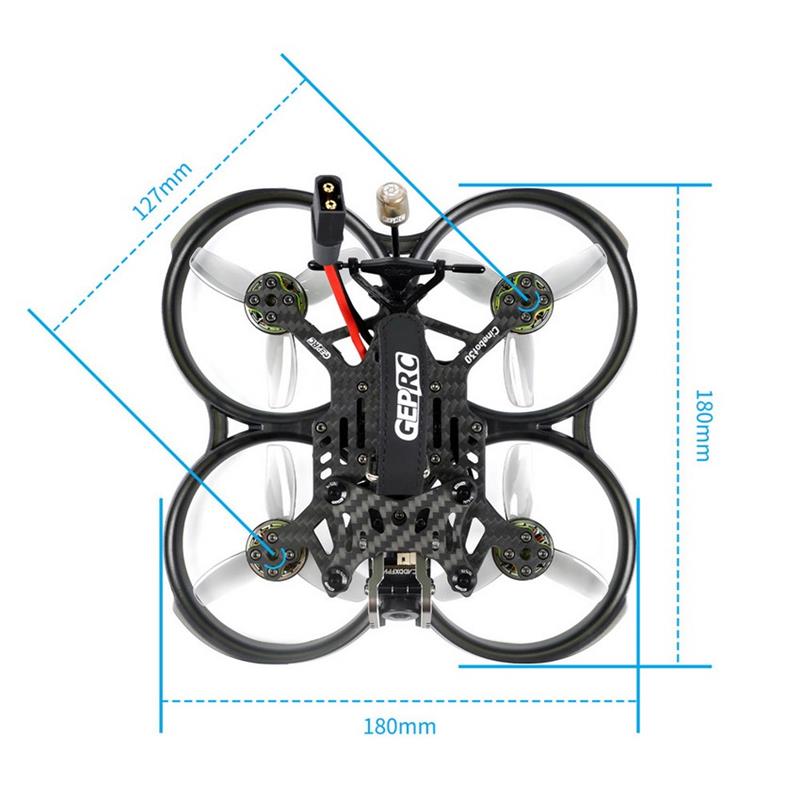

Wheelbase:127mm
Weight:209.2g ( without receiver, battery)
Frame Kit | Frame:GEP-CT30 Wheelbase:127mm Isolation Plate:2mm Main plate:3mm Bottom plate:1.5mm |
Flight Controller | Model:GEP-F722-45A AIO V2 MCU:STM32F722RET6 IMU:ICM-42688-P |
Brushless Motor | SPEEDX2 1804 2450KV (6S Version) SPEEDX2 1804 3450KV (4S Version) |
Propeller | HQ prop T76mm |
VTX | Grprc 5.8G 1W VTX |
Antenna | Peano 5.8G Antenna |
FPV Camera | CADDX Ratel 2 |
Recommend Lipo Battery:
4S Version:4S 1100mAh-1300mAh
6S Version:6S 850mAh-1100mAh
Package Included:
1x Cinebot30 Quadcopter
2x HQProp T76MM??pair??
1x Battery strap M15*200mm
1x Battery strap M15*220mm
2x Battery Silicone Pads
1x Set of screws
1x Set of screwdrivers
2x camera mount holder for Gopro
1x Set of screws
1x Set of screwdrivers
1x Antenna fixed tube
Additional information
Weight | 0.209 kg |
---|---|
Voltage: No selection | 4S, 6S |
Receiver: No selection | ELRS 2.4GHz, Frsky R-XSR Receiver, TBS Crossfire Nano RX, Without Receiver |
