Flywoo 2S Nano Baby 20 Analog F4 12A AIO 2 Inch Micro FPV Racing Drone PNP BNF with 450mW VTX 1200TVL Camera
Introduction:
It Equipped with the most efficient micro motor and the top AIO flight control on the market.
It will bring you an unprecedented flying experience. The drone could do all the acrobatic motions smoothly, like dive and power loop

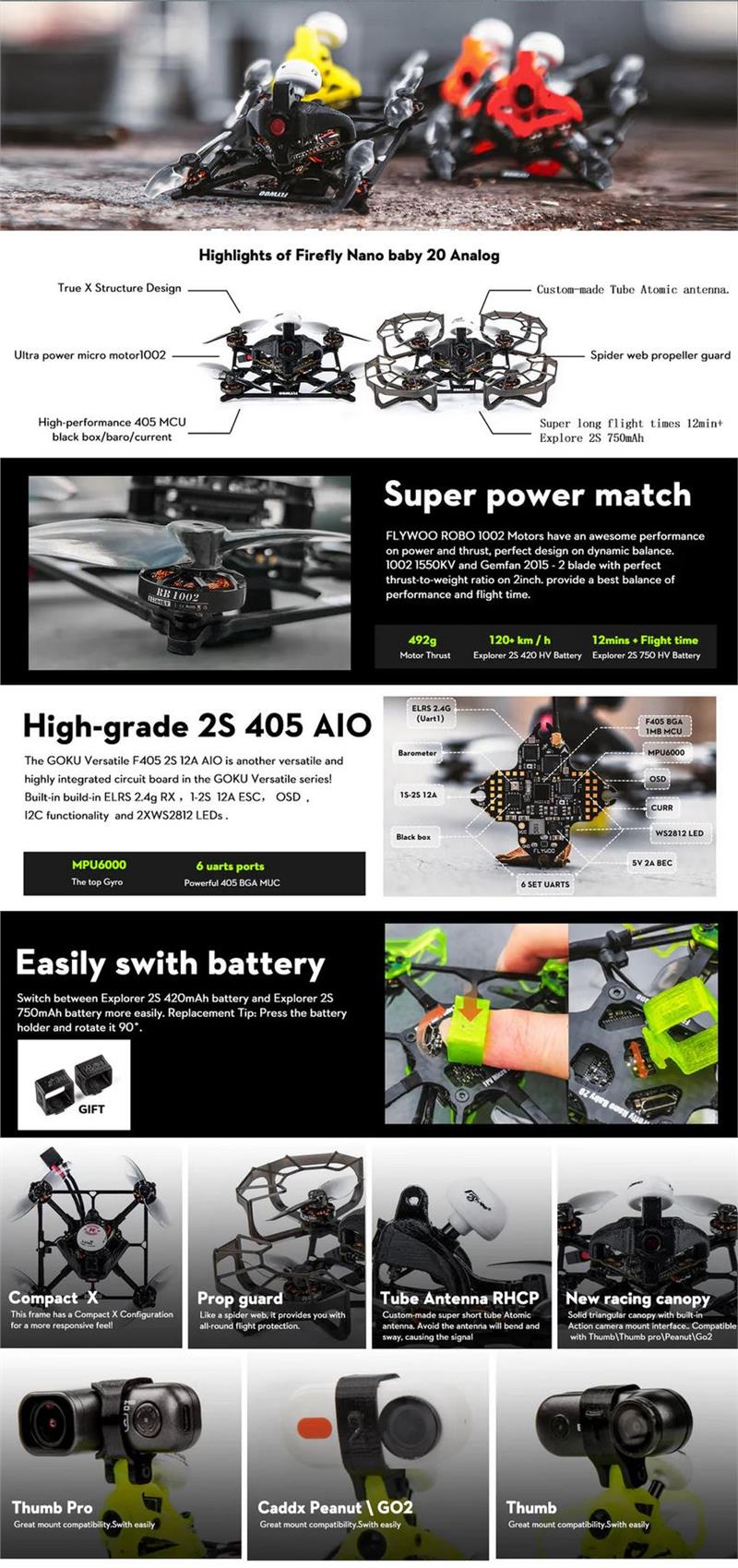

Features:
– 1002 15500KV and Gemfan 2015 – 2 blade with perfect thrust-to-weight ratio on 2inch. provide a best balance of performance and flight time.
– GOKU Versatile F405 2S 12A AIO is another versatile and highly integrated circuit board !
Built-in build-in ELRS 2.4g RX. Have multiple sets of serial external devices
– Easily swith battery mount design .
Explorer 2S 420mAh for Racing , Explorer 2S 750mAh for long flight time. ( NOT Included lipo battery)
– Great mount compatibility.Swith easily. Thumb Pro Peanut GO2 Thumb
Specification:
Brand:Flywoo
Model:2S Baby Nano 20 ( Analog Version)
Item Name:2 Inch FPV Racing Drone
Weight:33.8g
| Frame Kit | Model:2S Nano Baby 20 Analog Frame kit Material:100% 3K carbon fiber Thickness of bottom plate:1.5mm Weight:5g |
| FC & ESC | GOKU Versatile F405 2S 12A AIO W / build-in ELRS 2.4g RX |
| Motors | Model:Flywoo ROBO 1002 15500KV Brushless Motor Configuration:9N12P Stator Diamter:10mm Stator Length:2mm Shaft Diameter:1.5mm Motor Dimension(Dia.xLen):13.5×7.75mm Weight(g):2.4 (5cm wire) Idle current(5)@5V(A):0.8 No.of Cells(Lipo)??1~2S Max Continuous Power(W)3S??67 Internal Resistance??165m?? Max Current(3S)??10A Max.Effciency Current:(1-3A)>84% |
| Propeller | Gemfan 2015-2 blade |
| VTX | Model:GOKU VTX625 V2 450mW Nano VTX Raceband:5362-5945 MH Power:PIT/25/50/100/200/450mW switchable Control Mode:IRC(RX)/Button BAT:+5V Input Video System:NTSC/PAL Antenna:IPX Size:30mm?G30mm?G4mm Weight:1.3g |
| FPV Camera | Model:Flywoo 1.2g 1S Nano camera V2 Image Sensor:1/3′ CMOS Sensor Horizontal Resolution:1200 TVL TV System:NTSC and PAL(switchable) MENU:Support IMAGE:4:3 Synchronization:Internal Video Output:CVBS Lens:1.8mm/F2.5 WDR:Global WDR DNR:3D DNR Dimensions:14x14mm Wide Power Input:DC 5-25V Weight:1.2g (N.W.) |
Package Included:
1x Flywoo 2S Nano Baby 20 Analog Micro Drone
2x set of 2015-2 props
1x Screw spare packs
2x battery holder
4x Prop guards
Additional information
| Weight | 0.1 kg |
|---|---|
| Receiver: No selection | ELRS 2.4GHz, Frsky XM+ Receiver, TBS Crossfire Nano RX, Without Receiver |
