Geprc Mark5 Analog 225mm F7 4S / 6S 5 Inch Freestyle FPV Racing Drone PNP BNF w/ 50A BL_32 ESC 2107.5 Motor RAD VTX 5.8G 1.6W Caddx Ratel 2 Camera
Introduction:

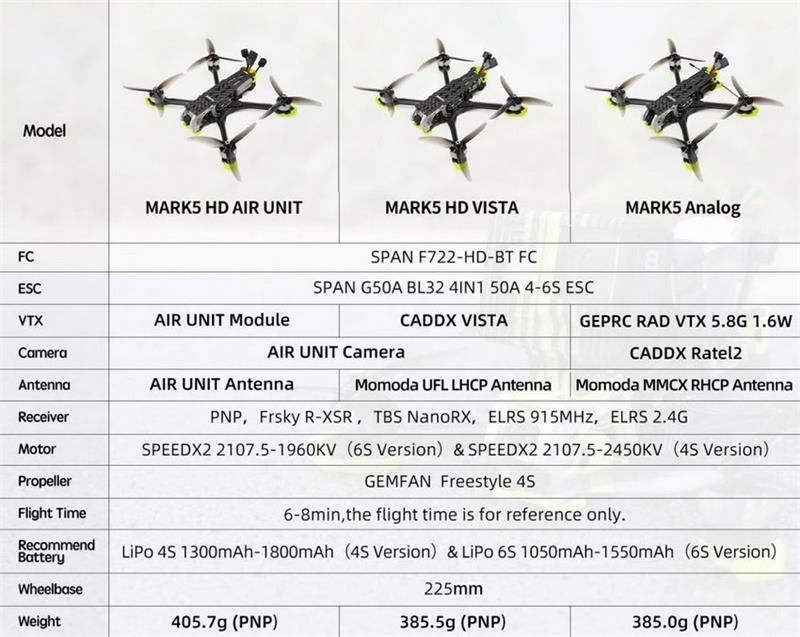

GEPRC new generation freestyle drone MARK5.We are proud to say the MARK5 HD quad is the best freestyle quadcopter in the market. It is now launched in three versions:HD AIR UNIT, HD VISTA and Analog.
MARK5 is developed specifically for freestyle with wide X-arm design. Unique shock absorbing structure design, less vibrations and resonance provide a stable operating environment for the electronic system. Aluminum alloy side plates not only look stunning but reduce weight and add more endurance. MARK5 is equipped with GEPRC??s latest SPAN F722-HD-BT FC with high performance and lots of ports, supporting Bluetooth wireless connection for easy field tuning. Freshly upgraded SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC??s latest 2107.5 motor, has great explosive power and quick response speed. The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience. The MARK5 is shipped with two different 3D printed action camer mounts for GoPro8/9/10, Naked Gobro Insta 360 GO2 and Caddx Peanut cameras. After continuous testing and tuning by GEPRC R&D team, we are proud to say, this is yet another GEPRC drone that comes perfectly tuned right out of the box. Just take it out, plug the battery and have fun!
We’ve been pursuing for lighter weight, better flying experience, and more functionality for all our products!
Features:
– Aluminum alloy side plates not only look stunning but reduce weight and add more endurance.
– Supports Bluetooth wireless connection for easy field tuning.
– Developed specifically for freestyle with wide X-arm design.
– Analog version is equipped with our latest incredible RADVTX 1.6W paired with Caddx Ratel 2 camera.
– A variety of receiver choices including our brand new ExpressLRS Rx.
– SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC’s latest 2107.5 motor, has great explosive power and quick response speed.
– Unique shock absorbing structure design, less vibrations and resonance.
– Specially designed independent capacitor and buzzer compartment for better performance and shaking reduction.
– The new GEMFAN Freestyle 4S propellers provide delicate and silky smooth flight experience.

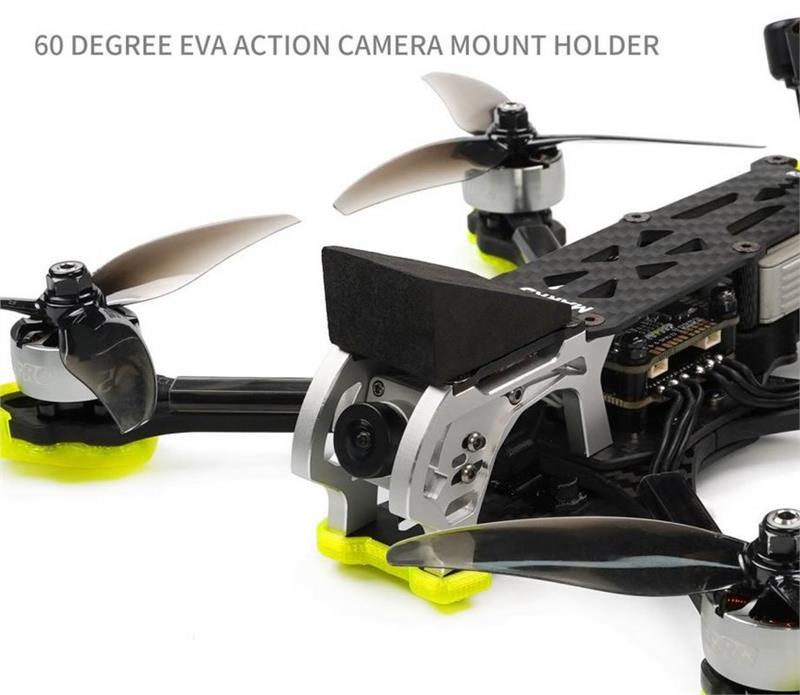

– with two different 3D printed action cam mounts for GoPro8/9/10, Naked Gobro8, Insta 360 GO2 and Caddx Peanut cameras.
– MARK5 is the most ideal for freestyle flying and bando-bashing resistant.
Specification:
Brand:Geprc
Model:Mark5 Analog
Item Name:225mm F7 5 Inch Freestyle FPV Racing Drone
| GEP-MK5 Frame | Wheelbase:225mm Top Plate Thickess:2.5mm Bottom Plate Thickess:2.5mm Arm Plate Thickess:5mm |
| SPAN F722-HD-BT Flight Controller | MCU:STM32F722 IMU:MPU6000(SPI) OSD:BetaFlight OSD w/AT7456E chip |
| SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC | Con. Current:50A |
| SPEEDX2 2107.5 Motor | KV:1960KV ( 6S Version) / 2450KV ( 4S Version) Configuration:12N14P Stator Diameter:21mm Stator Height:7.5mm Shaft Diameter:??4.0mm Size:??26.83mm*30.85mm Rotor:N52H ARC Weight:29.5g |
| Gemfan Freestyle 4S Propeller | Material:PC Weight:3.6g Pitch:3.6in Prop Dia:129mm Center Thickness:6mm Center Hole Dia:5mm |
| GEPRC RADVTX | Input voltage:DC 7-36V(2-8S Battery) Output:5V@600mA(power 5V to Camera) Input impedance:75?? Protocol:IRC Tramp Antenna interface:MMCX Output power:PIT mode/25mW/200mW/600mW/1600mW PIT MODE Frequency tables:Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH) Video format:PAL / NTSC Microphone:Built in microphone Size:36?G36.5?G5.5mm Weight:9.7g(without cable) Mounting hole:30X30mm(M3) |
| CADDX Ratel 2 1200TVL FPV Camera | Sensor:1/1.8″ Inch Starlight Resolution:1200TVL TV System:NTSC & PAL (switchable) Image:4:3 & 16:9 (switchable) WDR:Super WDR Wide Power Input:5-40V Working Temperature:-20?? ~ +60 ?? Weight:5.9g Dimension:19*19*20mm |
| Antenna | GEPRC Momoda 5.8G MMCX RHCP 100mm |
Recommend Lipo Battery:( NOT Included)
4S Version:4S 1300mAh-1800mAh
6S Version:6S 1050mAh-1550mAh
Package Included:
1 x MARK5 Analog Quadcopter
4 x Freestyle 4S propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
1 x Battery strap M20x250mm
2 x Battery Silicone Pads
1 x Camera cage carbon top plate
1 x 3D print mountings combination
2 x Action camera mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube
Additional information
| Weight | 0.4 kg |
|---|---|
| Voltage: No selection | 4S, 6S |
| Receiver: No selection | ELRS 2.4GHz, TBS Crossfire Nano RX, Without Receiver |
