ANENG CM81 6000 Counts Auto Range NCV Digital Clamp Meter DC/AC Voltage Current Resistance Frequency Capacitance Tester
Features:
1. The high-precision clamp head accurately measures the induction, and the jaws can be opened with a diameter of 36mm and can be accurately stuck.
2. Comes with test pen, grade 1000V/10A test pen overall length 95cm, PVC/brass material is safe and durable.
3. The soft silicone buttons are comfortable to the touch and have a strong sense of pauses, which is actually ergonomic.
4. High-definition backlit screen:LCD digital display is clear, the larger the count, the higher the precision.
5. Diversified measurement functions are complete, which can measure a variety of electronic components to meet your multi-functional needs.
6. LED flashlight lighting, in the dark environment, no longer afraid to see the measurement position, to eliminate the risk of electric shock.

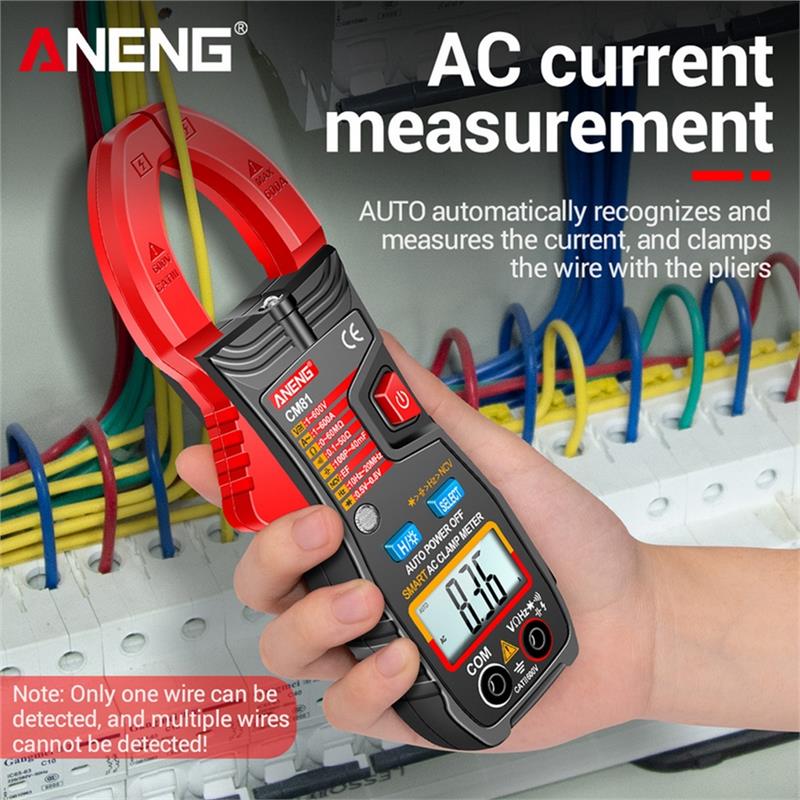

7. 600A AC current, high-precision induction clamp head, accurate measurement, select the A current gear, clamp the single-strand wire, and measure the current without puncturing.
Function:
AC voltage:1V-600V 0.00V-1V ??(1.5%+8d)
DC voltage:1V-600V 0.007V-1V ??(1.2%+5d)
AC current:1A-600A 1mA-0.1A ??(2.8%+8d)
Resistance:0??-60M?? 0??-10K?? ??(1.2%+5d)
Capacity:100P-40mF 1pF-10uF ??(6%+10d)
Hz Frequency:10Hz-20MHz 0.1Hz-10kHz ??(4.0%+10d)
NCV:Support
Shut-down:Support
Data retention:Support
low battery indicator:Support
Diode:Support
Buzzer:Support
Real-time temperature:Support
Range:Automatic
Battery:2xAAA batteries (not included)
Material:ABS
Max count:6000 count
Screen:HD backlit screen
Jaw opening size:36mm/1.41in
Overall length of the pen:95cm
Pen material:PVC/brass
Package included:
1 x Digital Multimeter(Not included battery)
2 x Test leads
1 x User Manual
Additional information
Weight | 0.225 kg |
---|---|
Color: No selection | Black, Red |
