Ternary Iron Lithium Battery 4-24 Series Active Balance Plate Inductive Pressure Difference Balance Capacity Repair Protection Restorer
Specification:

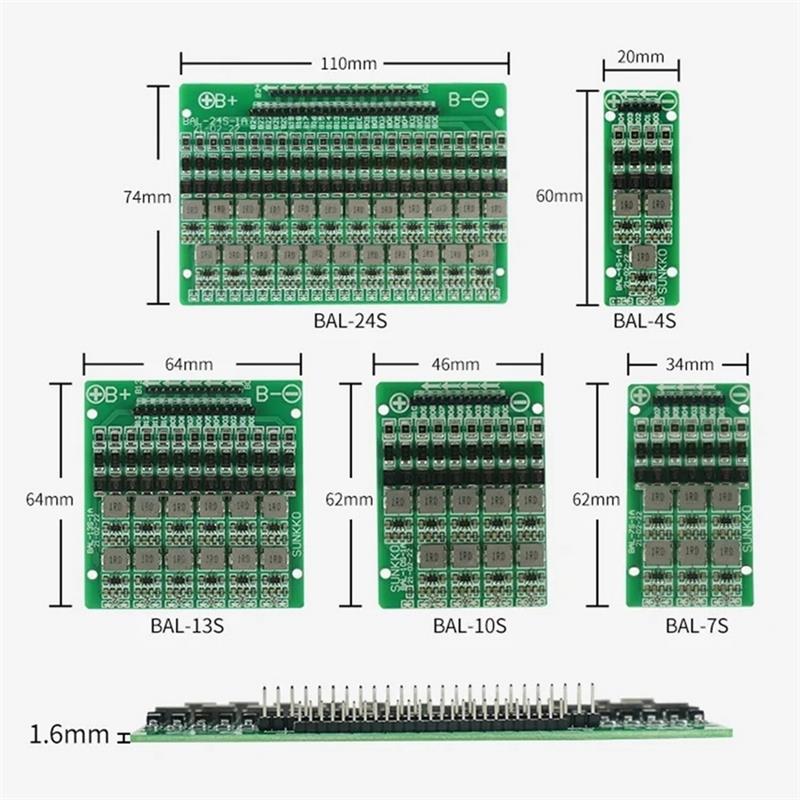

PCB size:74 x 110mm
Unit overcurrent protection value:2.3A (??0.2A)
Balance conversion frequency:1MHZ
Quiescent current of non-operating unit:??2uA
Adapt to the number of battery strings:2~24 strings
Balanced transmission efficiency:??92%
Starting differential voltage:>0.1V
Balance current:1.2A (maximum)
Applicable battery type:ternary lithium, lithium iron phosphate
Product model:BAL-24S
Product name:Lithium battery active balance board
Package included:
1 x Cable(2.54Pinsingle row/2.54+2.0 Pin Double row??
1 x Balance Board (optional)
Additional information
| Weight | 0.001 kg |
|---|---|
| Number: No selection | 10S, 13S, 18S, 24S, 4S, 7S |
