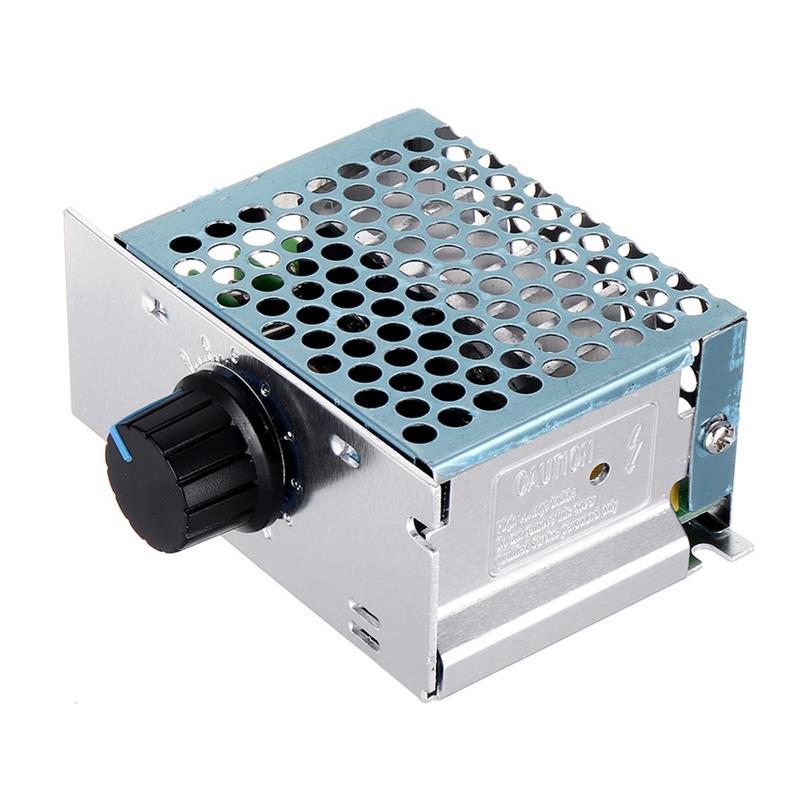

AC220V 500W DC Motor Driver High Voltage Motor Speed Controller Electronic Stepless Speed Control Switch DC 10-210V Motor
Specifications:
Input voltage:AC 220V
Output voltage:linear under load
Continuous current:10A
Maximum current:20A
Regulated voltage:DC 10-210V
Speed regulation method:potentiometer (linear)
Wiring type:Barrier terminal
Knob specification:500K with switch
Module size:length * width * height 85MM*58MM*38MM
Product net weight:135 grams
Note:
1. The voltage must be measured under load and the no-load voltage remains unchanged.
2. This product is only suitable for 220V DC brushed motors.
Package Included:
1 x 500W DC Motor Driver High Voltage Motor Speed Controller
Additional information
| Weight | 0.123 kg |
|---|
