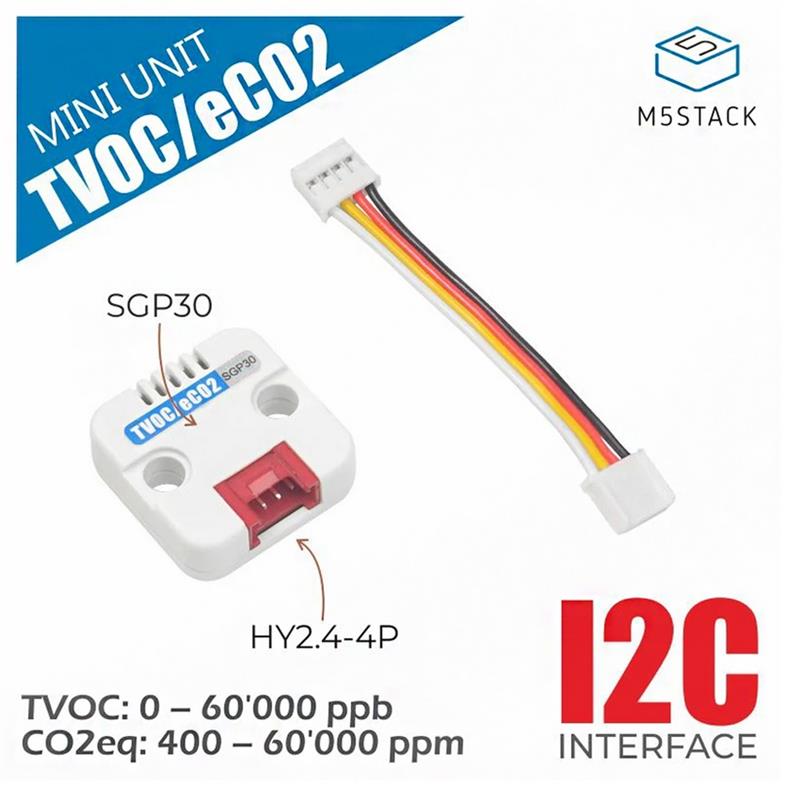

M5Stack TVOC/eCO2 Gas Unit (SGP30) Digital Multi-Pixel Gas Sensor Unit Air Quality Monitoring eCO2 Concentration Module
Description:
TVOC/eCO2 mini Unit is a digital multi-pixel gas sensor unit with integrated SGP30. It mainly measures various VOC (volatile organic compounds) and H2 in the air. It can be programmed to detect TVOC (total volatile organic compounds) and eCO2 (equivalent carbon dioxide reading)Concentration measurement. Typical measurement accuracy is 15% within the measurement range, the SGP30 reading is internally calibrated and output, which can maintain long-term stability. SGP30 uses I2C protocol communication with on-chip humidity compensation function, which can be turned on through an external humidity sensor. If you need to obtain accurate results, you need to calibrate according to a known measurement source. SGP30 has a built-in calibration function. In addition, eCO2 is calculated based on the concentration of H2 and cannot completely replace ‘true’ CO2 sensors for laboratory use.
Features:
– TVOC/eCO2 concentration detection
– I2C communication(0X58)
– Outstanding long-term stability
– Humidity Compensation
– 2x LEGO Hole
– HY2.0 4P interface
Package Included:
– 1x TVOC/eCO2 Mini Unit
– 1x HY2.0 Cable(5cm)
Applications:
– Air quality monitoring
– eCO2 concentration
Specification:
Specification | Parameter |
Measurement range | Ethanol:0-1000ppm??H2:0-1000ppm??TVOC:0-60000 ppb??eCO2:400-60000 ppm |
TVOC/eCO2 Sampling rate | 1Hz |
TVOC/eCO2 Resolution | TVOC:1/6/32bbp??eCO2:1/3/9/31ppm |
Protocol | I2C: |
Net Weight | 4g |
Gross Weight | 8g |
Product Size | 24*24*13mm |
Package Size | 35*36*18mm |
Case material | Plastic(PC) |
EasyLoader:Click to download
EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial, M5StickC/V/T/ATOM series can be used without driver)
PinMap:
M5Core(GROVE A) | GPIO22 | GPIO21 | 5V | GND |
TVOC Unit | SCL | SDA | 5V | GND |
Related Link:
SGP30 Datasheet
Schematic:click to open
Example:
1. Arduin IDE
To get the complete code, please click here
Additional information
Weight | 0.009 kg |
---|
