Wanptek DPS3010U 110V/220V 4 Digits Adjustable DC Power Supply 0-30V 0-10A 300W USB Fast Charging Laboratory Switching Power Supply
Size ConversionInches
Centimeters
Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Description:
DPS series product is a three-window four-position display high-precision switching DC stabilized power supply
It can display voltage, current and power at the same time.
The products are widely used in mobile phone repairs, computer repairs, schools and production lines.
The output voltage and output current can be continuously adjusted between 0 and the nominal value.
The stability and ripple factor of the power supply are very good, with USB fast charging function and perfect short circuit protection circuit.
Its small size, beautiful design, convenient operation, can work at full load for a long time, and it is very popular among users.
Specification:
| Brand | Wanptek |
| Model | DPS3010U |

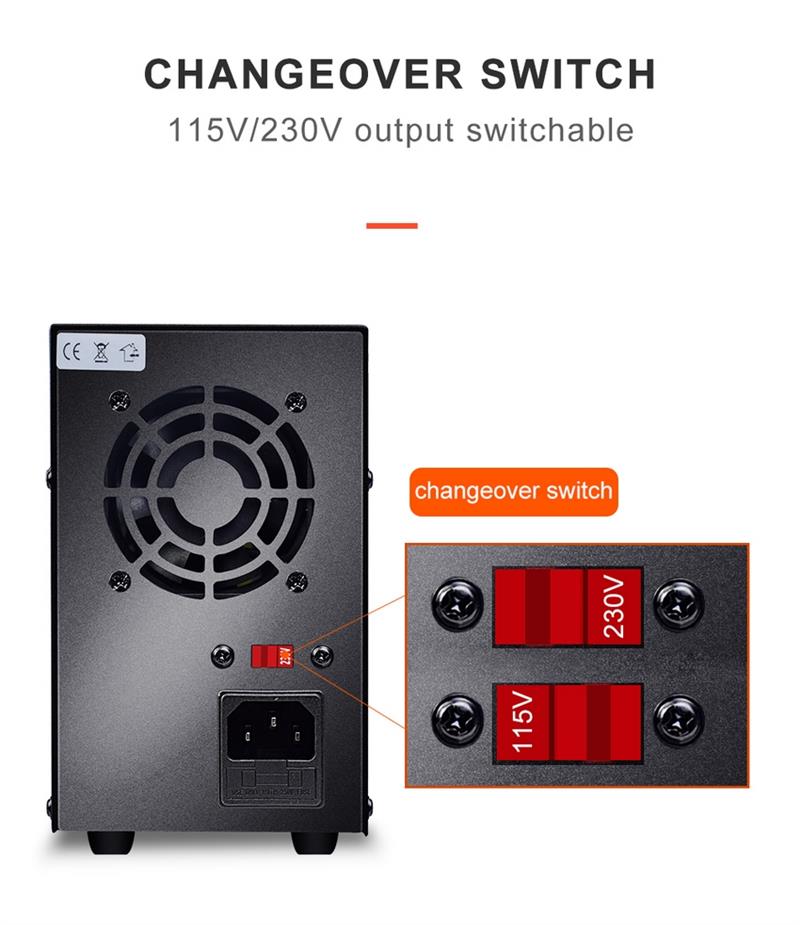

| Input Voltage | 110V/220V Regulated ??10% 60Hz /50Hz |
| Output Voltage | 0-30V |
| Output Current | 0-10A |
| Wattage | 300W |
| More Function | USB fast charge, support multiple fast charge protocols |
| Three Displays | Current(0.001) / Wattage(0.01) / Voltage(0.01) Display |
| Protection | – Current limit protection – Short circuit alarm stop output – Self-recoverys |
| Voltage/Current stability | 0.1%??3mV |
| Load stability | 0.2%??3mV |
| Ripple voltage | ??0.5% Vp-p |
| Recoverys time | ?Q500 ??s(50% load change, minimum load 0.5A) |
| Ripple & Noise | ?Q5mVrms, 100mVp-p |
| Temperature Coefficients | ??100ppm/?? |
| Operation Temperature &Humidity | 0??C to 40??C, <80% |
| Storage Temperature & Humidity | -10??C to 70??C, <70% |
| Size | L225mm X W90mm X H145mm |
| Weight | 1.8Kg |
| Features – Display accuracy:0.5% ?? 3 characters – 0.56 inch white light four digital tube display – 110V/220V Regulated switching power supply. – USB fast charging function, support multiple fast charging protocols. – Short circuit protection function, short circuit stop output. – Small size, light weight and high power density. – Constant pressure and constant current switch automatically. – Three LED display of voltage, current and power, high precision. – Temperature controlled fan dissipates heat, has low noise and long life. |
|
| Application field Production line test. 2. Mobile phone, computer, electrical appliance maintenance. 3. Product aging, electroplating. 4. Charge the battery. 5. Laboratory, scientific research teaching. 6. All other occasions requiring DC power supply. |
|
| Package included 1X110V/220V Adjustable DC Power Supply 1X Plug Power Cord 1X Crocodile Clip 1X Warranty Card 1X English Manual |
Additional information
| Weight | 1.7 kg |
|---|---|
| Plug: No selection | AU Plug, EU Plug, UK Plug, US Plug |
