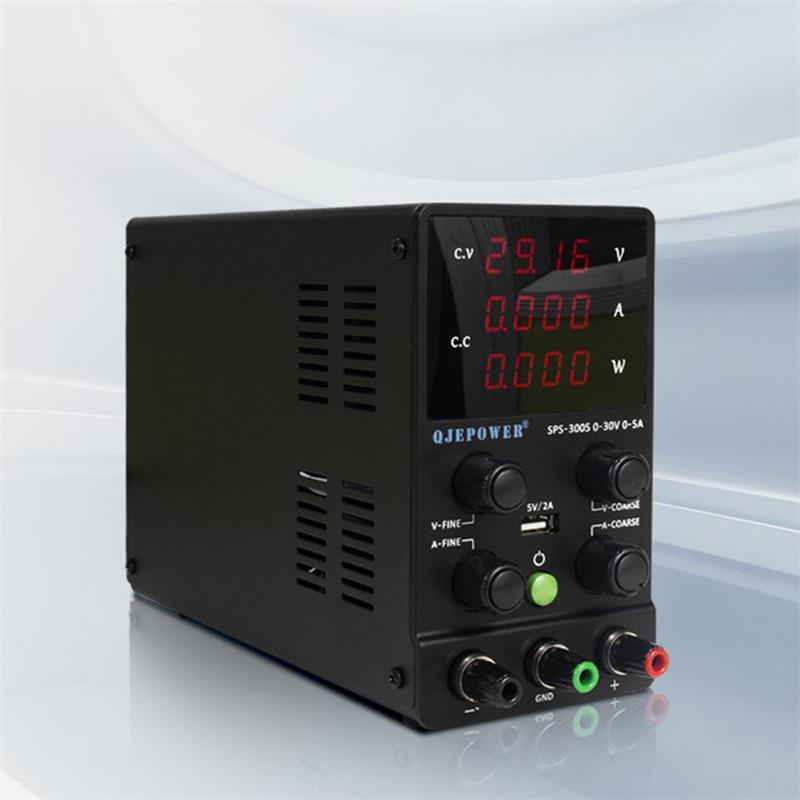

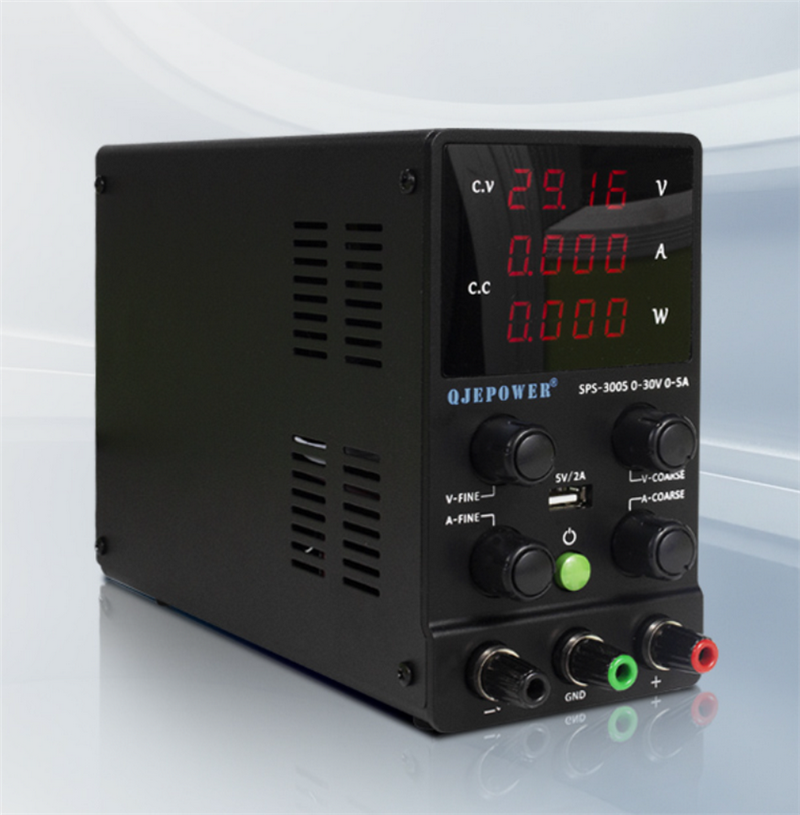

SPS3005 DC regulated power supply 30V SPS3010 DC power supply 30V10A

SKU: HA1977961

$112.10$114.67

-33%
Shipping fast worldwide
  • Dispatch:Usually will be shipped in 24 hours
  • Shipping Time:Expedited Express 6-8 business days
  • Secure Payment:Paypal,VISA,MasterCard
Guaranteed Safe Checkouttrust pay
SPS3005 DC regulated power supply 30V SPS3010 DC power supply 30V10A
$112.10$114.67

SPS3005 DC regulated power supply 30V SPS3010 DC power supply 30V10A
Description:
1. Switching power supply design, stable and reliable, light and beautiful
2. Input AC voltage:AC 220V, customized AC 220V/110V
3. SMD element
4. Automatic conversion of voltage and current stabilization
5. LCD display output with backlight
6. The coarse and micro potentiometers are set to adjust the voltage and current respectively
7. Current limiting protection, current limiting value can be set arbitrarily
8. Continuous operation under normal temperature
Specification:
SPS four digit series technical parameters
Model:SPS3005 SPS3010
Output voltage:0~30V 0~30V
Output current:0~5A 0~10A
Input voltage:220V+10%; 50Hz
Operating temperature:0 ?F C~40C; Relative humidity:<80% RH
Storage temperature:- 10 ?F C~70 ?F C; Relative humidity:<70% RH
Constant voltage state:voltage stability ?? 0.1%+3mv
Low voltage:0.2%~0.3%+3mv Load stability ?? 0.5%+3mv Ripple noise:s30mvrms
Constant current state:current stability s0.2%+3mA
Load stability SO. 2%+3mA
Ripple noise:?? 20mAems (effective value)
Display accuracy:0.5%+2 characters
Display resolution:Voltage:00.01V Voltage:00.01V
Current:0.001A Current:00.01A
Product size:24cm long x 8.5cm wide x 15.5cm high
Product weight:about 1.23KG about 1.23KG
Package size:33cm long x 13cm wide x 22cm high
Weight with package:about 1.75KG about 1.75KG
Fuse specification:5A (220V)
Note * The above parameters are at the ambient temperature of 25+5 ?F C; Relative humidity:<80% RH. And preheat for 30 minutes. The actual parameters will vary slightly.
Package Included:
1 x DC Power Supply
2 x Probe
1 x Power line
