TEOSAW DC293 293mm Wheelbase Deadcat 7 Inch Carbon Fiber Frame Kit Support DJI Air Unit for DIY RC Racing FPV Drone
Notice:Comes unassembled. Need build by buyers.
Specifications:
Brand:TEOSAW
Model:DC293
Item Name:293mm Wheelbase 7 Inch Empty Frame Kit
Wheelbase:293mm
Weight:Approx. 132g
Top Plate Thickness:2.0mm
Side Plate Thickness:2.0mm
Bottom Plate Thickness:2.0mm
Clamp Plate Thickness:2.0mm
Front Lip Thickness:2.0mm
Arm Plate Thickness:5.0mm
Weight:Around 132g
Recommend Propeller Size:7 inches
Flight Controller Mounting Holes:20*20mm(M3), 30.5*30.5mm(M3)
VTX Mounting Holes:20*20mm(M3)
Camera Mounting Width:20mm
Motor Mounting Holes:16*16mm(M3)
Internal Height:Approximately 23mm
Compatibility:DJI Air Unit, vista Air Unit, 915 antenna
Features:
1) Designed for high-performance flight with a 293mm wheelbase, accommodating 7-inch propellers.
2) Robust construction with strategically thickened plates and arms ensuring durability and crash resistance.
3) Versatile compatibility with both DJI and vista Air Units, along with 915 antennas.
4) Enhanced camera mounting flexibility with a 20mm width and generous internal space height of 23mm.
5) Comprehensive flight controller mounting options with dual hole spacing, allowing for customizations.
Recommend Parts:
| FC & ESC | 20x20mm iFlight BLITZ Mini F7 FC & Mini E55 4in1 ESC | 30.5×30.5mm Flashhobby F405 FC w/ 5V 9V BEC & 50A 4in1 ESC 3-6S Stack |
| Brushless Motor | HGLRC SPECTER 2806.5 1350KV 4-6S | FlysfishRC Flash 2806.5 1350KV 1750KV 4-6S |
| Propeller | Gemfan Flash 7040 7 Inch Long Range 3-Blade | HQProp DP7X4X3 3-blade 7 Inch |
| VTX | HGLRC Zeus nano VTX 25/100/200/350mW 5.8Ghz 40CH | / |
| Camera | Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL | Walksnail Avatar HD Kit |
| Lipo Battery | ZOP Power 22.2V 6000mAh 65C 6S LiPo Battery XT60 Plug | GEPRC VTC6 6S 22.2V 6000mAh Li-on Battery |
Package Included:

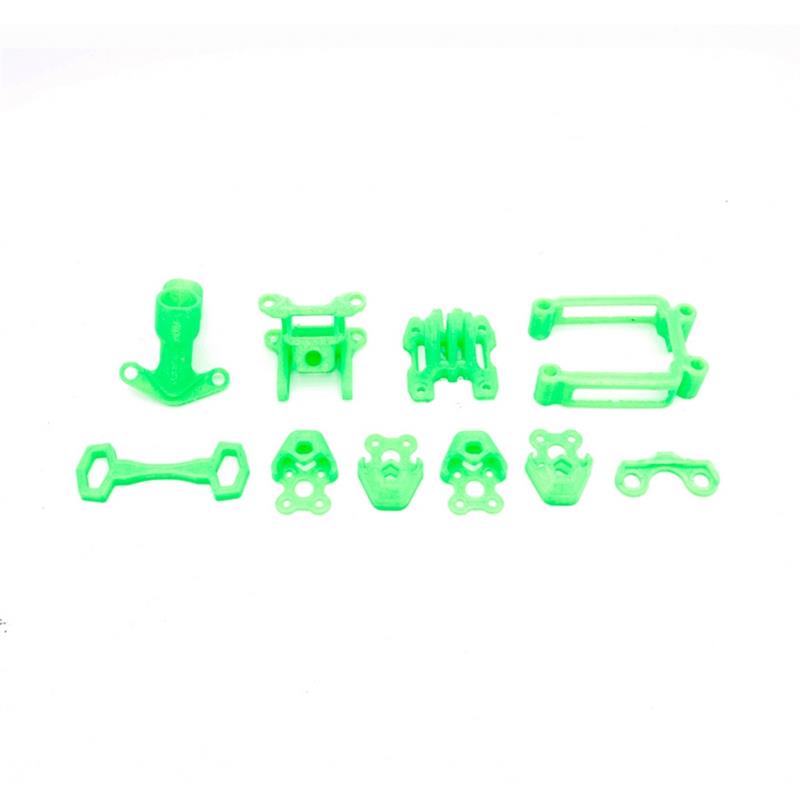

1 X DC293 Frame
1 X Antenna Seat for DJI Air Unit
1 X Surrounding Seat for DJI Air Unit
4 X Motor Seats
1 X Universal Action Camera Base
1 X Vista Antenna Seat (compatible with analog VTX antenna, 915 antenna)
1 X Front Lip Protection Seat
1 X Arm Fastening Accessory
Additional information
| Weight | 0.132 kg |
|---|---|
| Model: No selection | Frame Kit |
