EMAX ECO Micro Series 1407 2~4S 2800KV 3300KV 4100KV Brushless Motor For FPV Racing RC Drone
Specifications:
Brand:EMAX
Item Name:ECO 1407 2800KV/3300KV/4100KV CW Motor
KV:2800KV/ 3300KV/ 4100KV (Optional)
Framework:9N12P

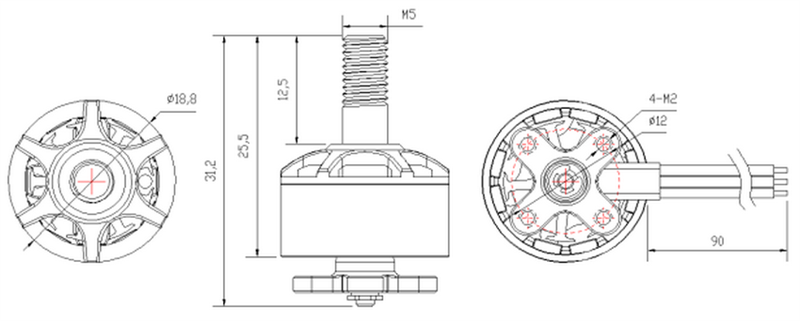

Length:31.2mm
Diameter:18.8mm
Weight:13.6g (W/O Silicone Wire)
Prop adapter:M5
Bearing Shaft:2mm
Lead:26#AWG 90mm
Shaft Thread:CW
| Idle Current (10V) | Internal Resistance | Recommend Lipo | Recommend Propeller | Peak Current (10S) | Max.Power (10S) | |
| 2800KV | 0.7A | 180m?? | 2~4S | 3~4Inch | 13.6A | 220W |
| 3300KV | 0.9A | 148m?? | 2~4S | 3~4Inch | 17.7A | 280W |
| 4100KV | 1.1A | 102m?? | 2~4S | 3~3.5Inch | 21.6A | 340W |
Features:
Precision durable ball-bearings
Steel shaft for high strength
Anodizing for finish and corrosion resistance
12x12mm hole pattern
Multi-strand copper windings
90mm 26 AWG silicone wire
Package Included:
1* ECO 1407 2800KV/ 3300KV/ 4100KV CW Motor
Additional information
| Weight | 0.04 kg |
|---|---|
| KV: No selection | 2800KV, 3300KV, 4100KV |
