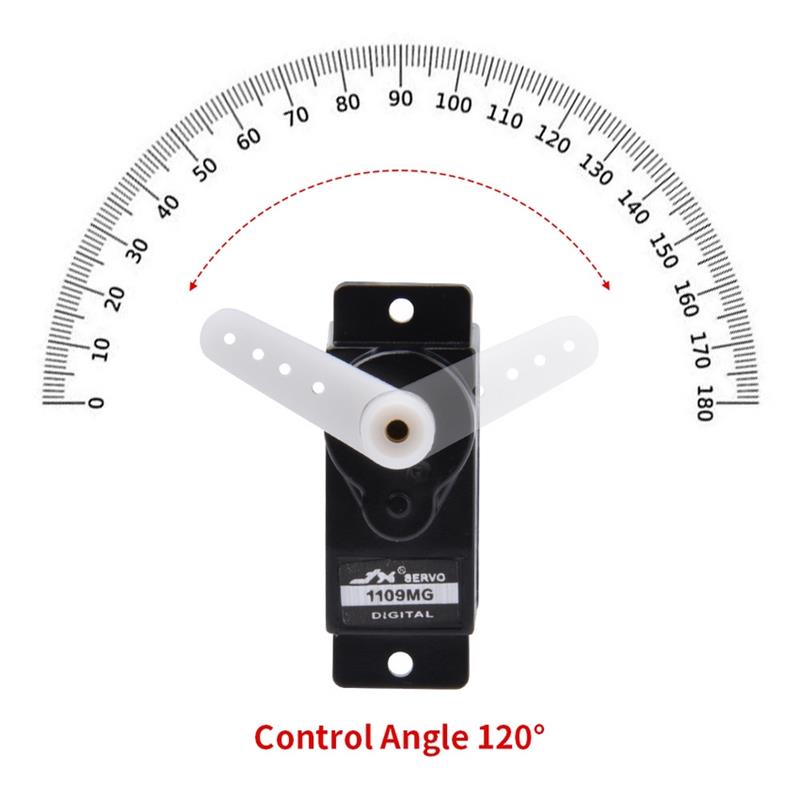

JX PDI-1109MG 9g Metal Gear Core Motor Micro Digital Servo for 450 RC Helicopter

JX PDI-1109MG 9g Metal Gear Core Motor Micro Digital Servo for 450 RC Helicopter
Specifications:
Brand:JX
Item:PDI-1109MG
Dead band:1??s
Working frequence:1520??s / 300hz
Motor:core motor
Operating Voltage:DC4.8~6.0 V
Operating Speed (4.8V):0.12sec/60ɳ
Operating Speed (6V):0.10 sec/60ɳ
Stall Torque (4.8V):2.2kg.cm (30.8oz/in)
Stall Torque (6V):2.5kg-cm (35.0oz/in)
Dimensions:23.2×12.0x25.5mm
Weight:10.0g (0.35oz)
Connector Wire Length:JR 180 mm (7.08in)
Usage:for RC Models
Features:
Optimized for RC Models:Designed specifically for RC Models, the JX Servo PDI-1109MG offers a blend of power and precision.
High-Speed Operation:Achieve quicker responses with operating speeds of 0.10sec/60ɳ at 6V, making your RC models more agile and responsive.
Strong Stall Torque:The servo provides robust stall torques of up to 2.5kg-cm at 6V, which is remarkable for a servo of this size.
Precision Metal Gearing:Features high-precision metal gears that are durable and designed for exact movements and positioning.
Miniature & Lightweight:With dimensions of 23.2×12.0x25.5mm and a weight of just 10.0g, this mini digital servo is ideal for applications where size and weight are factors.
Package Included:
1 x JX Servo PDI-1109MG 9g Metal Core Motor Gear Digital Servo
1 x Accessories Bag
