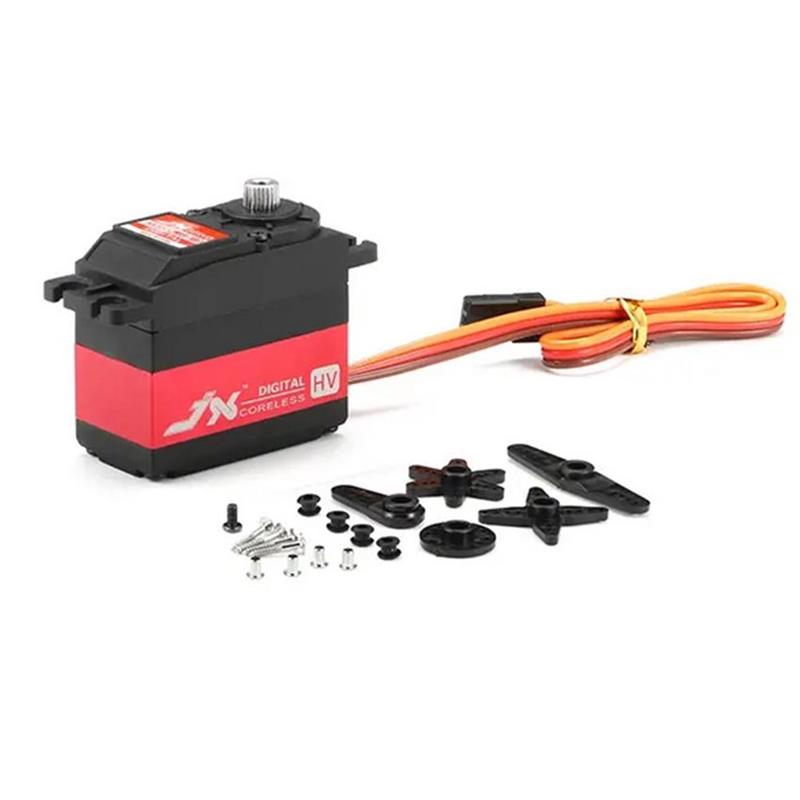

JX Servo PDI-HV5932MG 30KG Large Torque 180 High Voltage Digital Servo

JX Servo PDI-HV5932MG 30KG Large Torque 180 High Voltage Digital Servo
Specifications:
Brand:JX
Item:PDI-HV5932MG
Dead band:1??s 1520??s / 330hz
Max PW:500-2500us
(Remote control:90ɳ-120ɳ, 120 by the pwm 900-2100us
Control board:180ɳ, 180 by the pwm 500-2500us)
Actual Angle:172?W2ɳ
Motor:Coreless motor
Operating Speed:(6.0V) 0.12 sec/60ɳ
Operating Speed:(8.4V) 0.10 sec/60ɳ
Stall Torque:(6.0V) 25.2 kg.cm (239.55oz/in)
Stall Torque:(8.4V) 32.3 kg-cm (281.89 oz/in)
Dimensions:40.5X20.5X36.5mm /1.59 X0.80X1.43 in
Weight:59.3g
Bearing:2BB
Connector Wire Length:JR 265mm
Gear:25T (Futabas universal)
Features:
High-Performance & Voltage:This is a high-performance, high-voltage digital servo, capable of handling a wide range of applications where power and precision are required.
Exceptional Speed & Torque:Boasts incredible operating speeds of 0.10 sec/60ɳ at 8.4V and stall torques of up to 32.3 kg-cm, offering unmatched performance.
Quality Motor & Bearings:Equipped with a coreless motor and supported by dual ball bearings, the servo promises smooth, efficient operation.
High-Precision Metal Gear:Designed with high-precision metal gears that are robust and long-lasting, ensuring accurate positioning.
Durable Build:Comes with a CNC aluminous mesochite, reinforcing the servo for longevity and sustained high performance.
Package Included:
1 x JX Servo PDI-HV5932MG 180ɳ 30KG Servo
1 x Accessories Bag
