Sunnysky E-R2205 2205 2300KV 2500KV 3-4S Brushless Motor 5mm Shaft for RC Drone FPV Racing
Specifications:
Motor Model:E-R2205

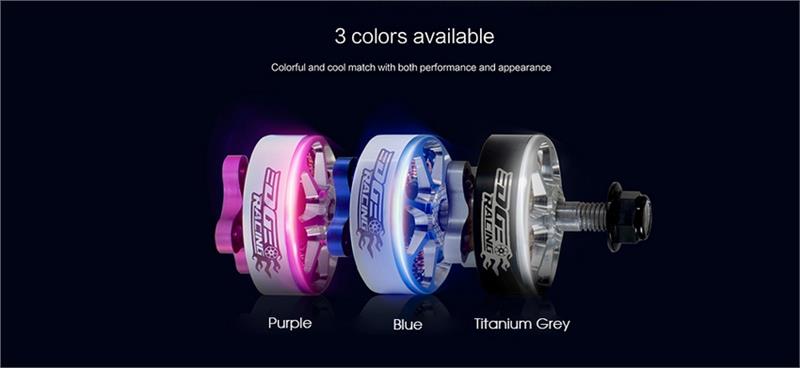

Color:Titanium Grey / Purple / Blue ( Optional)
KV:2300KV / 2500KV ( Optional)
Version:CW Screw Thread
| 2300KV | 2500KV | |
| Stator/Rotor Poles | 12N14P | 12N14P |
| Internal resistance | 53m?? | 46.7m?? |
| Motor size | ??27.4*31.5mm | ??27.4*31.5mm |
| Shaft diameter | 4mm | 4mm |
| Silicone wire size | 20AWG 120mm | 20AWG 120mm |
| Motor weight(wire included) | 30.5g | 30.5g |
| Motor weight(wire excluded) | 27.5g | 27g |
| Rated operational voltage | 3-4S | 3-4S |
| No-load current | 1.4A/10V | 1.45A/10V |
| Maximum continuous power | 670W | 756W |
| Maximum continuous current | 40A/10s | 45A/10s |
Features:
High-performance brushless motor optimized for FPV racing drones, quadcopters, and gliders.
Available in three striking colors, enhancing both performance and aesthetic appeal.
Efficient heat dispersion ensures longer life and stable performance during intense racing conditions.
Low internal resistance guarantees better efficiency, providing longer flight times and reduced battery strain.
Robust construction with precise specifications ensures a balance between power and weight, maximizing in-flight agility.
Package Included:
1x 2205 Motor
1x Motor Nut
1x bag of Screws
Additional information
| Weight | 0.03 kg |
|---|---|
| Quantity: No selection | 1 PC |
| KV: No selection | 2300KV, 2500KV |
| Color: No selection | Blue, Purple, Titanium |
