Kingbolen V310 OBD2 Scanner Support Multiple Languages Car Fault Code Reading Card and Diagnosis Tool
Specifications:
Brand:Kingbolen
Model:V310
Language:Multi Language Support
Product Name:OBD Code Reader
Dimensions:155*85*25mm
Storage Temperature:-30~65?F
Software Version:V310_FLASH_V01.01/ V310_MCU_V06.01
Hardware Version:V1.1
Working Voltage:DC9~16V
Working Current:80mA
Product Weight:200g
Support OBD-II on-board diagnostic communication protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. IS09141-2(5 baud init, 10.4Kbaud)
4. IS014230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (1 1bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

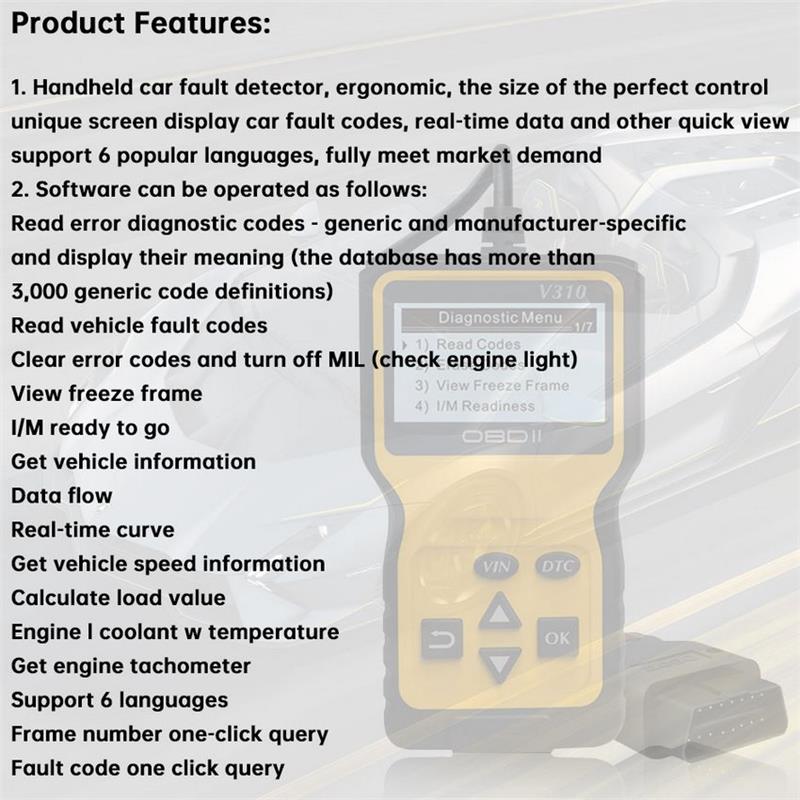

Features:
1. Handheld car fault detector, ergonomics, moderate size and perfect control.
2. Unique on-screen display of vehicle fault codes, real-time data, etc. for quick viewing, supporting 6 popular languages, fully meeting market demand
3. The software can perform the following operations:
— Read error diagnostic codes one by one general and manufacturer-specific, and display their meanings (the database has more than 3000 general code definitions)
— View Freeze Frame
— I/M Ready
— Data Flow
— Real-Time Curve
— Obtain Vehicle Speed Information
— Calculate Load Value
— Engine Coolant Temperature
— Get Engine Tachometer
— Support 6 Languages
— One-Click Query Of Vin
— Fault Code One-Key Query
Package includes:
1 X Car Fault Code Reader
Additional information
Weight | 0.3 kg |
---|
