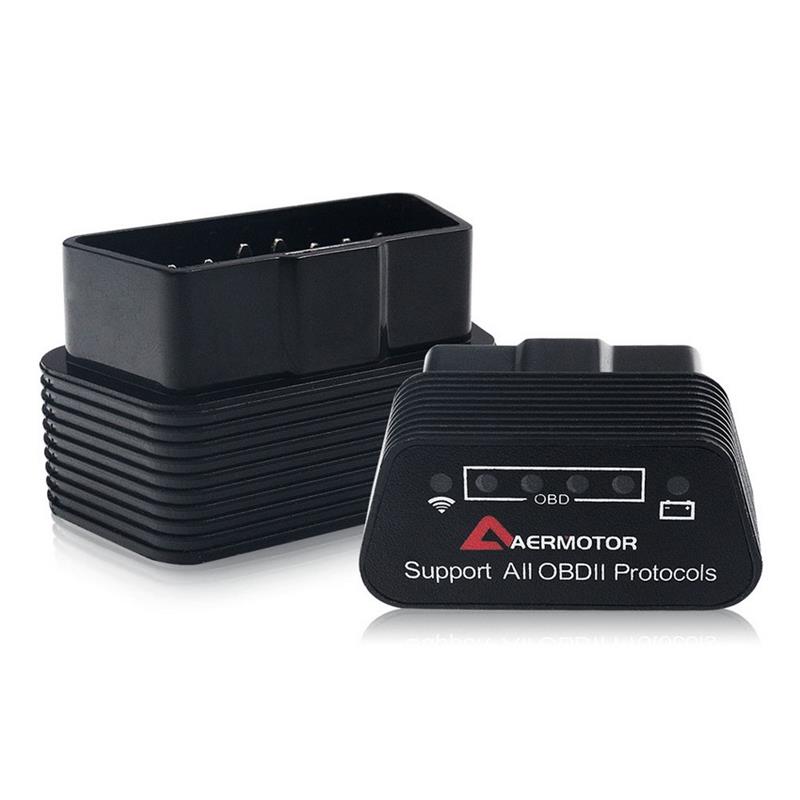

Aermtor WIFI ELM327 V1.5 Mini OBD2 Scanner for Multi-brands CAN-BUS as same as ELM327 wifi
Mini OBD2 wifi Scanner for Multi-brands CAN-BUS as same as ELM327 wifi . Supports All OBD2 Protocol works on Android Symbian, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).
Mini OBD2 WIFI Scanner for Multi-brands CAN-BUS as same as ELM327 wifi .
Top 4 Reasons To Get Mini OBD2 WIFI Scanner:
1.Version:V1.5
2 Works with all OBD-II compliant vehicles
3. Wireless (WIFI)
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Mini OBD2 WIFI Scanner Functions:
1:Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2:Clear trouble codes and turn off the MIL (‘Check Engine’ light)
3:Display current sensor data, including:
4:Engine RPM
5:Calculated Load Value
6:Coolant Temperature
7:Fuel System Status
8:Vehicle Speed
9:Short Term Fuel Trim
10:Long Term Fuel Trim
11:Intake Manifold Pressure
12:Timing Advance
13:Intake Air Temperature
14:Air Flow Rate
15:Absolute Throttle Position
16:Oxygen sensor voltages / associated short term fuel trims
17:Fuel System status
18:Fuel Pressure
19:Many others
Support System:Android and Windows
Working Voltage:9v ~ 16v
Working Current:35mA
Standby Current:25mA
Operating temperature:-40 ?} – 85 ?}
Working Humidity:less than 60%
Size:45mm * 25mm * 65mm
Compatible systems:
Software support platform:Windows XP, Windows 7/8, Android, Symbian .
Compatible software:
Window:ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android:Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian:OBDScope
Package List:
1pc x Mini OBD2 WIFI Scanner
1pc x CD
Additional information
Weight | 0.05 kg |
---|
