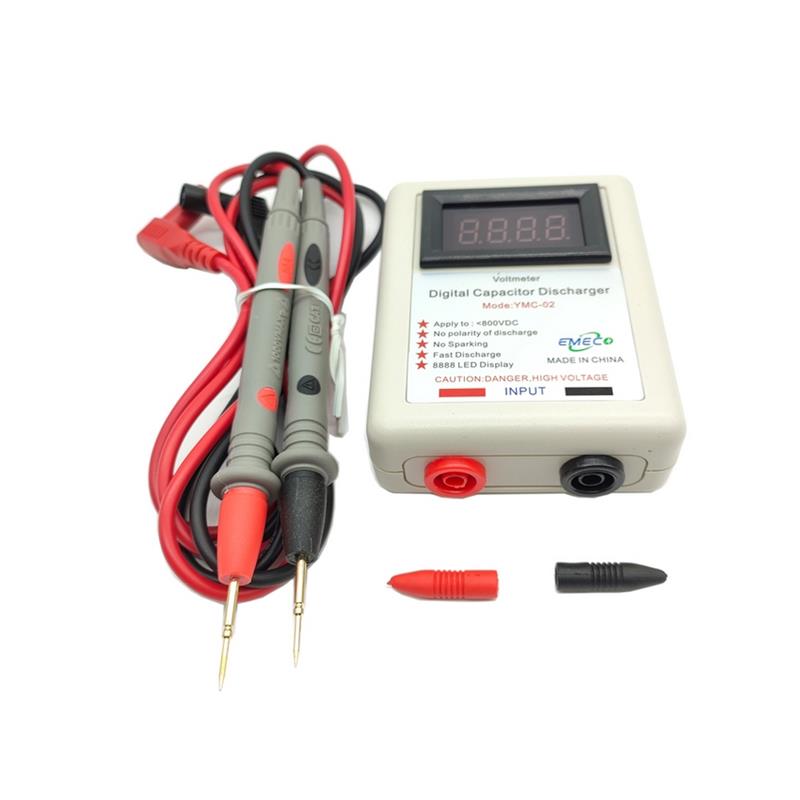

800V Digital Capacitor Fast Discharger High Voltage Discharging Tool Electronic Repair Display Sparkpen Matenance Protection

800V Digital Capacitor Fast Discharger High Voltage Discharging Tool Electronic Repair Display Sparkpen Matenance Protection
800V Digital Capacitor Fast Discharger High Voltage Discharging Tool Electronic Repair Display Sparkpen Matenance Protection
Product Characteristics/b>
– Small and light, easy to carry around.
– quick discharging without sparks
– Discharge does not distinguish between positive and negative poles
– The 4-digit 8888 digital tube displays the remaining voltage and can be used as a voltmeter.
– It is suitable for discharging DC voltage below 800V.
Specifications:
– Discharge Voltage range<800VDC
– LED color:Blue
– Max. discharge energy (joules):150J
– Product Net Weight:Capacitor discharger body only:77g, Capacitor discharger with probe:145g.
– Input port:4mm banana socket.
– Probe sleeve material:Antifreeze PVC.
– Applications:discharge capacitors on switch power supply, digital camera, High voltage big electrolytic capacitors etc.
– Function:discharge the capacitor to protect the product and operator from electric shock.
– User guide:Input the red and black probe tips into 4mm banana socket.
– The red and black probe tip contacts the two pins of the capacitor without distinguishing the positive and negative poles.
– The voltmeter will display the remaining voltage of the capacitor. – – – When the voltage is about 10V, the LED display will light off. At this time, the probe should go on discharging about 10 seconds, then it can be discharged below 5V.
How to exchange AC voltage to DC voltage:
– The voltmeter displays DC voltage. If it is AC voltage, it should be converted into DC voltage through simple calculation.
– AC voltage?Voltage display on voltmeter /0.9(conversion coefficient is 0.9)
lE. g:if voltage on the voltmeter is 207VDC, then actual AC voltage is 207VDC/0.9=230VAC
Note:
1. If it is used as a voltmeter, the measurement time should not exceed 20s when measuring the AC voltage 230V.
2. For the safe use of the discharge device, it is recommended to use it in situations below 600VDC.
3. Before discharging the capacitor, please disconnect the 230V AC voltage first.
4. Under 10V, the voltmeter does not display, but it can keep discharging.
5. The energy on the capacitor should not exceed the maximum 150J.
Package included:
1 x Capacitor discharger
2 x Test Probe
