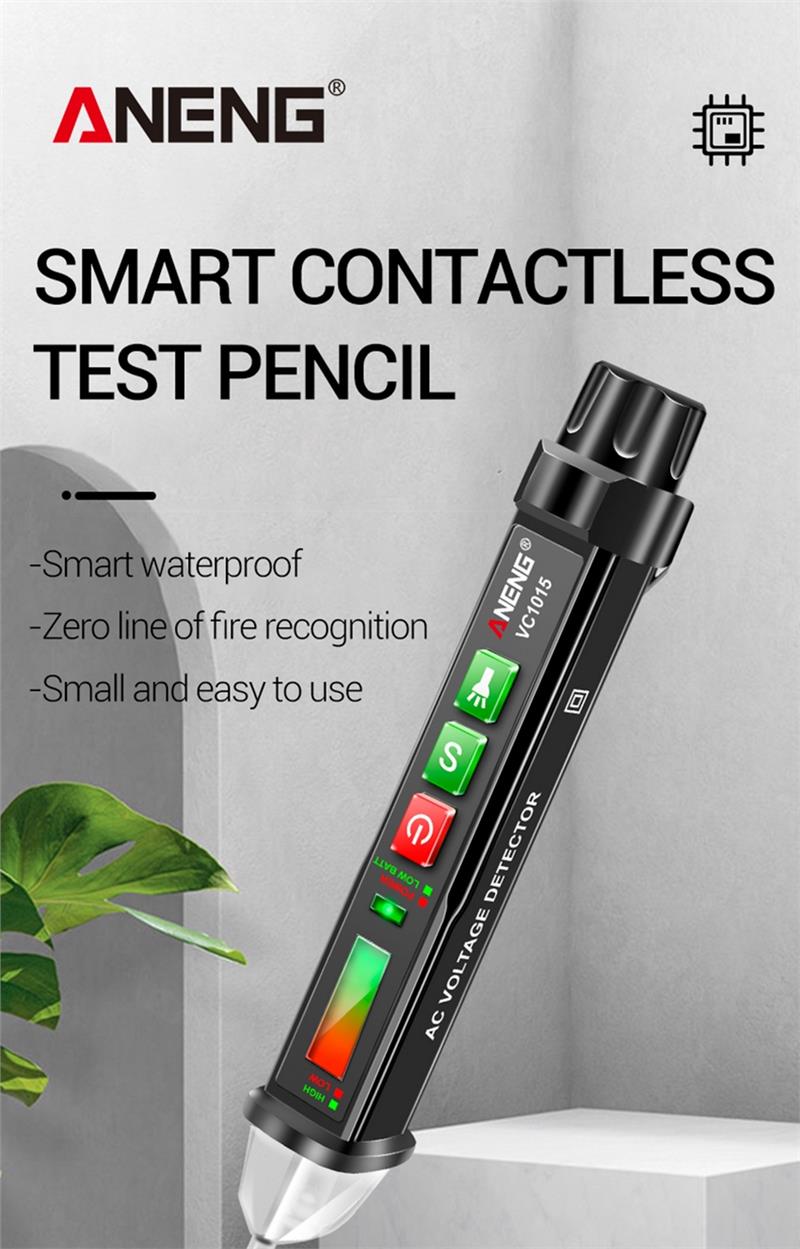

ANENG VC1015 AC12-1000V Smart Non-Contact Digital AC Voltage Tester Pen Current Electric Sensor Tester with LED Indicator

ANENG VC1015 AC12-1000V Smart Non-Contact Digital AC Voltage Tester Pen Current Electric Sensor Tester with LED Indicator
Description:
This product is a non-contact AC voltage detection pen with dual sensitivity switching, with sound and light alarm, flashlight lighting and other functions. It is a good tool for electricians to check and repair.
Features:
1. Small, light and portable, convenient and easy to use, and zero-fire line identification is more convenient and quick.
2. Partition wall detection, non-contact testing is safer and safer electrical testing
3. Brand new circuit board design, more sensitive, more stable and smarter
4. The LED flashlight lighting function can easily measure even in dim environments.
5. It will automatically shut down when there is no operation for 5 minutes and no AC voltage is detected. Low energy consumption ensures longer battery life.
Specification:
Product name:non-contact AC voltage tester

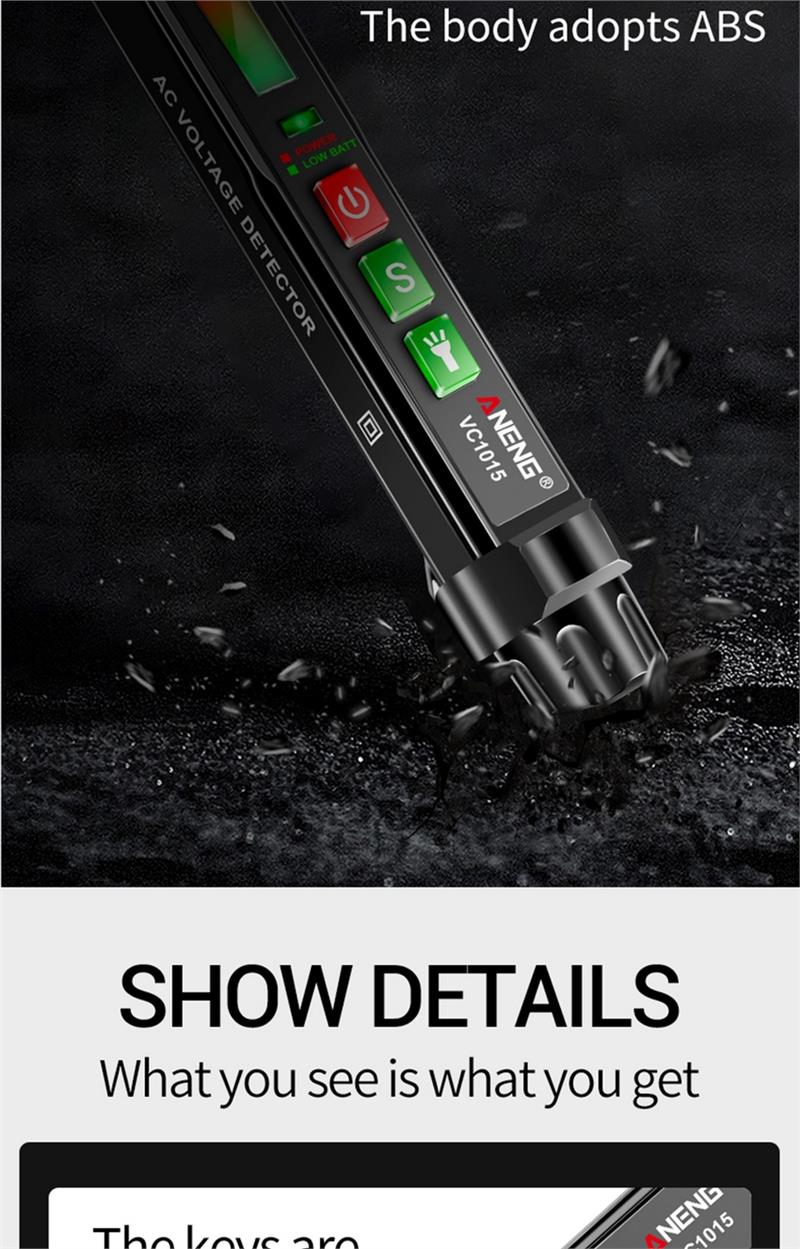

Material:ABS
Shape Of Probe:Flat
AC voltage measurement range:12~1000V
Frequency:50/60HZ
NCV sensitivity:high, medium, low
Alarm mode:sound and light
Flashlight:white LED lighting
Automatic shutdown:yes
Low battery indicator:Yes
Working power supply:2 x 1.5V AAA dry battery (not included)
Working temperature:0~40??/span>
Storage temperature:-10-50/span>
Dimensions:156 x 20 x 20mm
Weight:Approx. 50g
Instructions for use:
AC voltage detection
Insert the probe of the tester into a power outlet or close to a live wire. When the tester has a faulty AC voltage signal, the induced voltage signal indicator will flash. According to the detected signal indicator, the signal strength indicator will flash. Three colors of green, green+red or red are displayed, and the buzzer emits alarm sounds of different frequencies at the same time:
When an AC voltage signal is detected, the signal strength indicator is green (low);
When a higher AC voltage signal is detected, the signal strength indicator is red (high).
Turn on/off
Press and hold the power on/off button for two seconds, the buzzer will sound an alarm, the flashlight, intensity indicator, signal strength indicator band, power/battery indicator will flash once or wait for a time when the toggle switch button is low . When no AC signal is detected, the power indicator will change to the breathing indicator state in the current standby state. When the tester is turned on, press the power on/off button to turn off the tester.
Low/high sensitivity switch
The first is low sensitivity. The AC voltage range is about 48-1000V. When the ‘S’ button is pressed, the button indicator lights to indicate the current high sensitivity state, and the AC voltage range is about 12-1000V. Press the button to switch between low/high sensitivity.
Turn on/off flashlight
When the tester is turned on, press the flashlight on/off button to turn on/off the flashlight.
Automatic power off function
When the tester does not operate or the tester has no signal detection range, the tester will automatically power off.
Neutral/Fire Line Judgment
Separate the two wires to be tested as far as possible, and then use the probe of the tester to approach the wires. For sockets, insert the probe into the socket. The tester detects that the signal with strong induction is the live wire, and the one with weak or no induction signal is the neutral wire..
Battery undervoltage indication
When the battery voltage is low, the power/low battery indicator is steady red. Please replace the battery in time.
Package included:
1 x Non-contact AC voltage tester (battery not included)
1 x English user manual
