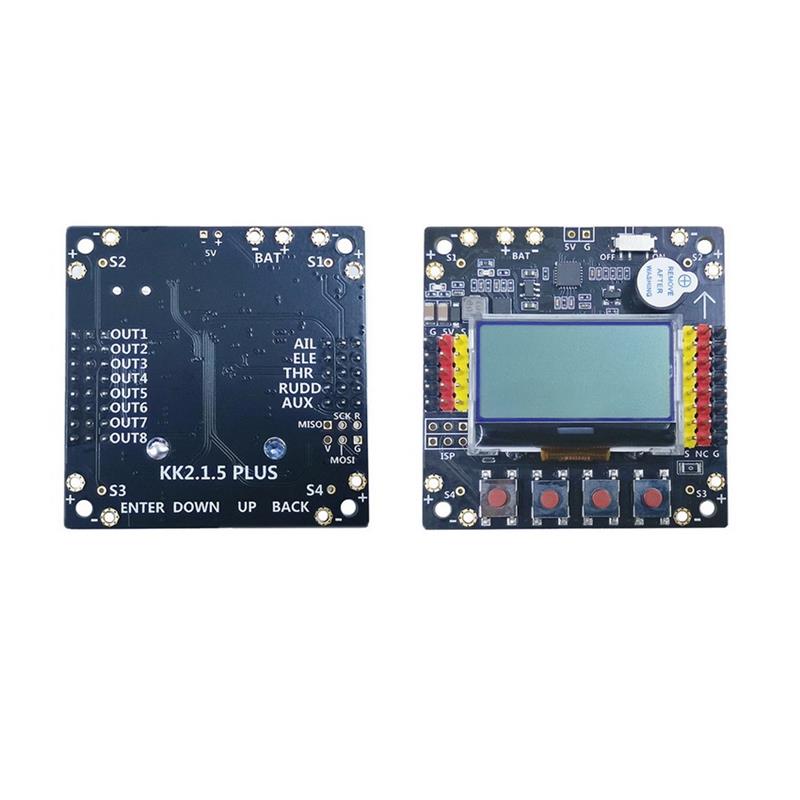

KK2.1.5 PLUS KK2 Flight Control Board Flight Controller VTOL V-Tail Self-Balancing Aerobatics for FPV Racing Drone RC Airplane

KK2.1.5 PLUS KK2 Flight Control Board Flight Controller VTOL V-Tail Self-Balancing Aerobatics for FPV Racing Drone RC Airplane
Overview:
The KK2.1.5 PLUS Flight Controller is equipped with an integrated power distribution board (PDB), on-board switch, and buzzer for streamlined installation and convenience.
The advanced self-balancing feature ensures smooth and stable flight, making it ideal for both beginners and experienced drone enthusiasts.
Powered by a reliable Atmega module and features gyro from InvenSense Inc., and accelerometer from Anologue Devices Inc.
The flight controller accepts firmware updates, offering compatibility with V1.19S1PRO or OpenAeroVTOL 1.5/1.6 for enhanced performance and features.
All settings and adjustments can be made directly on the flight controller’s built-in LCD screen with four buttons, eliminating the need for a separate computer unless a firmware upgrade is necessary.
Specifications:
Item Name:KK2.1.5 PLUS
Dimensions:52mm x 52mm x 12mm
Weight:19g
Integrated Module:Atmega
Gyroscope:InvenSense Inc.
Accelerometer:Anologue Devices Inc.
Self-Balancing Feature:Yes
Input Voltage:4.8-6.0V
Receiver Signal:1520us (5 channels in total)
Signal to ESC (Servo):1520us
Firmware:V1.19S1PRO or OpenAeroVTOL 1.5/1.6
Built-in Airplane Mode:
Twin-rotor Tri-rotor
Y6 four-axis + four-axis X
Six axis + Six axis X
Eight-axis + Eight-axis X
X8 +X8 X
H8 H6
V8V6
Aero 1S Aileron
Aero 2S Aileron
Flying wing
Single axis 2M 2S
Single axis 1M 4S
V-tail four-axis
English Manual, Click Here
Package Included:
1x KK2.1.5 PLUS Flight Control
1x Cable
