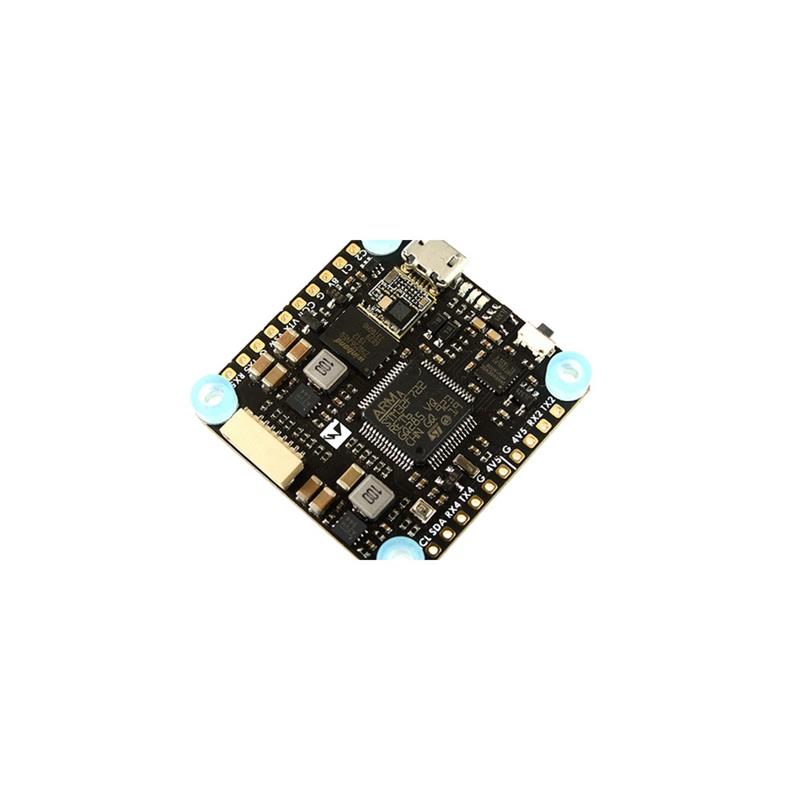

MATEK Systems F722-PX Flight Controller STM32F722 MPU6000 BMP280 Pixel OSD 32M Flash Blackbox for RC Drone Airplane
FC Specifications
MCU:216MHz STM32F722RET6
IMU:MPU6000 (SPI)
Baro:BMP280 (I2C)
OSD:Pixel OSD/FrskyOSD (Uart6)
Blackbox:32M-byte Flash memory (SPI)
Switchable Dual Camera Inputs
Switchable 5V/8V for VTX
PWM camera control:Yes
TR/SA VTX control:Yes
WS2812 Led Strip:Yes
Beeper:Yes
RSSI:Yes
Analog Airspeed sensor:Yes
Digital Airspeed sensor:Yes
Power
Input:9~36V (3~8S LiPo)
BEC:5V 2A cont. (Max.3A)
BEC:8V 2A cont. (Max.3A)
LDO 3.3V:Max.200mA
Battery Voltage Sensor:1:10 (Scale 110)
No Current Sensor built-in
FC Firmware
BetaFlight unified target:MATEKF722PX(MTKS)
INAV target:MATEKF722PX
Interface
6x Uarts with built-in inversion
1x Softserial_Tx option
10x Dshot/PWM outputs
1x I2C
4x ADC (VBAT, Current, RSSI, AirSpeed)
1x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1/S2/S3/S4)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
Physical
Mounting:30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions:36 x 36 x 5 mm
Weight:6.5g
Package Included
1x FC F722-PX
6x Silicon grommets M4 to M3
1x SH1.0_8pin cable 5cm
Additional information
| Weight | 0.012 kg |
|---|
