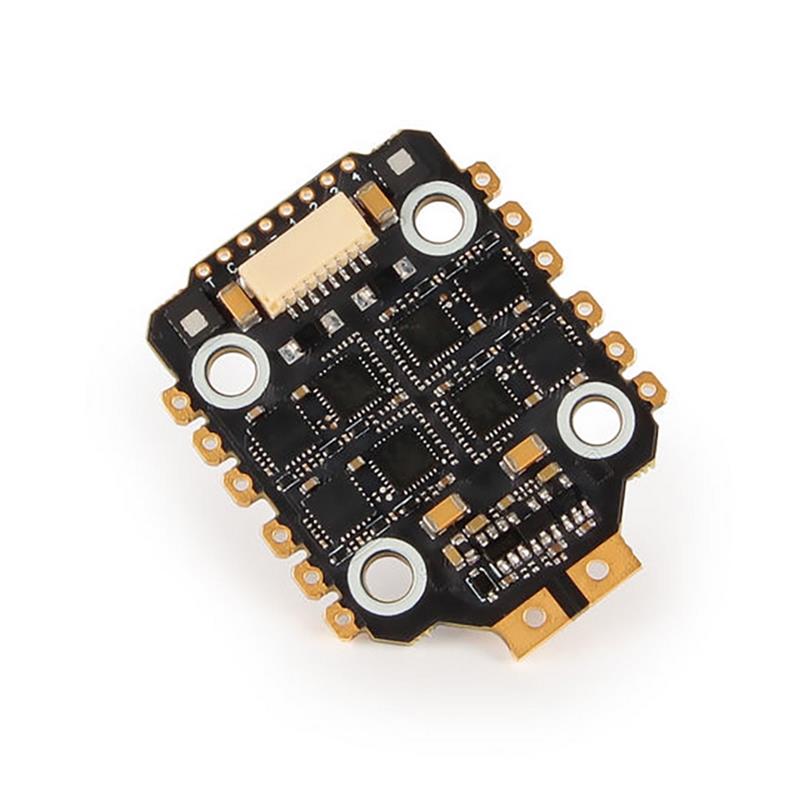

20x20mm Holybro Tekko32 F4 4in1 Mini 50A BL_32 Brushless ESC 4-6S Support ESC ESC Telemetry DShot 150/300/600/1200/2400 for RC Drone FPV Racing
Specifications:
Brand:Holybro
Model:Tekko32 F4 4in1 Mini 50A
Continuous Current:50A x4
Burst Current:60A x4
Battery Supports:4-6S
PWM Frequency:16k to 96k
Supports DShot 150/300/600/1200/2400
Supports MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Mounting holes:3.6mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)
Dimension:32 x 40 mm
Features:
High-quality MOSFETs:Ensures low internal resistance & heat generation with individual metal heatsink for long-lasting performance.
F4 MCU @ 150Mhz:Provides faster speed compared to F3 @108Mhz & F0 @48Mhz.
Separate Drive & Control Circuit:Effectively reduces electrical interference to the control circuit.
Broad Support:Accommodates a variety of setups with support for DShot 150/300/600/1200/2400, MultiShot/OneShot/Proshot/PWM etc.
Onboard Analog Current Sensor:Allows accurate current measurement and ESC telemetry for better flight control.
PIN MAP:
Package Included:
1 X Tekko32 F4 4in1 mini 50A ESC
4 X M2 Anti-Vibration Silicone Grommet Inserts
4 X M3 Anti-Vibration Silicone Grommet Inserts
1 X Electrolytic Capacitor (1000uF 35v)
1 X 8pin to 8pin 1mm pitch 65mm cable
1 X 8pin to 8pin 1mm pitch 25mm cable
Additional information
Weight | 0.04 kg |
---|
