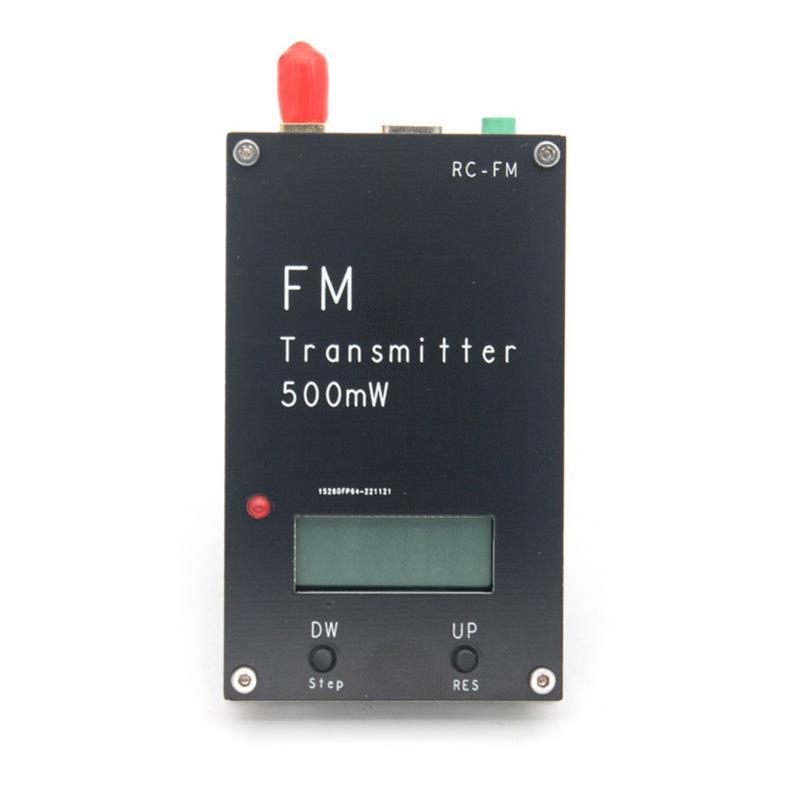

2000M 0.5W FM Transmitter Frequency LED display Stereo Digital 88M-108MHz FOR DSP Radio broadcast Radio Station Receiver
Features:
Wide Frequency Range:With an output frequency range of 88-108MHz with 100KHz steps, you can select from 200 different frequencies to find the perfect channel for your broadcast.
Clear Signal Quality:High signal-to-noise ratio of 63dB and only 0.05%THD ensures your listeners receive a crystal-clear sound.
Compact & Portable:Weighing just 120g, this compact transmitter is easily portable, making it perfect for on-the-go broadcasting or for stationary use.
Easy Power Supply:Uses a convenient USB Type C interface for power supply, with a supply voltage of 5V and consumption current not exceeding 500mA.
Long Transmission Range:In an open field, the transmitter can reach a maximum distance of up to 2000M, ensuring wide coverage for your broadcast.
Specifications:
Output frequency:88-108MHz 100KHz step (200 frequency transmissions)
Display:LCD
Output power:0.5W
Supply voltage:5V USB-type-C
Supply current:500mA
Input Signal:Audio Stereo 3.5MM
Signal-to-noise ratio:63dB0.05%THD
Weight:120g
Transmitting interface:SMA female head with external thread and internal hole
Antenna requirements:50 ohm pure resistive load, VSWR not higher than 1.5
How to Use:
Connect the antenna to the transmitter.
Connect the power supply using the included USB Type C cable.
Connect your audio source to the transmitter using the 3.5mm male audio cable provided.
Package Included:
1 x 0.5W FM Transmitter
mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’>
Additional information
Weight | 0.12 kg |
---|
