GEPRC MOZ7 320mm Wheelbase 6mm Arm Thickness Durable 7 Inch Long Range Frame Kit Support Analog HD DJI O3 for DIY FPV Racing Drone
Notice:Comes unassemble. Need build by buyers.
Specification:
Brand:Geprc
Model:MOZ7
Item Name:320mm Wheelbase 7 Inch Frame Kit
Dimensions:280mm?310mm
Wheelbase:320mm
Top plate:3.0mm
Bottom plate:3.0mm
Arm plate:6.0mm
Splint plate:3.0mm
Camera mount:2.0mm
VTX cover:1.5mm
FC mounting hole:30.5mm*30.5mm
VTX mounting:20mm*20mm/25.5mm*25.5mm/30.5mm*30.5mm (the maximum external size supports 30mm*30mm)
Camera installation size:19mm/20mm
Propeller:7-7.5 inches
Weight:310.0g (without battery)
Features:

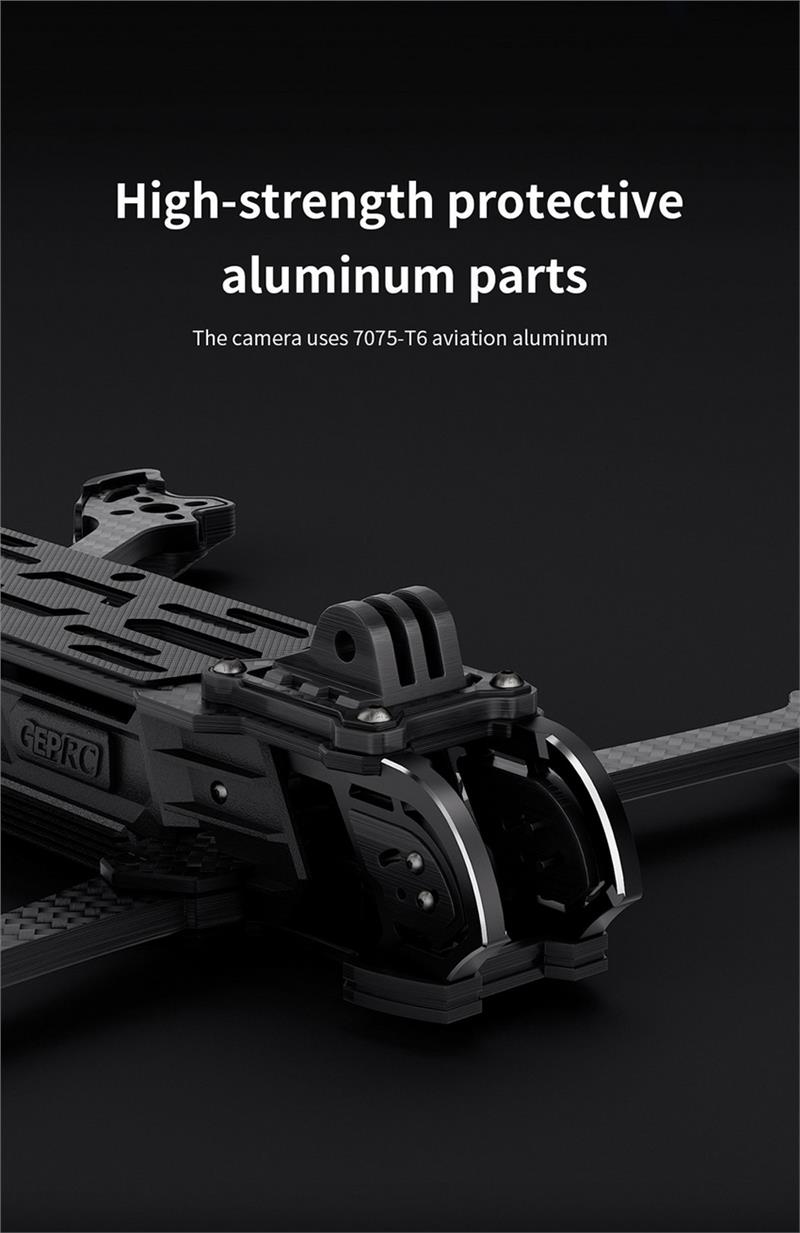

CNC Aluminum Alloy Camera Mount:Designed for durability and strength, this drone frame supports 19mm and 20mm camera mounts, offering a broad range of compatibility for various camera types.
Personalized Protective Side Plate:Our custom side plate provides effective protection for internal electronic components during flight, ensuring a reliable and safe flying experience. It supports up to 30.5?30.5mm flying tower and 30mm*30mm video transmission installation.
H-Shaped Frame Design for Smooth Flight:The unique H-shaped frame design promotes a stable attitude and a smooth flight experience. This design is particularly suited to long-range flights.
VTX Cooling Fins:With added VTX cooling fins, you can be assured of stable drone operation throughout your flight. These cooling fins help maintain an optimal operating temperature, allowing extended use without overheating.
Universal Camera Compatibility:The GEPRC MOZ7 Drone Frame is compatible with a range of cameras, including GoPro, Insta 360 Go2, and Caddx Peanut. Enjoy clear, stable shooting effects no matter which camera you choose.
Package Included:
1 x MOZ7 Empty Frame
4 x HQ 7.5?3.5?3ι4pair?@
2 x M20*250mm battery straps
2 x M20*300mm battery straps
2 x Battery silicone pads
1 x Set of screws
1 x Print package
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 x M5 wrench
Additional information
Weight | 0.31 kg |
---|---|
