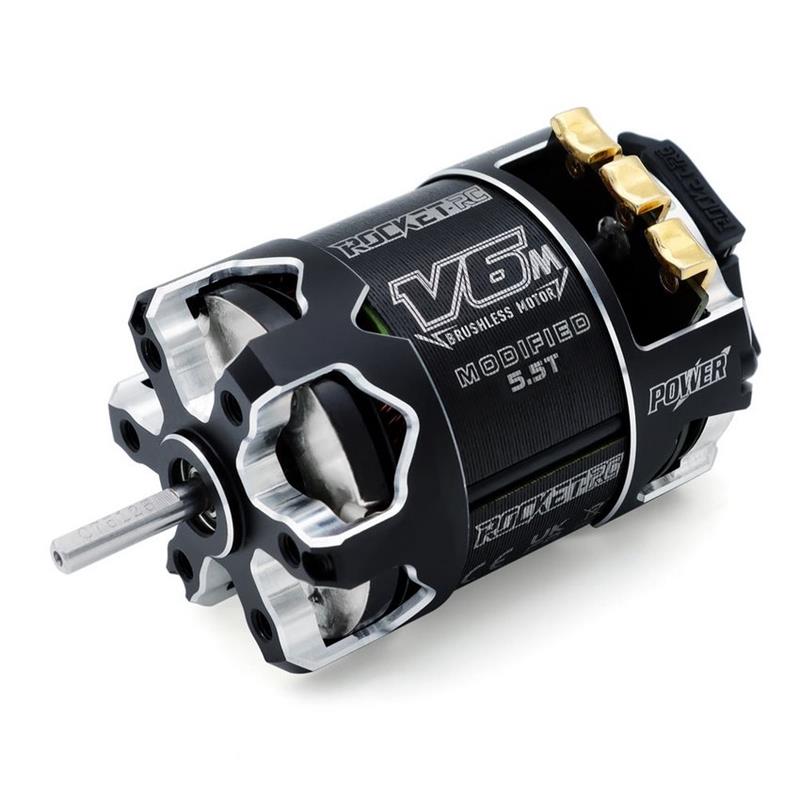

Surpass Hobby Rocket-RC 540 V6M MODIFIED Sensored Brushless Motor for 1/10 Racing RC Car Vehicles Models Parts 3.5T/4.5T/5.5T/6.5T/7.5T/8.5T/9.5T

Surpass Hobby Rocket-RC 540 V6M MODIFIED Sensored Brushless Motor for 1/10 Racing RC Car Vehicles Models Parts 3.5T/4.5T/5.5T/6.5T/7.5T/8.5T/9.5T
Description:
Item Brand:Surpass Hobby
Item Number:540 V6M
Item Name:Brushless motor
Material:Metal
Color:Black
The Size of the Motor:Length 52.3mm,diameter 38.5mm,shaft diameter is 3.175mm,length of extended shaft is 16mm
The Weight of the Motor:About 165g
Fit For:1/10 racing brushless rc cars vehicles models
Recommended ESC:T160A V2 esc(not included)
Specification:
KV:9700/7800/6300/5500/4800/4350/3800KV
Turns:3.5T/4.5T/5.5T/6.5T/7.5T/8.5T/9.5T
Max Watts:600W/490W/430W/390W/360W/340W/290W
Lipo:1-3s(3.5t is 1s,4.5t-7.5t is 1-2s,8.5t and 9.5t is 1-3s)
Max Amps:130A/108A/100A/94A/86A/80A/70A
Rotor Poles:2
IO(7.4V):10.2A/8.0A/5.8A/4.9A/4.2A/3.5A/3.0A
Resistance:0.0016/0.0029/0.0041/0.0059/0.0073/0.0098/0.0135
Rotor Size:??12.1/12.3*??5*24.5mm
TYPE:MODIFIED
Features:
All-new and unique stator design to provide strong torque and high RPM
CNC machined 7075 aluminum heat sink housing
American standard high purity copper wingings for maximum conductivity
Stator electroplated to prevent ageing and rusting
Adjustable timing & dual sensor port
Detachable/replaceable high speed rotor
Patented design of front and rear splicing structure
Internal titanium alloy heat sink to reduce heat loss
NSK R2ZZ beaing original imported from Japan,ensuring smooth operation
Thicker gilding gold plated copper for maximum non-resistant input
The explosion-proof rotor made of NdFeB,TURBO speeds up to 80,000 RPM
BRCA& EFRA approved,meets ROAR&IFMA specifications
Package Included:
1x 540 V6M Sensored Brushless Motor
