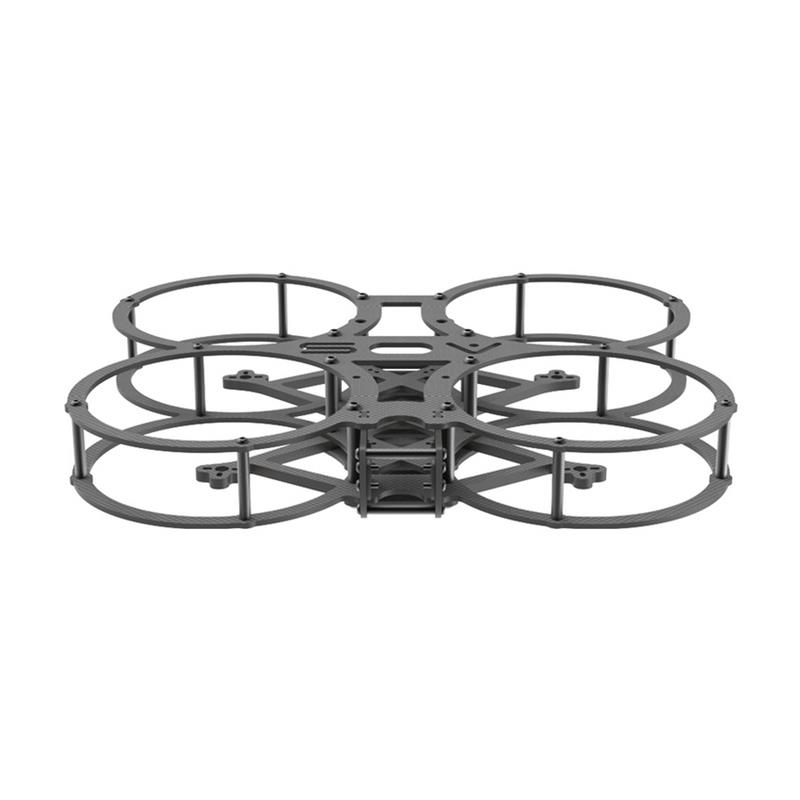

iFlight AOS Cine35 EVO 161.5mm Wheelbase 4mm Arm Thickness 3.5 Inch Frame Kit Support DJI O3 Air Unit for DIY RC Drone FPV Racing
Notice:Comes unassemble. Need build by yourself.
Description:
The latest version of this frame is the AOS Cine35 EVO. It has updated camera plates to support the DJI O3 Air Unit as well as all other 19-20mm FPV cameras.
Features:
-Designed for 3.5 inch props, no props in view.
-4 mm Truss Arms.
-Up to three 25.5 or 20 mm stacks (front, center and rear).
-One 30.5mm stack (center).
-32x32mm mounting holes for Gopro in top plate with installed press-nuts.
-XT60 pass through top plate.
-Captive battery strap slots for lengthwise or toilet tank mounting.
-Fits 19-20mm FPV cameras including DJI O3.
-Recommended motor size 2004.
-9×9 up to 12x12mm motor mounting.
-Standoffs, carbon and hardware included.
Specifications:
Product Name:AOS Cine35 EVO Frame Kit
Frame wheelbase:161.5mm
Frame Dimension:L128*W99*H35 mm / L233*W204*H35 mm (with propguard)
Arm Thickness:4mm
Top Plate Thickness:2mm
Bottom Plate Thickness:2mm
Upper Plate Thickness:2mm
Motor Mounting:9x9mm / 12*12mm
VTX Mounting:20*20/?2mm / 25.5*25.5/?2mm
Recommend Parts:( NOT Included)
FC & ESC:25.5×25.5mm GHF411AIO BMI F4 OSD FController with 5V 10V BEC AIO 40A B_S 4In1 ESC
20x20mm MAMBA MK4 F722 Mini F7 MPU6000 FC & F40 40A 128K BL_32 4in1 ESC Stack Support DJI O3 Air Unit
Brushless Motor:GEPRC GR2004 2004 2150KV 4S / 3150KV 6S Brushless Motor 5mm Shaft
Propeller:HQProp T3.5×2.5×3 3525 3.5 Inch Propeller 3-Blade
FPV Camera ( Analog):Caddx Ratel 2 1/1.8 Inch Starlight 1200TVL 2.1mm Lens FPV Camera
HD Digital:DJI O3 Air Unit HD Digital System
Lipo Battery:ZOP Power 14.8V 850mAh 100C 4S LiPo Battery XT30 Plug
iFlight Fullsend 22.2V 1400mAh 130C 6S LiPo Battery XT60 Plug
Packing List:
1 x AOS Cine35 EVO Frame Kit
1 x Screw Bag
1 x Battery Strap
Additional information
Weight | 0.25 kg |
---|---|
Model: No selection | Frame Kit |
