T-Motor P1804 1804 2400KV 6S / 3400KV 4S Unibell Brushless Motor 1.5mm / 5mm Shaft for 3 Inch 3.5 Inch 4 Inch Toothpick RC Drone FPV Racing
Specification:
Brand:T-Motor
Model:P1804
Item Name:1804 2400KV 6S / 3400KV 4S Brushless Motor
KV:2400KV / 3400KV ( Optional)
Shaft Diameter:1.5mm / 5mm ( Optional)
Configuration:12N14P
| KV | Shaft Diameter | Voltage | Weight ( incl. cable) |
Cable | Idle Current (10V) |
Max. Power (10S) |
Peak Current ( 10S) |
| 2400KV | 1.5mm | 6S | 13.78 | 24AWG 110mm | 0.45A | 379.8W | 16A |
| 3400KV | 1.5mm | 4S | 14.3 | 24AWG 110mm | 0.8A | 318.3W | 20.2A |
| 2400KV | 5mm | 6S | 14.3 | 24AWG 150mm | 0.51A | 379.8W | 16A |
| 3400KV | 5mm | 4S | 14.9 | 24AWG 150mm | 0.79A | 318.3W | 20.2A |
Features:
– Suit For 3 3.5 4 inch Fpv Drone
– Light weight design

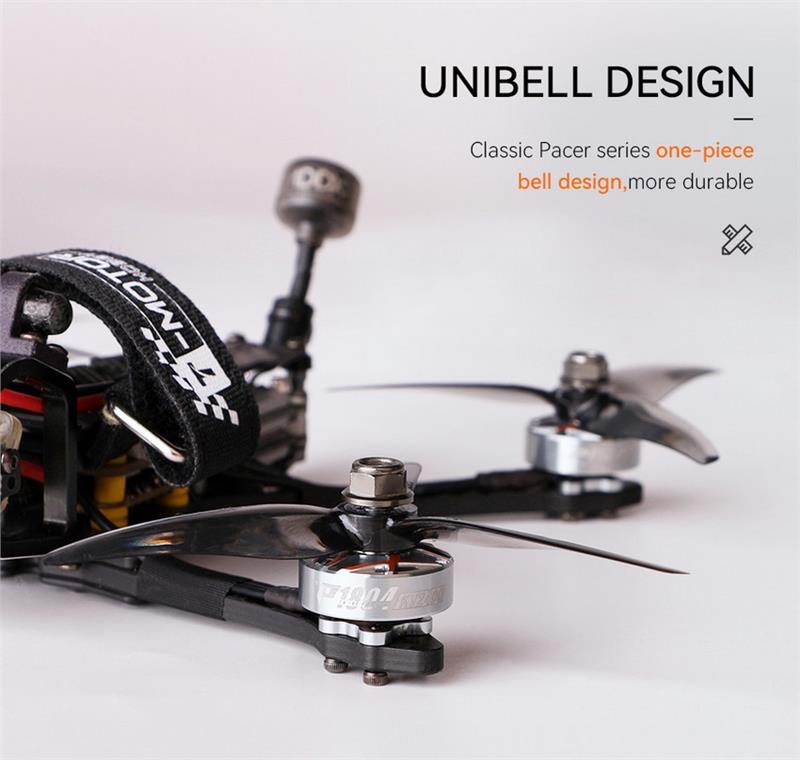

– Unibell Desigh
Diagram Picture and Test Table
Package Included:
1x P1804 Motor
1x bag of Screws
Additional information
| Weight | 0.015 kg |
|---|---|
| KV: No selection | 2400KV, 3400KV |
| Shaft Diameter: No selection | 1.5mm, 5mm |
