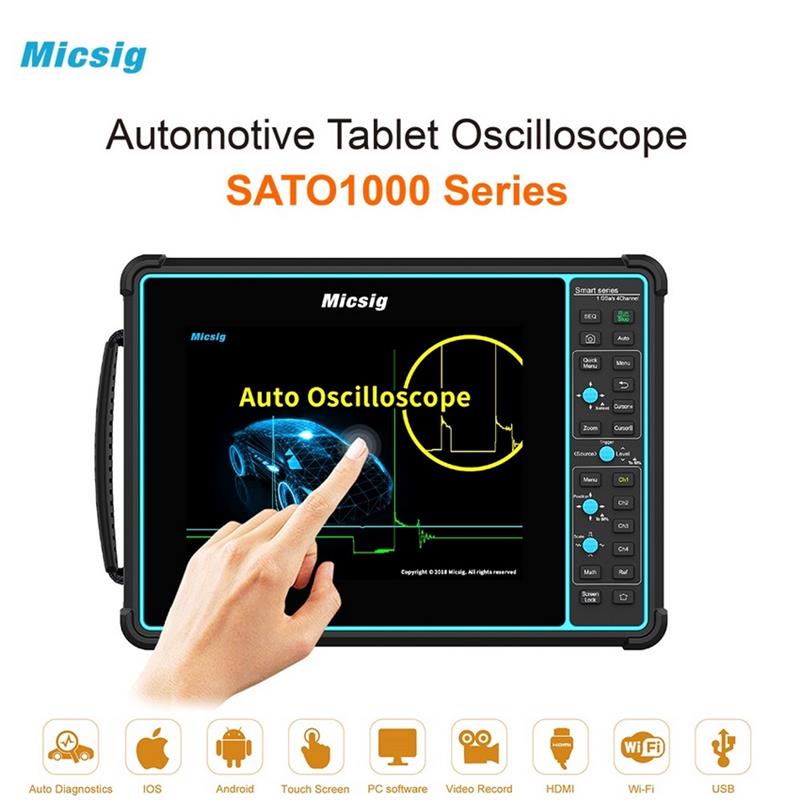

Micsig SATO1004 Automotive Tablet Oscilloscope 4 Channels 100MHz 1G Sa/S Digital Scopemeter APP Control
Features:
Portable tablet design with all-in-one functions
Comprehensive auto diagnostic presets package
Powerful signal capture and analysis capabilities
Support PC & Smartphone App remote control
HDMI function for training & demonstration
Specification:
Model:SATO1004
Analog Channels:4
Bandwidth:100MHz
Sampling Rate (Max.):1GSa/S (single channel)
Memory Depth:70Mpts (single channel)
Waveform Capture Rate (Max.):130,000 wfms/s

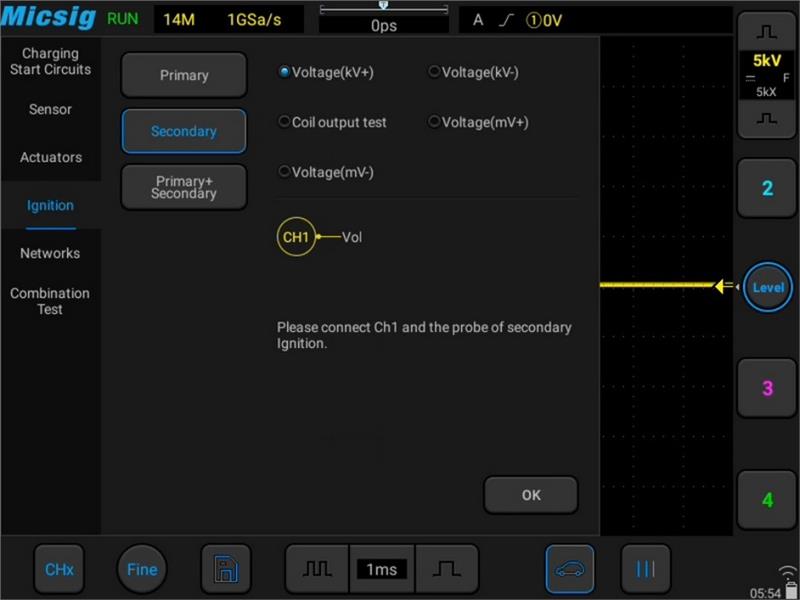

Support Tests:Charging Circuits, Starter Circuits, Sensors, Actuators, lgnition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests
Bandwidth Filter:Full bandwidth, Low pass
Interfaces:Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display:Industrial 8′ TFT-LCD (800*600), 14*10 grids
Dimension 1 Net Weight:265* 192*50mm 1 1.9kg (with battery)
Battery:Built-in 7.4V, 7500mAh, Li-ion battery
Package Includes(SATO1004 Standard Kit):
1 x SATO1004 Automotive Tablet Oscilloscope
1 x Power Cord (EU Plug)
1 x Adapter
2 pair x Alligator Clips
2 pair x Soft Pin Probes
4 x BNC to Banana Leads
2 x Passive Probes
Additional information
| Weight | 3.187 kg |
|---|
