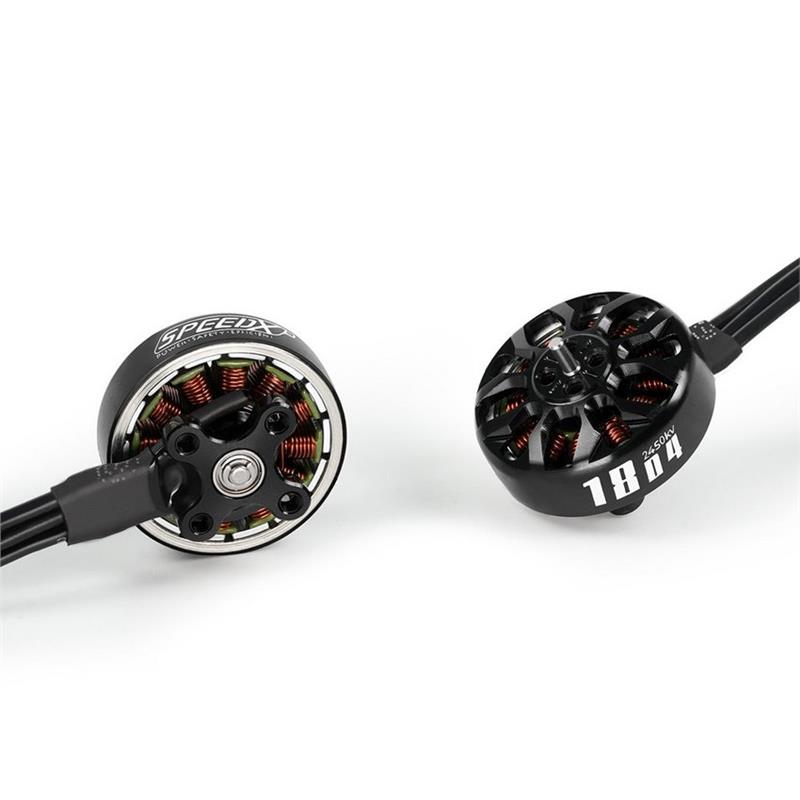

Geprc SPEEDX2 1804 2450KV 4-6S / 3450KV 2-4S Brushless Motor for Cinebot30 HD 3 Inch Whoop 3-4 Inch Toothpick Long Range FPV Racing Drone RC
Features:
1. Lightweight design, only 13.g (13CM Wire)
2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely quick response speed.
4. High strength motor structure, outstanding durability.
5. Suitable for 3ʼ whoop FPV, 3-4ʼ Toothpick & Long Range FPV.
Specifiction:
Brand:Geprc
Model:SPEEDX2 1804
Item Name:1804 2450KV 4-6S / 3450KV 2-4S Brushless Motor
Configuration:12N14P
Magnet:N52H ARC
Stator Diameter:18mm
Stator Height:4mm
Shaft Diameter:?2mm(in)?1.5mm(out)
Size:?22.74mm*13.2mm
Lead Wires:24#AWG 150mm
Mounting Holes:12mm x 12mm(M2 Screw)
Color:Black / Black + Cyan
Weight:13.2 g (13CM Wire)
| 2450KV | 3450KV | |
| Input Voltage | 4-6S | 2-4S |
| Max Continuous Power(W) (3S) | 452.2W | 404.8W |
| Max Current (5S) | 18.8A | 25.3A |
Package Included:
1x SPEEDX2 1804 Motor
5x M2*6mm Screw
5x M2*8mm Screw
Additional information
| Weight | 0.02 kg |
|---|---|
| KV: No selection | 2450KV, 3450KV |
| Color: No selection | Black, Green |
