HGLRC M100 MINI GPS Module M10 Chip Built-in Ceramic Atenna for 2-7 Inch Freestyle Long Range FPV Racing RC Drone

HGLRC M100 MINI GPS Module M10 Chip Built-in Ceramic Atenna for 2-7 Inch Freestyle Long Range FPV Racing RC Drone
About this product:
Using the new 10th generation UBLOX chip design, the HGLRC M100 GPS positioning is fast and accurate. The small 15x15mm size can be
loadedon 2-7 inch drones. The ceramic antenna and externally expanded PCB design allow M100 MINI GPS to receive satellite signals
effectively. At the same time, it supports receiving GPS, Galileo, and BDS three satellite signals, allowing you to locate in any area quickly.
For the convenience of everyone, we have designed onboard LED indicators, including power indicators and positioning PPS indicators, so
that you can know the working status of GPS well.
Features:
Using the new 10th generation UBLOX chip design, fast and accurate positioning.
Small size, compatible with 2-7 inch traversal Drone on the market
Selected ceramic antenna and externally expanded PCB design to effectively receive satellite signals
Support GPS, Galileo, BDS three-mode positioning, and fast positioning in any area
Onboard POWER and PPS indicator lights, the working status is clear at a glance
Compatible power supply, support 3.3V-5V DC power input
Using UBLOX output protocol and 10Hz output frequency

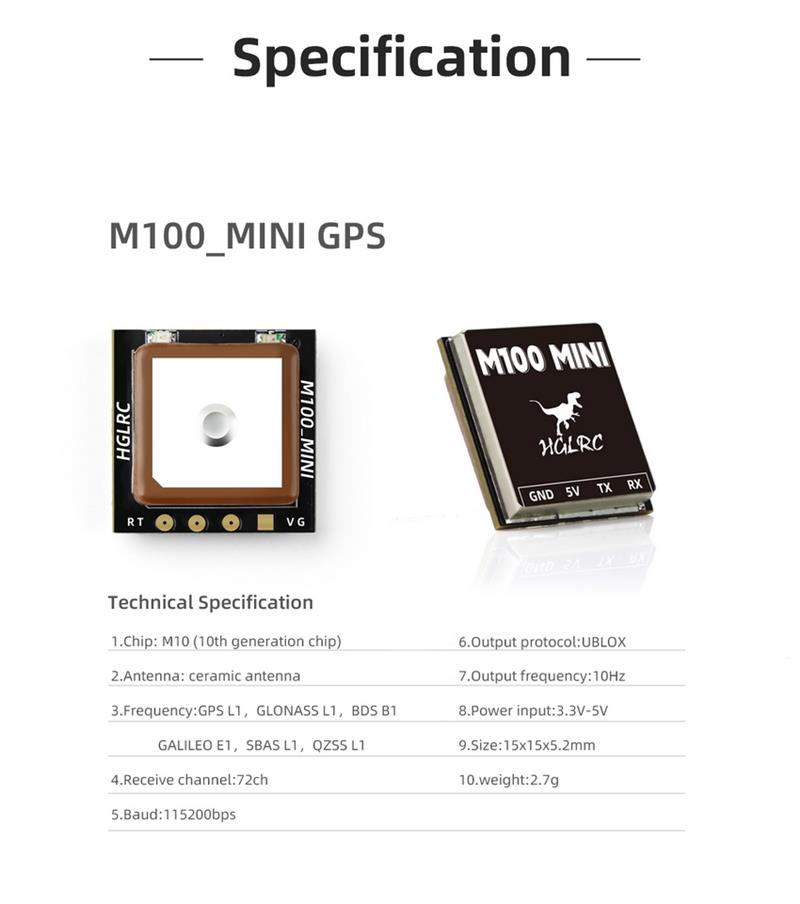

Specifications:
Chip:M10(10th Generation Chip)
Antenna:Ceramic Antenna
Frequency:GPS L1??GLONASS L1??BDS B1??GALILEO E1??SBAS L1??OZSS L1
Receive Channel:72ch
Baud Rate:115200bps
Output Protocol:UBLOX
Output Frequency:10Hz
Input:3.3V-5V
Size:15x15x5.2mm
Weight:2.6g
Speed Accuracy:0.05m/s
Horizontal positioning accuracy:2D ACC2.0m(Outdoor)
Receiver Sensitivity:Trace -166dBm
Capture -160dBm
Characteristics:High:50000m??
Speed:500m/s??
acceleration 4G
Operating temperature:-40ɳC – +85ɳC
Storage temperature:-40ɳC – +105ɳC
Package Included:
1* HGLRC M100 MINI GPS Module
