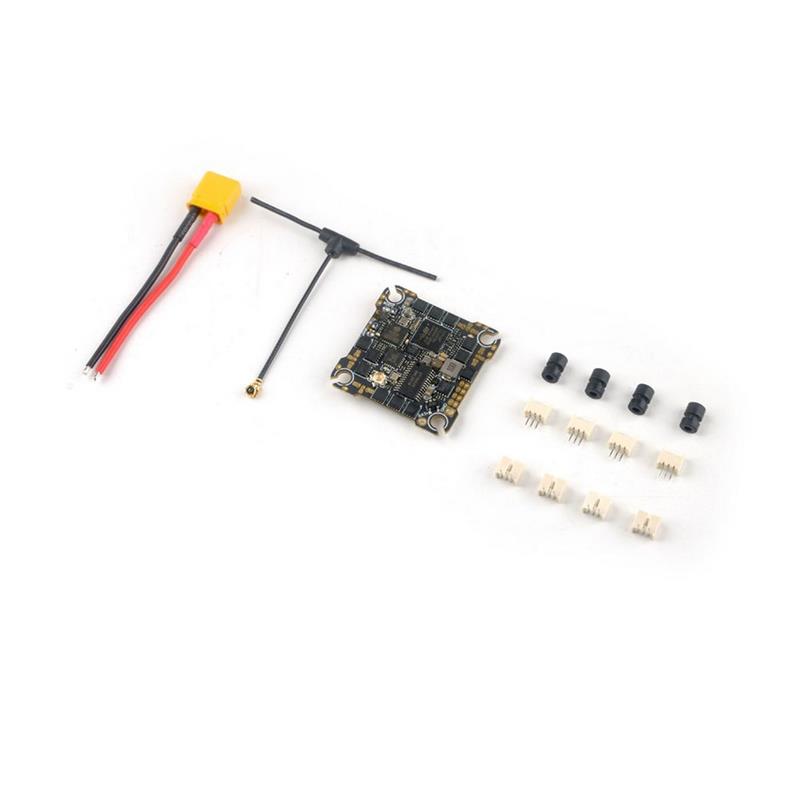

Happymodel CrazyF411 ELRS AIO 4in1 Flight Controller Built-in UART 2.4G ELRS Receiver 20A ESC for Crux35 Toothpick FPV Racing Drone
Introduction:
The CrazyF411 ELRS flight controller comes with integrated UART 2.4GHz ExpressLRS receiver and 20A Blheli_s ESC(Bluejay firmware pre-installed) which could support 2-4s. Bigger Mosfet could support high to 20A currents would be better for 2-4S toothpick drone or long range FPV drone. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. The built-in ELRS receiver is UART communication with MCU, it٬s the same like Happymodel EP1 which you can update firmware by betaflight pass-through or WIFI, very simple. The default firmware is ELRS V3.0.1. This flight controller would be used for Crux35 to instead ELRS X1 flight controller.
Specification:
Brand:Happymodel
Model:CrazyF411 ELRS
Item Name:F4 Flight Controller AIO 20A ESC UART 2.4G ELRS Receiver
Mount pattern:25.5?25.5 M2
Size:32*28*9mm
| Flight Controller | MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor:ICM42688P or BMI270 (SPI Control) Power supply:2-4S Lipo battery Built-in 20A Blheli_s ESC each Built-in Betaflight OSD(SPI Control) Built-in UART ExpressLRS 2.4GHz receiver Built-in 5V 1.5A BEC Flight controller firmware target:CRAZYBEEF4DX |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply:2-4S LiPo/LiPo HV (7v/17v) Currents:20A continuous peak 25A (5 seconds) Support BLHeliSuite programmable Factory firmware:Bluejay 0.18.1Firmware target:F_H_40_48_v0.18.1 Default protocol:DSHOT150/DSHOT300/DSHOT600 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option:25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency:2.4GHzAntenna plug:IPEX Telemetry output Power:<12dBm Receiver protocol:CRSF Default firmware version:ExpressLRS V3.0.1 |
| Onboard voltage and Amperage meters settings | Voltage meter scale setting 110 Amperage meter scale setting 470 |
Binding procedure:
1. Supply power to the flight controller by plug USB, wait until the green LED on the FC is off, immediately turn off the power, and then repeat again the above steps. When the FC is powered on for the third time, the green LED light will start to double-flash, which means that the RX enters the binding mode
2. Please make sure your ExpressLRS tx module firmware is v3.x.x. And go to ExpressLRS.lua from ??TOOLS?? menu of your radio transmitter. Then hit [Bind] to binding with the onboard ExpressLRS receiver. The green LED should blinking slowly first then turn to solid, that means binding was successfully. If the green led still keep double flash after binding ,please change Model Match tab value from ??off?? to ??on?? or from ??on?? to ??off??
Receiver LED status meanings:
Green LED solid means bind successful or RC link established; Green LED double-flash means get into bind mode; Green LED flash slowly means no RC signal input from TX module; Green LED continuous flash fast means ExpressLRS wifi enabled.
Bind successful
Bind mode
No RC Input
Wifi mode
