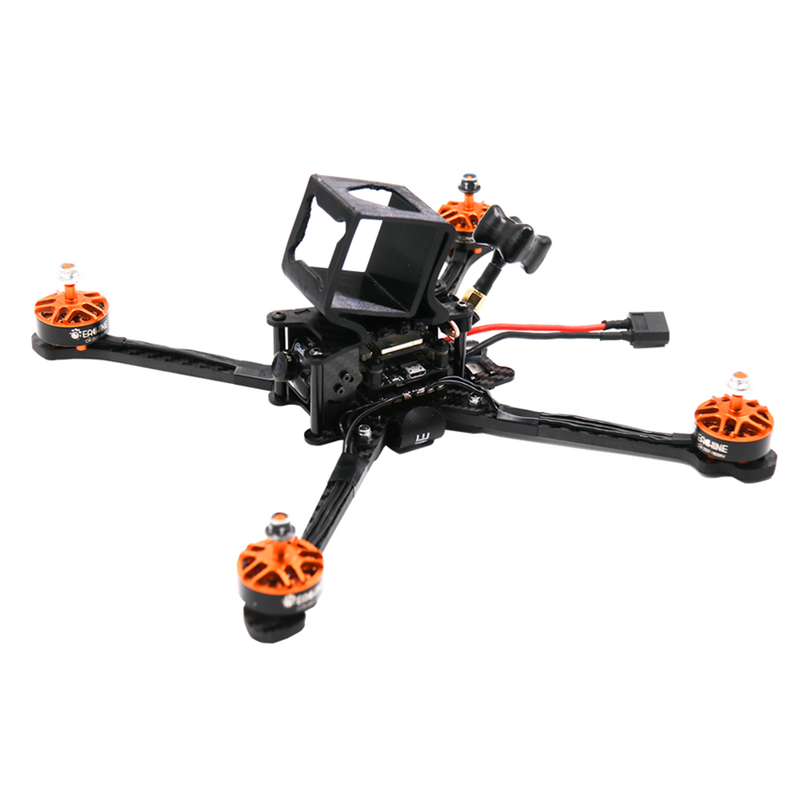

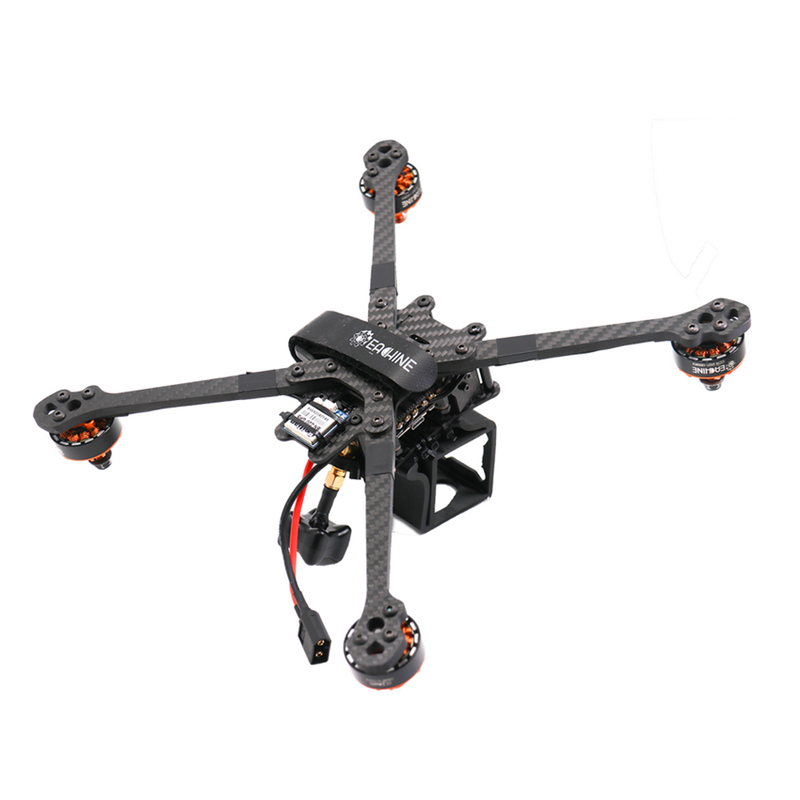

Eachine Tyro129 280mm F4 OSD DIY 7 Inch FPV Racing Drone PNP w/ GPS Runcam Nano 2 FPV Camera Payload 2KG
Notice:It comes unassembled. Need build by youself.
Specification:( Manual)
Brand Name:Eachine
Model:Tyro129
Item Name:280mm F4 OSD DIY Version 7 Inch FPV Racing Drone
Version:PNP ( Without Receiver, Battery , Radio Transmitter)
| Item | Specification |
| 280mm Racing Frame Kit | Wheel base:280mm Frame arm thickness:5mm Upper plate thickness:2mm Bottom Plate Thickness:2mm Side plate thickness:1.5mm Frame kit material:3K carbon fiber |
| 2507 1800KV 3-6S Brushless Motor | KV:1800KV Lipo cell:3-6S Weight:39g Motor Resistance:0.0586?? Maximum pull:1488g (4S 7inch propeller) Maximum power:840W Configu-ration:12N/14P Motor Stator Diameter:25mm Motor Stator Thickness:7mm Motor Diameter:30.8mm Motor Length:20mm Whole shaft length:35mm Mounting holes distance:16*16mm Mounting holes:??M3 Recommend propeller:6-7 inch |
| Eachine 4In1 40A BLHeli_S ESC | Continuous current:40A Burst current:45A (10S) BEC output:5V @ 2A Input voltage:2-6S Main control chip:48mhz EFM8BB2 Firmware upgrade:Supports Dshot150-600/Multishot/Oneshot/PWM MOS:5X6 Current Sensor:NO Size:37.5×37.5mm Mounting Hole:30.5×30.5mm Weight:15g |
| F4 Flight Controller | Same as Tyro109 Flight Controller Brand name:Eachine Item name:F4 flight controller Main control chip:STM32F405 MPU:BMI270 Or MPU6500 Barometer:NO Power supply:5V Integrated OSD PID cycle rate & gyro refresh rate up to 32Khz Supports BetaFlight / inva racing firmware |
| Runcam Nano 2 FPV Camera | Image Sensor:1/3′ CMOS Horizontal Resolution:700TVL Power:DC 3-5.5V Signal System:NTSC 4:3 Current:110mA@5V 120mA@3.3V Net Weight:3.2g Dimensions:L14mm*W14mm*H16mm |
| XF5804PRO VTX | Input voltage:7-26V Onboard BEC output:5V Number of launch channels:40 Transmit power:25/100/200/600mW Video format:PAL/NTSC Operating temperature: Control Protocol:TBS SmarAudio Antenna Connector:MMCX Wiring method:SH1.0-6P/pad Mounting hole:30.5*30.5mm Size:36*36mm |
| Eachine BN-220 GPS Module | Brand Name:Eachine Model:BN-220 Item Name:BN-220 GPS+GLONASS Dual GPS module – Built-in FLASH, TTL Data Protocol:NMEA-0183 Output Rate:9600bps, 1HZ Size:22mm*20mm*6mm 1.TX LED:blue.The data output, TX LED flashing 2.PPS LED:red.PPS LED not bright when GPS not fixed, flashing when fixed |
| DALProp & Racerstar T7056C 3-blade propeller |
Brand Name:DALProp Model:CYCLONE T7056C Material:PC Mounting hole:5mm Color:Transparent White + Transparent Blue Quantity:4 pairs ( Per Color 2 Pairs ) Prop Spiral Diameter:177.8mm Hub Thickness:8.26mm Weight:7.5g/ PC |
| Recommend Lipo Battery ( NOT Included) | 5S 1600-2200mAh 50-85C Lipo Battery |
Click here to download the Preset CLI
Package Included:
1x Tyro129 DIY Drone PNP
Additional information
| Weight | 0.643 kg |
|---|
