ANENG SZ01 6000 Counts Auto Range True RMS Digital Multimeter High Precision Resistance Frequency Tester
Description:
Automatic selection of measuring function and range.
Full range overload protection.
Automatic shutdown timer:15 minutes
Sampling time:about 3 times/second
| Model | SZ02 | SZ01 |
| AC Current | 999.9mA/10A | 600.0mA/10A |
| DC Current | 999.9mA/10A | 600.0mA/10A |
| DC Voltage | 600.0mV/9.999V/99.99V/999.9V | 600.0mV/6.000V/60.00V/600.0V |
| AC Voltage | 600.0mV/9.999V/99.99V/999.9V | 600.0mV/6.000V/60.00V/600.0V |
| Line on-off Test | 1?? | 1?? |
| Resistance | 999.9??/9.999k??/99.99k??/ 999.9k??/9.999M??/99.99M?? |
600.0??/6.000k??/60.00k??/ 600.0k??/6.000M??/60.00M?? |
| Diode Test | 1V | 1V |
| Capacitor | 9.999nF999.9nF/9.999uF/ 99.99uF/999.9uF/9.999mF/99.99mF |
|

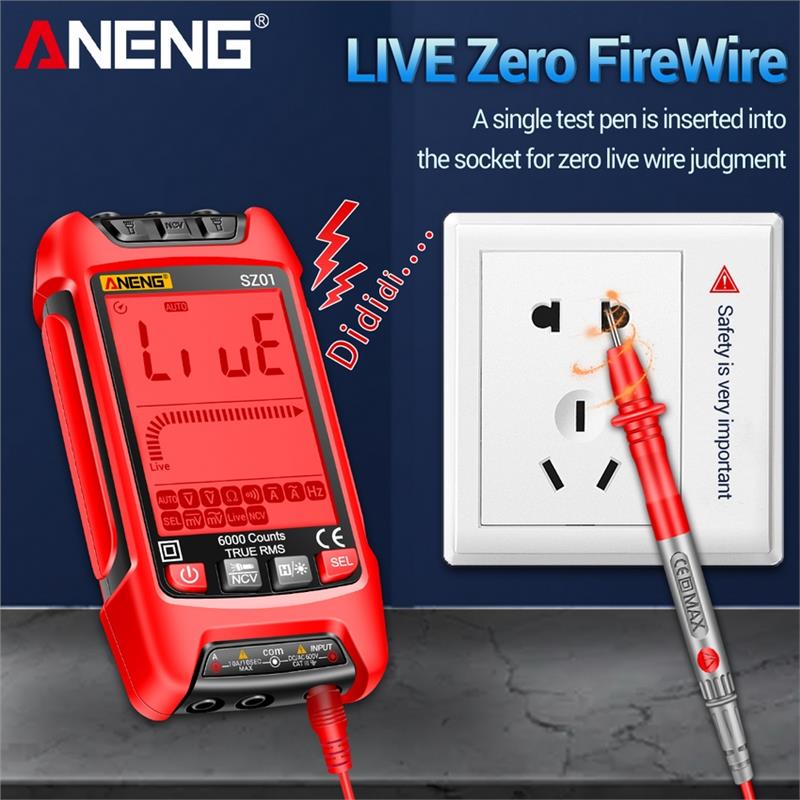

| NCV | YES | YES |
| Temperature | -40~1000/span> | NO |
| -40~1832/span> | NO | |
| Frequency | 100Hz/1000Hz | 100Hz/1000Hz |
| Backlight | yes | yes |
Packing includes:
1 x SZ01 Multimeter (Batteries not included)
2 x Test Leads
1 x User Manual
1 x Packing Box
Additional information
| Weight | 0.225 kg |
|---|---|
| Color: No selection | Red, Yellow |
