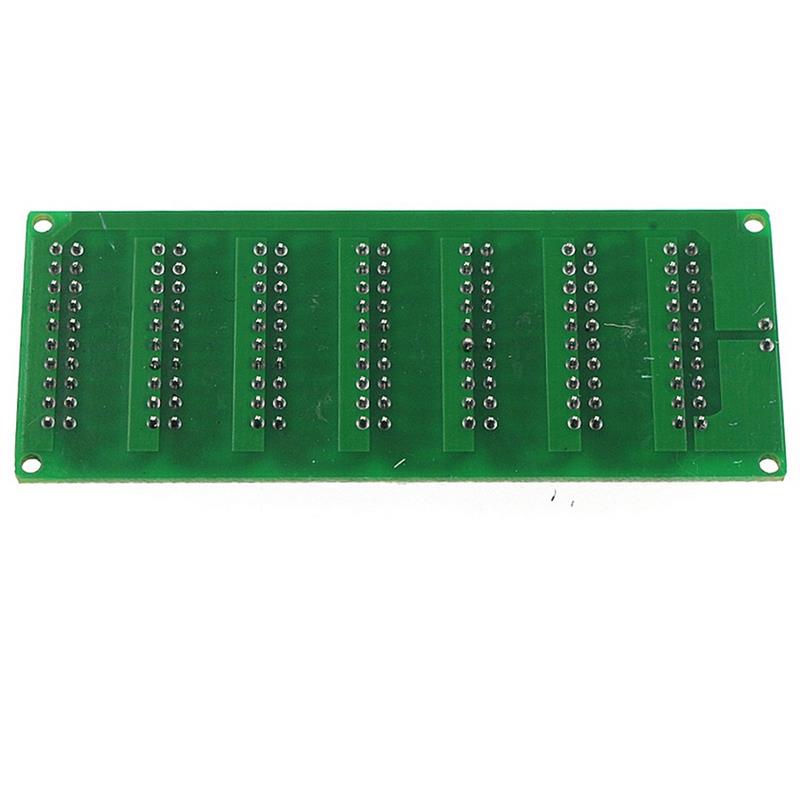

1R-9999999R Programmable Resistance Board Module 1/2W 1% Accuracy 1R Seven Decade Resistor Board
Description:
This is ‘resistance substitution box’ good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. For educational experiments, electronic engineering design or test trimming are excellent applications.
Specifications:
Product Name:Programmable Resistance Board
Programmable Resistance:0 to 9,999,999 ohm, 1 ohm per step.
Resistance Tolerance:+/-1%
Rated Power:1/2 Watt.
Max. Working Voltage:200V.
Features:
1. Design based on ‘resistors series’ theorem.
2. 1/2 watt tolerance +/-1% SMD resistors.
3. High quality FR4 glass fiber PCB.
4. With spare parts 7 pieces jumper caps
Package Include:
1??1R-9999999R Seven Decade Programmable Resistance Board
Additional information
Weight | 0.022 kg |
---|
