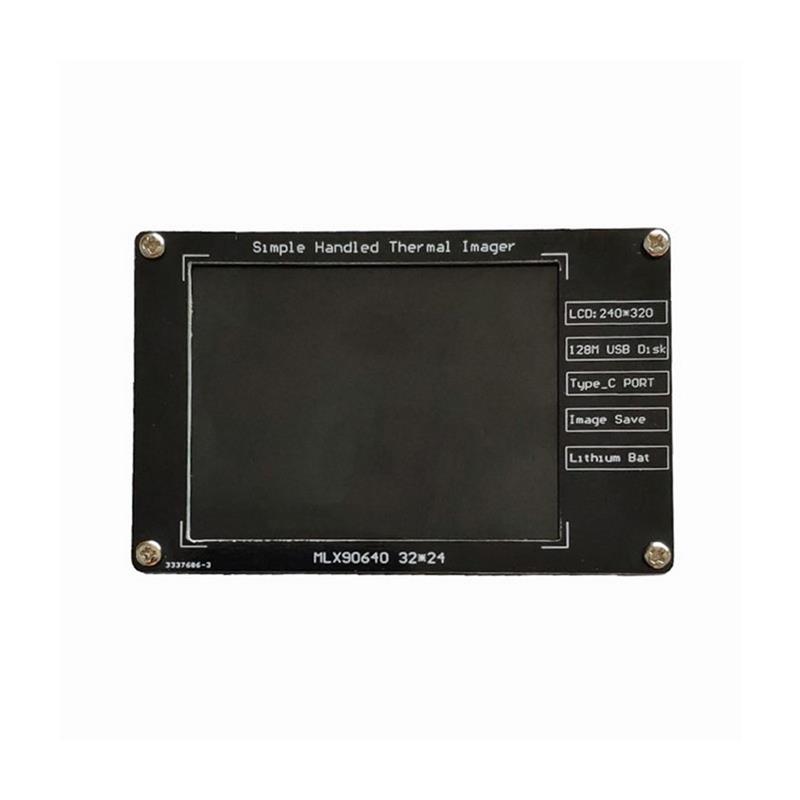

Thermal Imager DIY Rechargeable Infrared Imaging Camera MLX90640 for Electronic Maintenance Equipment Infrared Camera

SKU: HA1973535

Original price was: $146.90.Current price is: $98.59.

-33%

Color: No selection

More options

Clear

Thermal Imager DIY Rechargeable Infrared Imaging Camera MLX90640 for Electronic Maintenance Equipment Infrared Camera
Feature:
1. Handheld:This versatile thermal imager is compact and lightweight with a 3.4in TFT display for handheld use.
2. Strong Battery Life:When the thermal imager is out of power, it can be used while charging, and the battery life can be up to ten hours, which is very convenient.
3. Indispensable Tool:Thermal imaging cameras can be used in a variety of situations and are important tools for home and industry.
4. Rugged Shell:The shell of the thermal imager is made of FR4 material, which can better ensure the internal components, is not easy to damage, and has a long service life.
5. Detailed Temperature Display:The thermal imager screen can display and track maximum temperature, minimum temperature and center point temperature.
Specification:
Item Type:Thermal Imager
Material:FR4,PCB
Model:MLX90640
Battery:3.7V 1500mAh Li ion Battery (with built in battery)
Application:Electronic Maintenance Equipment
Basic Parameters:
Infrared Sensor:MLX90640ESF?CBAB
Hardware Resolution:32 x 24 far infrared array
Screen Resolution:320 x 240 pixels
Temperature Measurement Range:- 40??-300??
Measurement Accuracy:??2??
Working Temperature:0??-50??
Working Humidity:??70%
Refresh Rate:8Hz
Field of View:horizontal 55?? x vertical 35??
Emissivity:0.95
Package includes:
1 x Thermal Imager
Note:
This device is powered by a 3.7V lithium battery. It is recommended to keep the battery power display at about 50% before long term non use to avoid overcharging and overdischarging to prolong battery life.
How to use:
Photo:In the power on state, single press the photo or reset button to save the current image.
View or Copy Pictures:After connecting to the computer through the USB C data cable, press the mode switch button to switch to the U disk mode, and then the pictures can be read or copied.
Reset:The body can store 100 images. When the storage space is full, long press the photo or reset button and release when the screen flashes. The device will reset and return to its original state after about 30 seconds.
