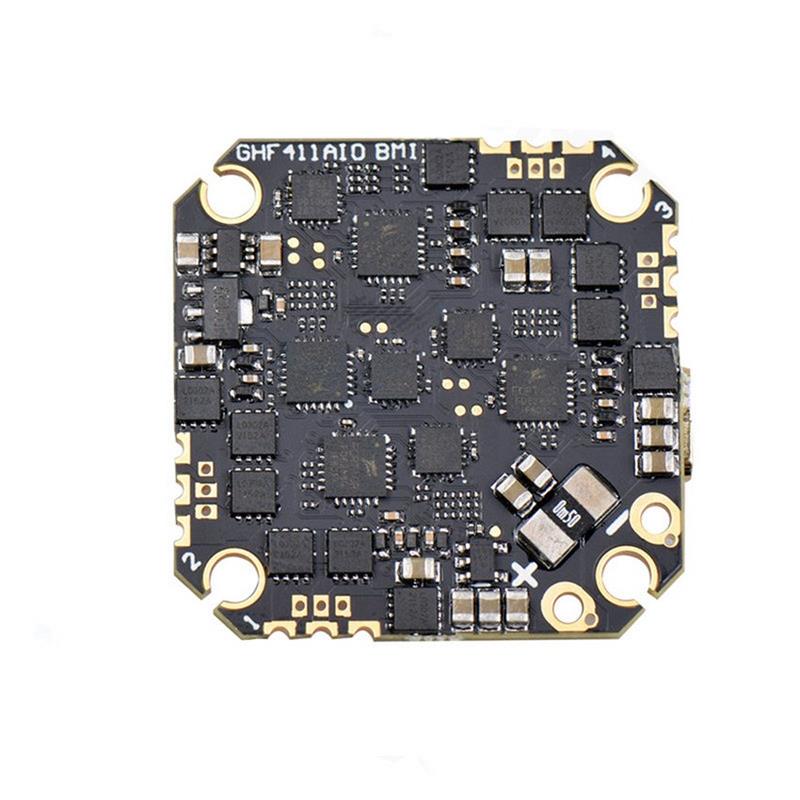

25.5×25.5mm GHF411AIO BMI F4 OSD Blackbox Flight Controller with 5V 10V BEC AIO 40A BLheli_S 4In1 ESC Support Analog Digital HD VTX for RC Drone FPV Racing
Notice:
The BMI270 Gyro change into ICM42688, more stable.
Specification:( Diagram Picure Link)
Brand:JHEMCU
Model:GHF411AIO BMI
Item Name:F4 Flight Controller AIO 40A ESC
Mounting Hole:25.5×25.5mm
Dimension:33x33mm
Weight:7.6g
| Flight Controller | MCU:STM32F411CEU / 100MHz IMU:ICM42688/ Gyro/ Accel OSD:AT7456E Baro:NO Input Voltage:2-6S Lipo ( 7.4-26V) Blackbox:8MB BEC:5V 2.5A (+-0.1V), 10V 2A (+-0.1V) Firmware:betaflight_4.3.0 JHEF411.HEX HD VTX Port:NO UART:UART1, UART2 IIC:IIC1 LED Strip:Support Buzzer:Yes, support 5V Positive USB:Micro USB Current Port:Yes Voltage Sensor:Yes DFU Botton:Yes Receiver:Support SBUS/IBUS/DSM2/DSMX/TBS/ELRS |
| Onboard ESC | Con. Current:40A MCU:EFM8BB21F16G Type:BLHeli_S Current Sensor:Yes Firmware:G_H_30_REV16_7.HEX Support 48K /96K Firmware:Need flash by buyers ownselves |
Package Included:
1x JHEMCU GHF411AIO BMI Board
4x Anti-Vibration Balls M2x6.5
1x Capacitor
1x XT60
1x Set of Cable
Additional information
| Weight | 0.041 kg |
|---|
