BSIDE 2.4″ LCD Voltage Detector Non-contact Circuit Volt Tester Pen Voltmeter NCV Socket Live Wire Check Hz Ohm Continuity

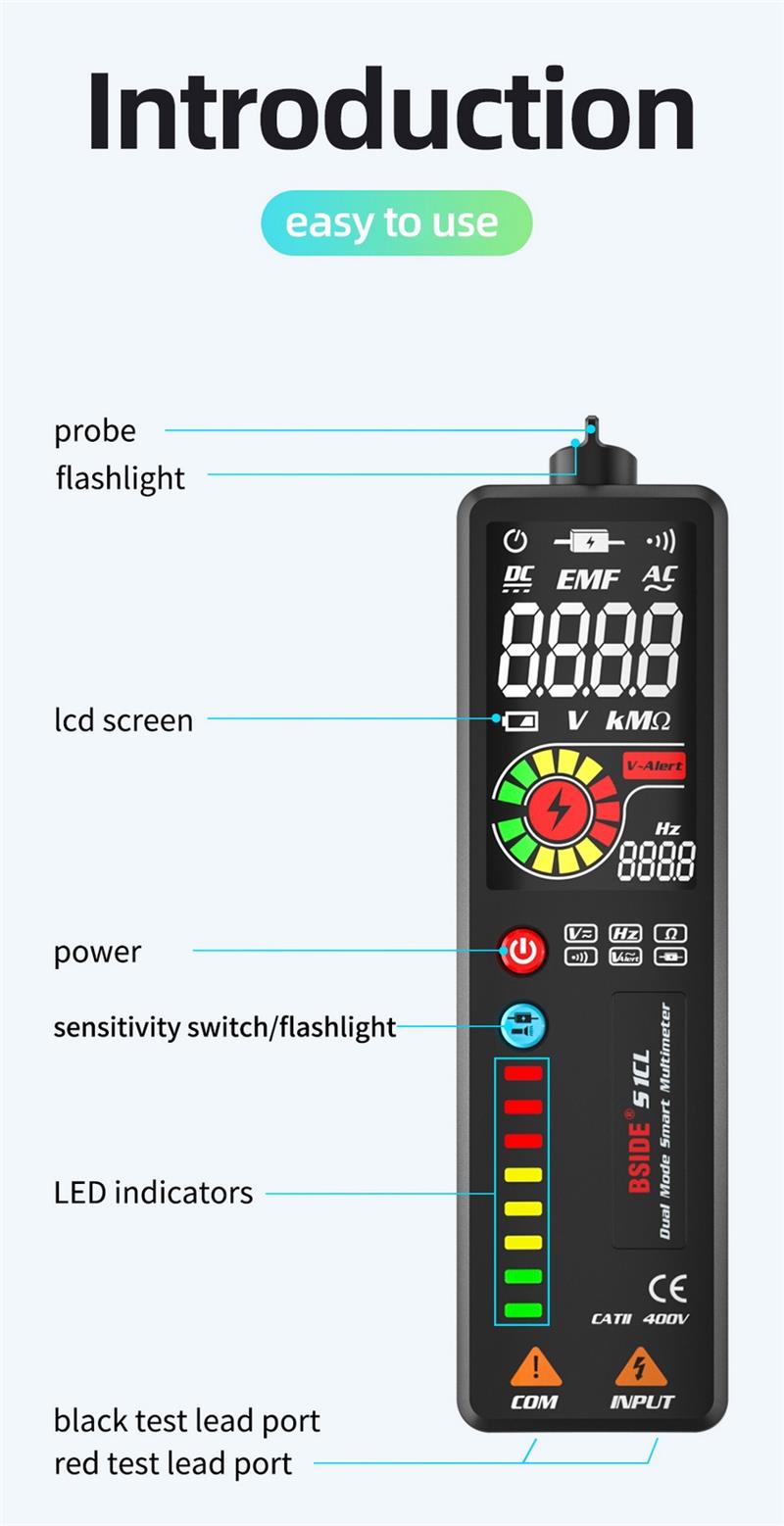

Features:
[3-Results Display]:High resolution large screen triple line display can show 3 test results on the screen, the voltage, frequency and analog bar.
[8 LED Indicators]:8 LED Indicators in 3 color make it very easy to judge the detected voltage strength.
[Sensitivity Adjustable]:Adjustable sensitivity makes measurement more convenient, when adjusting to low sensitivity, it can more accurately distinguish the specific situation in complex lines.
[Integrated Multimeter]:Voltage detector integrated multimeter design not only greatly expands the testing applications, but also let you not worry the multimeter consume too much space.
[Automatic Identification]:Automatic identification greatly improves your test efficiency. BSIDE smart technology make this multimeter can automatically identifies the tested parameters and choose their required range.
Specifications:
Display:2000 counts
Screen:2.4 inch
DC Voltage:500V 0.1V ??(0.8%+3)
AC Voltage:500V 0.1V ??(1.2%+5)
Resistance:10M?? 1?? ??(1.2%+3)
Frequency:1000Hz 0.1Hz ??(2.0%+3)
Continuity:If the resistance less than 30??, the beeper sounds
V-Alert (Non-contact Voltage Detection):Yes
Power:1.5V (AAA) x 1
Size:150*41*18mm
Weight:65g
Note:the batteries are not included in the package due to Aviation Security Check. Sorry for any inconvenience caused.
Package Includes:
1 x ADMS1 /ADMS1CL Smart Voltage Detector (optional)
1 x Test Leads
1 x Nylon Lanyard
1 x User Manual
Additional information
Weight | 0.158 kg |
---|---|
Choose: No selection | ADMS1, ADMS1CL |
