FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank tester With PC Software

FNIRSI-C1 Type-C PD Trigger USB-C Voltmeter Ammeter Fast Charging Protocol Test Type-C Meter Power Bank tester With PC Software
FNIRSI-C1 Voltmeter AmmeterType-C PD Trigger Digital Multimeter
Product Data Download/b>
FNIRSI-C1 Product Manual/span>https://www.mediafire.com/file/ju57qo52v3tx3nf/FNIRSI-C1_Product_Manual_v1.0.docx/file
FNIRSI UsbMeter PC Software/span>https://www.mediafire.com/file/i9cw11iu5zaucea/FNIRSI_UsbMeter_PC_Software_V0_0_4.rar/file
FNIRSI UsbMeter PC Software Manual /span>https://www.mediafire.com/file/fuqw55k572ti94q/FNIRSI_UsbMeter_PC_Software_Manual-EN-V0.1.docx/file
FNIRSI-C1 Bluetooth APP /span>https://www.mediafire.com/file/wtg9tez17iyutrw/FNIRSI-C1_Bluetooth_APP_%25C3%25AF%25C2%25BC_Android%25C3%25AF%25C2%25BC__v1.0.apk/file
FNIRSI-C1 Firmware-v0.70/span>https://www.mediafire.com/file/6t34k5gbf7kbhkc/FNIRSI-C1_Firmware_V0.70.rar/file
Description:
Small & Portable Type-C multi-function tester, smaller than 2 fingers, easy to carry.
FNIRSI-C1 has dual Type-C interfaces, direct input eliminates the need for test wires, test cost and performance are significantly improved, support 6.5A high current test, long-term stable work!

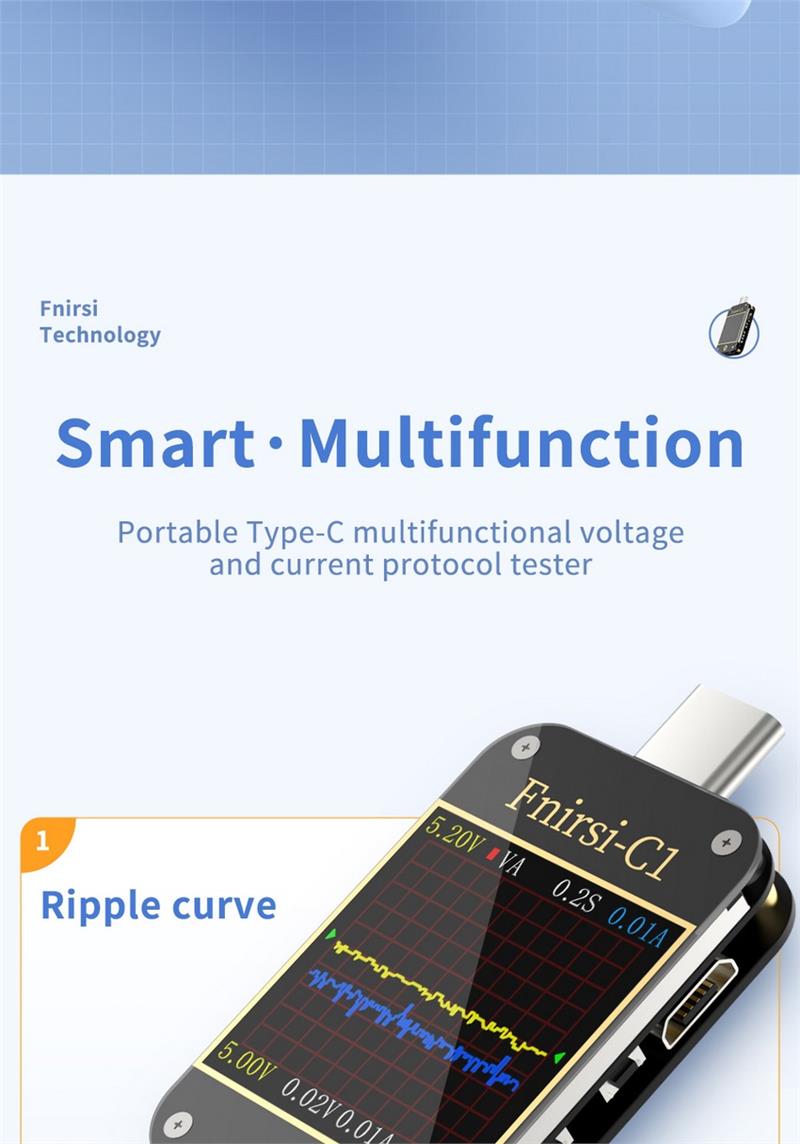

Support all mainstream protocol detection & triggering/wave curve/line resistance measurement/low internal resistance/drive-free PC upgrade, etc.
Support real-time charging voltage, current and power detection, multi-interface display, multi-data measurement.

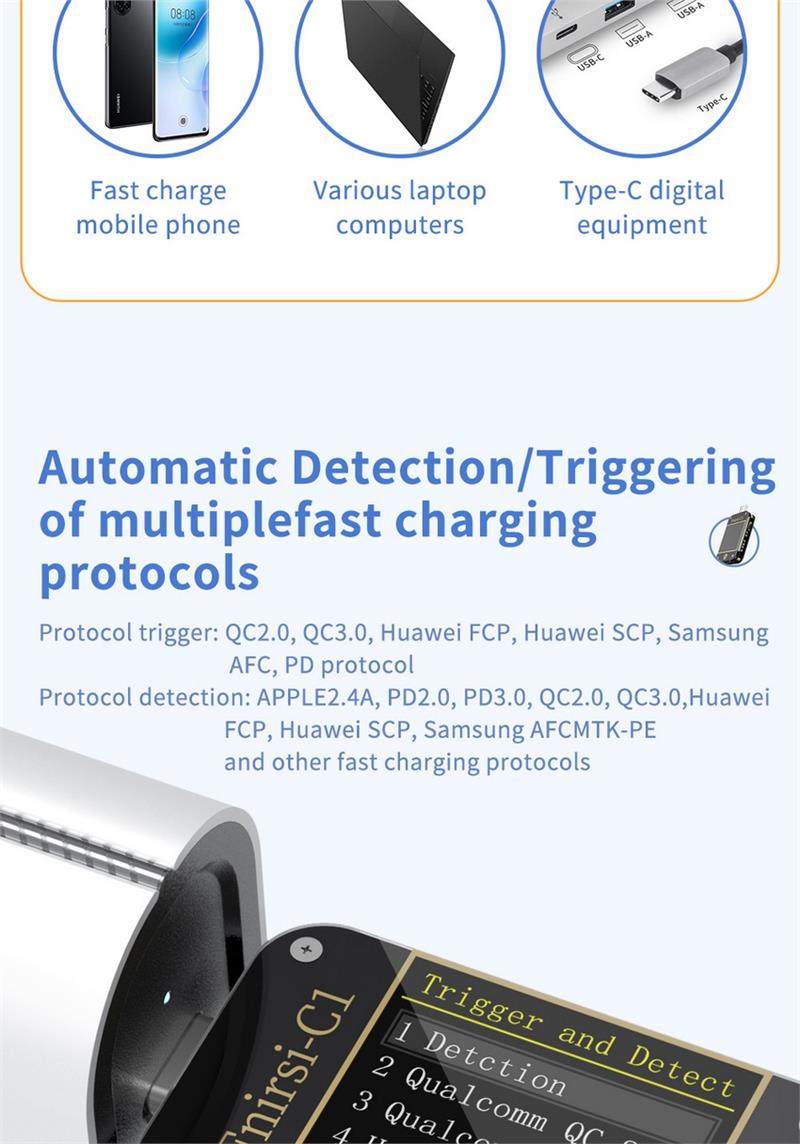

Automatic detection/triggering of multiple fast charging protocols:
Protocol trigger:QC2.0, QC3.0, Huawei FCP, Huawei SCP, PD protocol
Protocol detection:APPLE2.4A, QC2.0, QC3.0, Huawei FCP, Huawei SCP and other fast charging protocols
Specifications:
Monitoring voltage:4~24V
Monitor voltage resolution:0.00001V
Monitoring voltage accuracy:??(0.22)
Monitoring current:0~6.5A
Display current resolution:0.00001A
Monitoring current accuracy:??(0.52)
Display power:0~130W
Display current resolution:0.00001W
Monitoring current accuracy:??(0.52)
Load equivalent resistance:0~9999.9??
Load equivalent resistance resolution:0.0001??
Load equivalent resistance accuracy:??(0.52)
Capacity:0~9999.99Ah
Use energy:0~9999.99Wh
Cable resistance:0~9999.9??
D+/D- voltage:0~3.3V
D+/D- voltage resolution:0.001V
D+/D- voltage accuracy:??(1.0%+2)
Equipment temperature:/span>
Package size:50*25*8mm / 1.97* 0.98 * 0.31in
Package weight:47g / 1.66oz
Compatibility Issues/b>
?There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.
?There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
?If you don’t test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
?Please do install and test the APP if you use mobile phone.
Package includes/b>
1 x FNIRSI-C1
1 x Package case
