Active Equalizer Balancer 13-17S Capacitive Li-ion Lifepo4 LTO Battery Equalizer Energy Transfer
Feature:

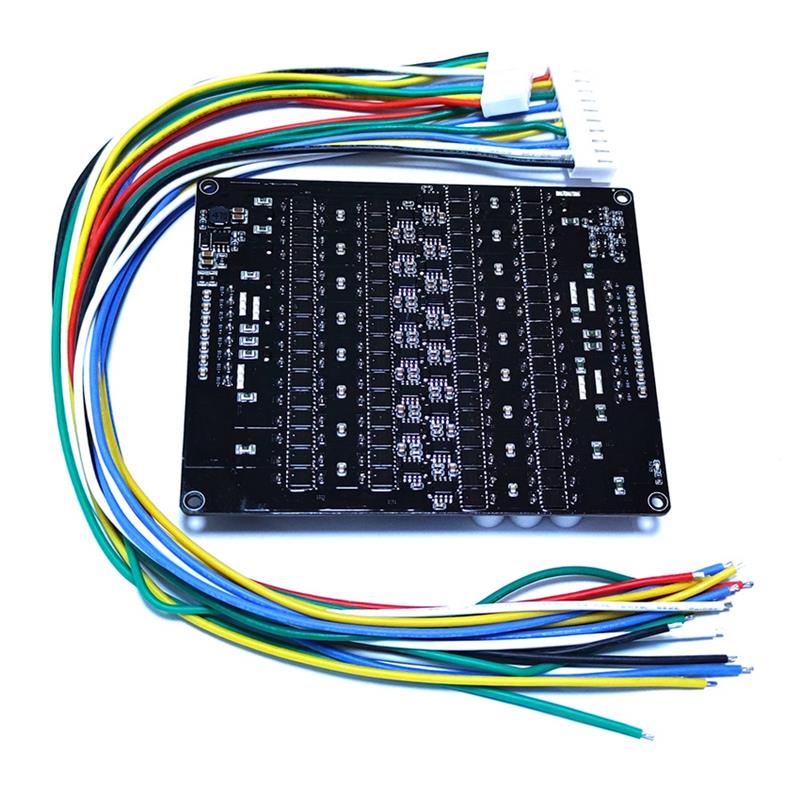

Li-ion/Lifepo4/Lipo 16S Capacitive Active Balancer Board
Applicable battery type:NCM/LFP/LTO
Working range of single voltage:NCM/LFP:2.7-4.2V LTO:1.8-4.2V
Balanced method:The whole battery pack participates in the active balance of energy transfer at the same time
Static working current(mA):17mA
Under voltage protection sleep voltage:NCM/LFP:??2.7V LTO:??1.8V
Working temperature:-10~+60 ??
External power:No need for external power supply, relying on the internal energy transfer of the battery to achieve the balance of the whole group
| Technical Index | Technical parameters of Fit Capacitor Balancing Board (VH3 96 connector version) | |||||||||
| 3S | 4S | 4-5S | 4??S | 5-7S | 6-8S | 9-14S | 12-16S | 13-17S (this item) | 17-21S | |
| Applicable Battery Type | 3S Li-ion/Lifepo4 | 3/4S | 4/5S | 4/5/6 S | 5/6/7 S | 6/7/8S | 9/10/11/ 12/13/14S |
12/13/14 /15/16S |
13/14/1S /16/17S |
17/18/19 /20/21S |
| Li-ion/Lifepo4 | Li-ion/Lifepo4/LTO | |||||||||
| Operating voltaqe ranqe | Li-iorVLifepo4:2 74 2V LTO:18-4 2V | |||||||||
| Voltage equalization accuracy | 5mV (typical value) | |||||||||
| Balanced Principle | The patented equalization architecture capacitive mode, the whole battery group simultaneously participates in the energy transfer active equalization | |||||||||
| Equalizing Current | 0.08V differential pressure 1A equalization current, the differential pressure is directly proportional to the equalization current, the maximum allowable working current is 60A | |||||||||
| Undervoltage Protection Steep Voltage | Li-ion/Lifepo4 < 2.7V LTO <1.8V | |||||||||
| Static Operating Current | 9mA | 9mA | 7 mA | 7 mA | 7 mA | 7mA | 15mA | 15mA | 17mA | 16mA |
| Size(MM) L*W*T | 66*35*16 | 66*46*16 | 69*58*16 | 69*69*16 | 80*69.5*16 | 91*70*16 | 125*80*16 | 125*91*16 | 115*102 5*16 | 145*130*18 |
| Operating Ambient Temperature | -10?? to 60?? | |||||||||
| Manner of Working | No external power supply, relying on the battery internal energy transfer to achieve the balance of the whole group |
Package includes:
1 x Li-ion/Lifepo4/Lipo Capacitive Active Balancer Board
Additional information
| Weight | 0.267 kg |
|---|
