[EU/US Direct] MINGDA Magician X 3D Printer 230x230x260mm Printing Size Support One Touch Smart Auto Leveling with TMC Silent Motherboard

[EU/US Direct] MINGDA Magician X 3D Printer 230x230x260mm Printing Size Support One Touch Smart Auto Leveling with TMC Silent Motherboard
Warm Tips:Delays in product delivery.
Introduction:
MINGDA Magician X–Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures more accurate and silent printing.
Important Fuction:
Innovator of Auto-Leveling
Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,one- touch leveling and 16-point precise leveling.

Ready to Print
Integrated structure and modular design, one step assemble, ready to print

Glass Heat Bed
The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.

Cooling Fans
The printing head adopts fan, cools down models rapidly. The printing speed is faster which can reach 100mm/s.

Double Gears Direct Extrusion
Conveying material uniform without winding

Automatic Filament Detection
Broken material can be automatically detected

Multi Connection
Support SD card, USB and USB-C, supports online printing

Patented Dual Z-Axis with Synchronous Belt
Ensure the accuracy of the print head in the X-axis direction

Build-in Tool Box:Convenient after using the tool

3.5′ large touch screen
The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.

Stepping Drive – Ultra Quiet TMC
Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,??50dB silent printing

Newly upgraded chip of Brand core
High-speed computing; high-performance,
32-bit frequency:168M;
Cortex-M4 CPU with FPU and
DSP instruction??memory protection unit

File Download
Firmware:
/ X_GD_1.6.6.4_V22
X_ST_1.6.6.4_V22

Manual please click on it to download.

Specifications
Print Technology:FDM ( Fused Deposition Modeling)

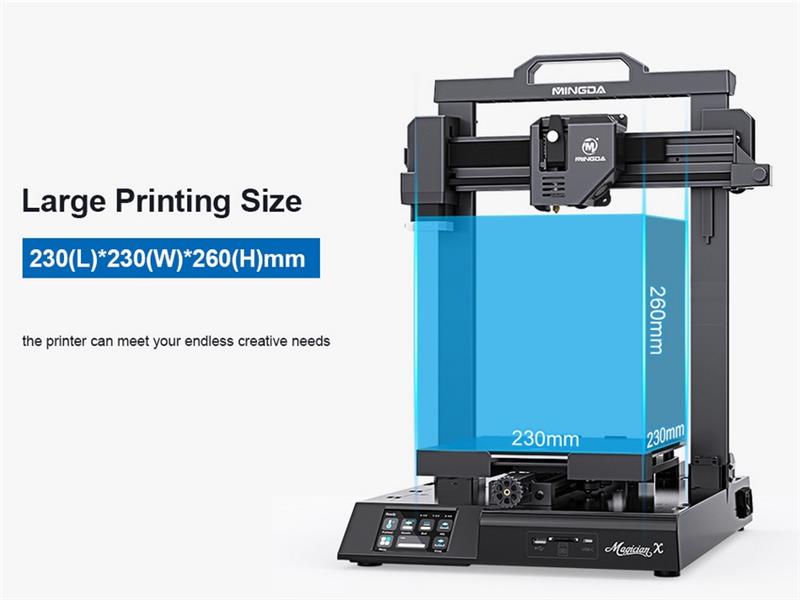

Build Volume:230(L)*230(W)*260(H)mm
Print Resolution:?? 0.1mm
Positioning Accuracy:X/Y 0.0125mm, Z 0.002mm
Nozzle Number:Single
Nozzle Diameter:0.4mm
Print Speed:<200mm/s (recommended 60 – 80mm/s)
Support Filaments:PLA, TPU, ABS
Slicing Software:Cura
Input Formats:.STL, .OBJ, .AMF
Output Formats:GCODE
Connection Mode:SD Card, U Disk, USB-C
Input voltage:100/240 V AC, 50/60Hz
Output voltage:24V (350W)
Ambient operating Temperature:5?? – 40??
Operational Nozzle Temperature:max ??260??
Operational Hot Bed Temperature:max ??110??
Machine Size:460mm*415mm*546mm
Machine Weight:~7.4kg

Additional information
